| Place of Origin | China |
| Brand Name | Mistubishi |

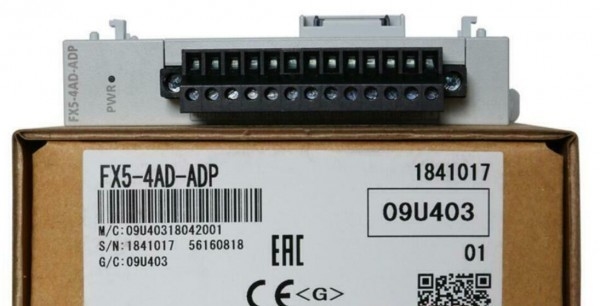

| Model Number | FX5-4AD-ADP |
| Series | MELSEC IQ-F SERIES |
|---|---|
| Type | ANALOG INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Integrated Analogue Inputs | 4 |
| Input Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Input Current Range (mA) | -20-20; 0-20; 4-20 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Width (mm) | 17,6 |
|---|---|
| Height (mm) | 106 |
| Depth (mm) | 89,1 |
| Weight (kg) | 0,1 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| UKCA | COMPLIANT |
