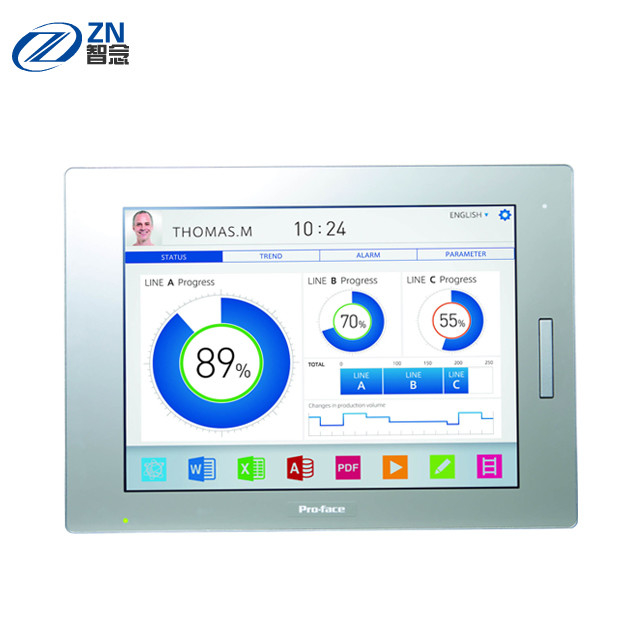

PFXGP4402WADW Proface HMI 7 Inch LED Backlight Touch Screen
  • PFXGP4402WADW Proface HMI 7 Inch LED Backlight Touch Screen
  • PFXGP4402WADW Proface HMI 7 Inch LED Backlight Touch Screen
  • PFXGP4402WADW Proface HMI 7 Inch LED Backlight Touch Screen
  • PFXGP4402WADW Proface HMI 7 Inch LED Backlight Touch Screen
  • PFXGP4402WADW Proface HMI 7 Inch LED Backlight Touch Screen
PFXGP4402WADW Proface HMI 7 Inch LED Backlight Touch Screen

PFXGP4402WADW Proface HMI 7 Inch LED Backlight Touch Screen

Place of Origin China/Japan
Brand Name Proface
Model Number PFXGP4402WADW
Product Details
Brand:
Proface
Condition:
New
Lead Time:
Stock
MOQ:
1
Place Of Origin:
China/Japan
Currency:
USD/RMB
Warranty:
12 Month
Shipping Term:
DHL/TNT/UPS/FEDEX Etc
High Light:

PFXGP4402WADW Proface HMI

,

LED Backlight Proface HMI

,

Proface 7 Inch HMI

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
USD100-5000/pc
Packaging Details
Carton packaging
Delivery Time
3-5working days
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description
Proface Hmi 7inch PFXGP4402WADW Touch Screen
Standard product information
Family
HMI
Series
GP4000E Series
Size
7" Wide
Model
PFXGP4402WADW
Global Code
PFXGP4402WADW
Display specifications
Display type
TFT Color LCD / Resistive Film (analog)
Display size
7" Wide
Resolution
800 x 480 pixels (WVGA)
Effective display area
W154.08 x H85.92 mm [W6.066 x H3.382 in.]
Display colors
65,536 colors
Backlight
LED
Backlight service life
20,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases
to 50%)
Brightness control
8 Levels (Adjusted with touch panel)
Touch panel type
Resistive Film (analog)
Touch panel lifetime
1,000,000 times or more, Sweeping 100,000 times or more
Language fonts
ASCII: (code page 850) alphanumeric (including European characters)
Chinese (simplified): GB2312-80 codes
Japanese: ANK 158, Kanji: 6,962 (JIS standards 1 & 2) (including 607 nonkanji characters)
Korean: (KSC5601 - 1992 codes) Hangul fonts
Chinese (traditional): BIG 5 codes
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts
Font sizes
Width can be expanded 1, 2, 4, and 8 times. Height can be expanded 1/2, 1, 2, 4, and 8 times.
8 x 8 dots
40 char. x 30 rows
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows

1. To save the life of the backlight, set the panel in standby mode which automatically turns the backlight off when no touch input is



detected

 within a set time.



2. The display font differs depending on which (language) character, or which size you select. Also, if GP-Pro EX software is used, additional

high-quality fonts are available with 16 x 16 or larger characters.

Electrical specifications
Rated input voltage
24 Vdc
Allowable voltage drop
1 ms or less with lowest input voltage, 10 ms or less with rated input voltage
Power consumption
9.2 W or less
In-rush current
50 A or less
Voltage endurance
600 Vac, 20 mA for 1 minute
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

3For in-rush current, the FWHM (full-width, half maximum) value is approximately 50 μs(when exceeding 25 A).

Environmental specifications

Surrounding air temperature
0 to 50 °C [32 to 122 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN60068-2-6, 5 to 150 Hz, 3.5 mm (0.38 in) max., 1gn pm 3 axes
Concussion resistance
IEC 60068-2-27, 1/2 sinusoidal pulse for 11 ms, 15g on 3 axes
Electrostatic discharge immunity
EN/IEC 61131-2, 4 kV direct contact, 8 kV air contact
Electromagnetic compatibility (EMC)
IEC 61000 - 4 - 5, 0.5 kV (Differential Mode on power supply), 1 kV (Common Mode on power supply)
Memory
Application memory
FLASH EPROM 32 MB
Backup memory
FLASH EPROM 128 KB
Clock accuracy
Variations in operating conditions and battery life can cause a clock inaccuracy from -380 to +90 seconds
per month.

4Capacity available for user application. The capacity depends on how many fonts you load from Editor software.

Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even
or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
Serial (COM2)
Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None,
Even or Odd, Data Transmission Speed: 2,400 to 187,500 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Communication distance: 3 m [9.84 ft.] or less
USB (mini-B)
Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 3 m [9.84 ft] or less
Ethernet
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
Structural specifications
Cooling method
Natural air circulation
Structure
Front Panel: IP65 (IEC60529), Enclosure type 4 indoor use only (UL 50) with screw installation fasteners,
Rear Panel: IP20 (IEC 60529)
External dimensions
W207 x H152.4 x D38.2 mm [W8.15 x H6 x D1.5 in.]
Dimensions
External dimensions
Panel cut-out dimensions
A B C (Panel thickness) R
190 ± 1 mm
[7.48 ± 0.04 in.]		 135 ± 0.7 mm
[5.31 ± 0.03 in.]		 1 to 5 mm
[0.04 to 0.19 in.]		 3 mm
[0.12 in.] max.
External dimensions with cable
