Flexible Easyview Proface HMI Touch Screen Displays GP577R-TC41-24VP

Product Description

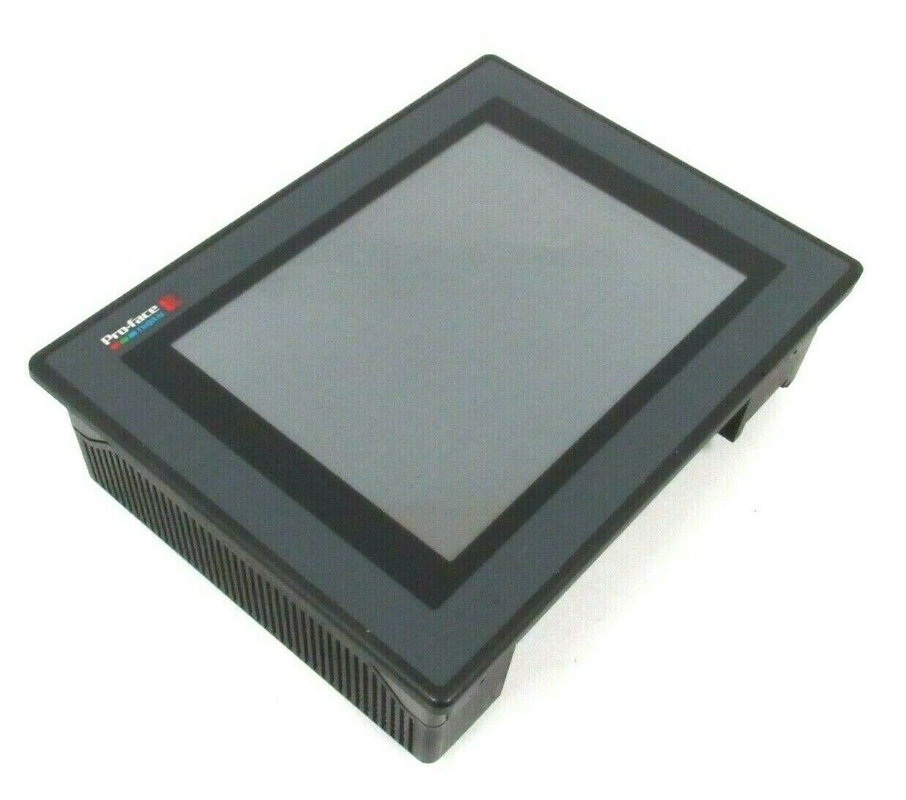

GP577R-TC41-24VP is a CE-marked and cUL compliant HMI manufactured by Pro-Face. The GP577R-TC41-24VP UL file number is 2780027-02. The GP577R-TC41-24VP uses natural air circulation to cool itself off and must be installed in an upright panel. Additionally, an open space of one hundred mm in all directions is required to allow for proper air ventilation. Unless this requirement is completed the temperature inside the GP's components may rise beyond the limit specified by the UL standards.

The rated power supply is a DC 24V plus or minus 20% with a power consumption of fifty Watts or less (TYP 20W). There is an allowable pause duration of twenty milliseconds or less. Between the live wire and grounding terminals, two measurements are taken the insulation resistance (DC 500V-above 10 M Ohms) and the voltage endurance (AC 1000V- 10mA for one minute). The GP577R-TC41-24VP rating is equivalent to IP65f (JEM 1030) and NEMA #250 TYPE4X/12. The ground for the panel is one hundred Ohms or less grounding resistance. The operating atmosphere must be free of any type of corrosive gasses and have non-condensing humidity between thirty percent PH to eighty-five percent RH. The panel can be stored between negative ten degrees Celsius to sixty degrees Celsius. However, the panel can only operate between zero degrees Celsius and forty degrees Celsius.

The GP577R-TC41-24VP has 640 x 480 pixels in the TFT type color LCD. The panel offers sixty-four colors. Pro-Face has manufactured manuals to go along with their panels. Please refer to those if you have questions.
