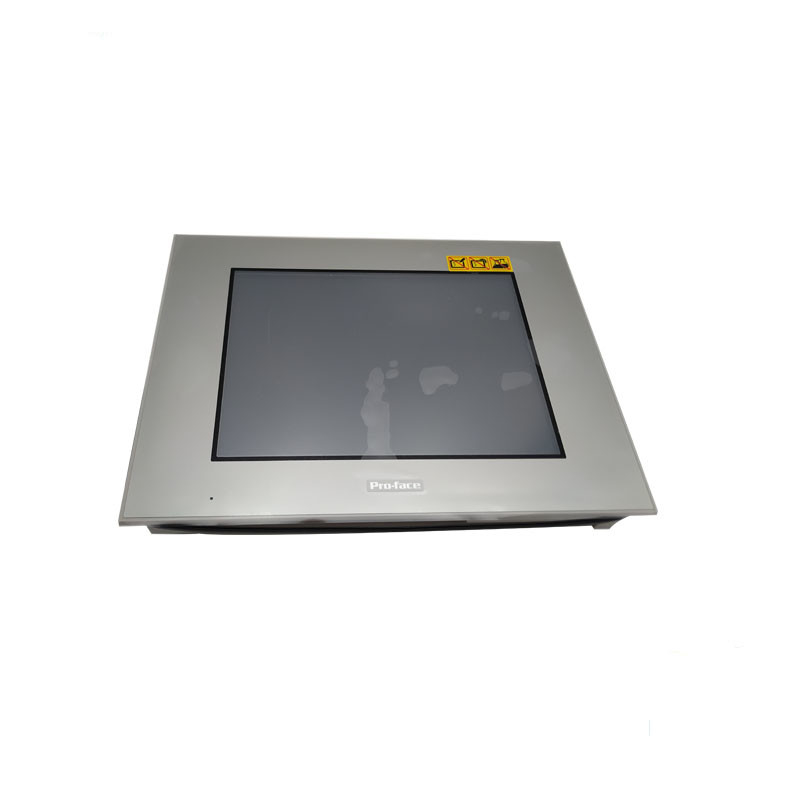

PFXGP4501TADW GP4000 Series Proface 10 Inch HMI Analog TFT LCD
  • PFXGP4501TADW GP4000 Series Proface 10 Inch HMI Analog TFT LCD
  • PFXGP4501TADW GP4000 Series Proface 10 Inch HMI Analog TFT LCD
  • PFXGP4501TADW GP4000 Series Proface 10 Inch HMI Analog TFT LCD
  • PFXGP4501TADW GP4000 Series Proface 10 Inch HMI Analog TFT LCD

PFXGP4501TADW GP4000 Series Proface 10 Inch HMI Analog TFT LCD

Place of Origin China/Japan
Brand Name Proface
Model Number PFXGP4501TADW
Product Details
Condition:
100% Original And New
Warranty:
1 Year
Payment Term:
T/T In Advance, Western Union
Package:
Original Package
Shipping Term:
DHL Fedex TNT
MOQ:
1 Piece
Packaging:
Original Cartons
Model:
PFXGP4501TADW
Product Name:
PROFACE HIM
Port:
Selectable
High Light:

GP4000 Proface 10 Inch HMI

,

TFT Proface 10 Inch HMI

,

Proface PFXGP4501TADW

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
$899- $999pieces
Packaging Details
Carton packaging
Delivery Time
4-5working days
Payment Terms
T/T, western union
Supply Ability
200 pieces per week
Product Description

PFXGP4501TADW New Pro-face HMI Touch Panel in stock

PFXGP4501TADW GP4000 Series Proface 10 Inch HMI Analog TFT LCD 0

PFXGP4501TADW GP4000 Series Proface 10 Inch HMI Analog TFT LCD 1



Functional Specifications

Display Type
TFT Color LCD
Display Size
10.4"
Resolution
640 x 480 pixels (VGA)
Effective Display Area
W211.2 x H158.4 mm [W8.31 x H6.24 in.]
Display Colors
65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight
White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control
8 Levels (Adjusted with the touch panel or the software)
Backlight Service Life
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
8 x 16 dots
80 char. x 30 rows
16 x 16 dots
40 char. x 30 rows
32 x 32 dots
20 char. x 15 rows
8 x 8 dots
80 char. x 60 rows
Program Area
FLASH EPROM 132 KB (Equivalent to 15,000 steps)*1
Variable Area
None
Application Memory
FLASH EPROM 16 MB (including a logic program area)
Data Backup
SRAM 128 KB (Replaceable Lithium battery for backup memory)
Clock Accuracy
±65 sec/month (deviation at room temperature and power is OFF)*2
Touch Panel Type
Resistive Film (analog)
Touch Panel Resolution
1,024 x 1,024
Touch Panel Service Life
1,000,000 times or more
Serial (COM1)
RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)
RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
Ethernet (LAN)
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD Card
SD Card Slot x 1
