CP1E-N30SDT-D Omron PLC CPU Unit 8K Steps Programmable Logic Controller
  • CP1E-N30SDT-D Omron PLC CPU Unit 8K Steps Programmable Logic Controller
  • CP1E-N30SDT-D Omron PLC CPU Unit 8K Steps Programmable Logic Controller
  • CP1E-N30SDT-D Omron PLC CPU Unit 8K Steps Programmable Logic Controller

CP1E-N30SDT-D Omron PLC CPU Unit 8K Steps Programmable Logic Controller

Place of Origin China/Japan
Brand Name Omron
Model Number CP1E-N30SDT-D
Product Details
Service:
One-stop Service
Package:
Original Package
Quality:
New And Original
Lead Time:
In Stock
Warrenty:
1 Year
Delivery Detail:
3-5 Working Days After Payment
Port:
Guangdong Shenzhen Dongguan
High Light:

Omron PLC CPU Unit

,

8K Steps PLC CPU Unit

,

CP1E-N30SDT-D

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

CP1E-N30SDT-D  Programmable Logic Controller Omron PLC CPU Unit





Features

 A CPU unit that can be easily operated without the need for referring to a manual.
[Features]
· When you begin typing an instruction using a keyboard, suggested instructions are displayed and the addresses are automatically entered.
· Easy to grasp the overall system simply by looking at the menu, making it easy to operate without referring to a manual.
· The CP1E is equipped with a peripheral (USB) port.
· Support software (computers) can be connected using commercially available USB cables.
· The transistor output type features two 100-kHz pulse outputs for high-precision position control.
· Control multiple axes with one PLC using the two 100-kHz and four 10-kHz, single-phase high-speed counters.
· *The basic models are equipped with six 10-kHz, single-phase high-speed counters.
· Specify inverter speeds via RS-485.





Specification


- Power supply voltage: 24VDC
- Number of inputs: 18
- Number of outputs: 12, Transistor sinking
- Interrupt inputs: 6 inputs (pulse width 50µs min.)
- Fast acting inputs: 6 inputs (pulse width 50µs min.)
- Machine memory: 8k steps, 8k words
- Number of timers: 256
- Equipped with USB 2.0 port
- Can add more modules: RS-232 / 485 / 422



Number of input/outputs(Point) 30 Output format Transistor (sync)
Unit type Application Model (Renewal Type) Power supply DC
Note 1 RS-232C, USB Built-In RoHS 10
Images

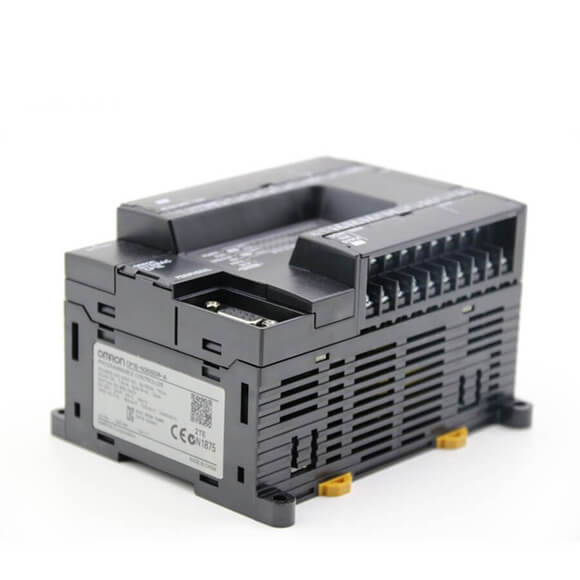

CP1E-N30SDT-D Omron PLC CPU Unit 8K Steps Programmable Logic Controller 0

CP1E-N30SDT-D Omron PLC CPU Unit 8K Steps Programmable Logic Controller 1
