Omron HMI Touch Screen
>
|
| Place of Origin | China/Japan |
| Brand Name | OMRON |

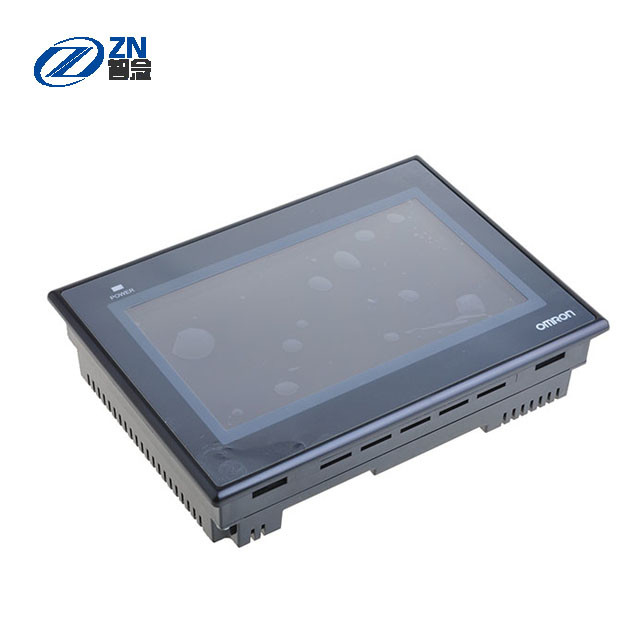

Hot selling OMRON Interactive PLC HMI NB7W-TW01B touch screen 7 inch wall mount Android / Win 10 tablet
Product Description
Flexible remote access function
Besides conventional web browsers, now NB Series supports faster and secure Virtual network computing (VNC), providing
exible remote access.
Powerful remote operation
With the newly added features such as FTP Server and CSV data-copying features, you can change machine parameters from
remote locations or host PC, and collect production data.
Now graphics can be updated even during the operation, and visual can be changed without stopping the HMI following changes
in machines and recipes.
OMRON Touch screen HMI
|
Specifications |
NB3Q |
NB5Q |
NB7W |
NB10W |
|||
|---|---|---|---|---|---|---|---|
|
TW00B |
TW01B |
TW00B |
TW01B |
TW00B |
TW01B |
TW01B |
|
|
Display type |
3.5 inch TFT LCD |
5.6 inch TFT LCD |
7 inch TFT LCD |
10.1 inch TFT LCD |
|||
|
Display resolution (H×V) |
320×240 |
320×234 |
800×480 |
800×480 |
|||
|
Number of colors |
65,536 |
||||||
|
Backlight |
LED |
||||||
|
Backlight lifetime |
50,000 hours of operating time at the normal temperature (25 ° C) 1
1. This is the estimated time when the luminous intensity is decreased by 50% per LED at room temperature and humidity. It is a typical value.
|
||||||
|
Touch panel |
Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations |
||||||
|
Dimensions in mm (H×W×D) |
103.8×129.8×52.8 |
142×184×46 |
148×202×46 |
210.8×268.8×54.0 |
|||
|
Weight |
310 g max. |
315 g max. |
620 g max. |
625 g max. |
710 g max. |
715 g max. |
1,545 g max. |
| Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
| TW00B | TW01B | TW00B | TW01B | TW00B | TW01B | TW01B | |
| Line voltage | 20.4 to 27.6 VDC (24 VDC -15 to 15%) | ||||||
| Power consumption | 5 W | 9 W | 6 W | 10 W | 7 W | 11 W | 14 W |
| Battery lifetime | 5 years (at 25°C) * | ||||||
| Enclosure rating (front side) | Front operation part: IP65 (Dust proof and drip proof only from the front of the panel) | ||||||
| Obtained standards | EC Directives, KC, cUL508 | ||||||
| Operating environment | No corrosive gases. | ||||||
| Noise immunity | Compliant with IEC61000-4-4, 2 KV (Power cable) | ||||||
| Ambient operating temperature | 0 to 50°C | ||||||
| Ambient operating humidity | 10% to 90% RH (without condensation) | ||||||
