NB3Q

3.5 inch, TFT LCD, Color, 320 × 240 dots

NB3Q-TW00B

3.5 inch, TFT LCD, Color, 320 × 240 dots, USB Host, Ethernet

NB3Q-TW01B

NB5Q

5.6 inch, TFT LCD, Color, 320 × 234 dots

NB5Q-TW00B

5.6 inch, TFT LCD, Color, 320 × 234 dots, USB Host, Ethernet

NB5Q-TW01B

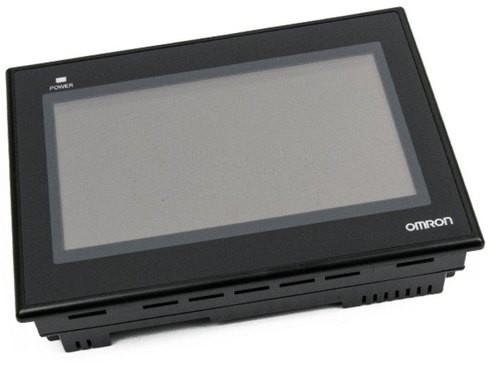

NB7W

7 inch, TFT LCD, Color, 800 × 480 dots

NB7W-TW00B

7 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet

NB7W-TW01B

NB10W

10.1 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet

NB10W-TW01B

NB-to-PLC Connecting cable

For NB to PLC via RS-232C (CP/CJ/CS), 2m

XW2Z-200T

For NB to PLC via RS-232C (CP/CJ/CS), 5m

XW2Z-500T

For NB to PLC via RS-422A/485, 2m

NB-RSEXT-2M

Software

Supported Operating Systems: Windows 10 (32-bit and 64-bit edition) and previous Windows versions.

Download from the Omron website.

NB-Designer

Display protective sheets

For the NB3Q contains 5 sheets

NB3Q-KBA04

For the NB5Q contains 5 sheets

NB5Q-KBA04

For the NB7W contains 5 sheets

NB7W-KBA04

For the NB10W contains 5 sheets

NB10W-KBA04

Attachment

Mounting bracket for NT31/NT31C series to NB5Q series

NB5Q-ATT01

NB3Q

119.0 (+0.5/−0) × 93.0 (+0.5/−0)

NB5Q

172.4 (+0.5/−0) × 131.0 (+0.5/−0)

NB7W

191.0 (+0.5/−0) × 137.0 (+0.5/−0)

NB10W

258.0 (+0.5/−0) × 200.0 (+0.5/−0)

Display type

3.5 inch TFT LCD

5.6 inch TFT LCD

7 inch TFT LCD

10.1 inch TFT LCD

Display resolution (H×V)

320×240

320×234

800×480

800×480

Number of colors

65,536

Backlight

LED

Backlight lifetime

50,000 hours of operating time at the normal temperature (25 ° C)

Touch panel

Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations

Dimensions in mm (H×W×D)

103.8×129.8×52.8

142×184×46

148×202×46

210.8×268.8×54.0

Weight

310 g max.

315 g max.

620 g max.

625 g max.

710 g max.

715 g max.

1,545 g max.

Internal memory

128MB (including system area)

Memory interface

−

USB
Memory

−

USB
Memory

−

USB
Memory

USB
Memory

Serial (COM1)

RS-232C/422A/485 (not isolated),
Transmission distance:
15m Max. (RS-232C),
500m Max. (RS-422A/485),
Connector: D-Sub 9-pin

RS-232C,
Transmission distance: 15 m Max.,
Connector: D-Sub 9-pin

Serial (COM2)

−

RS-232C/422A/485 (not isolated),
Transmission distance: 15m Max. (RS-232C),

500m Max. (RS-422A/485),

Connector: D-Sub 9-pin

USB Host

Equivalent to USB 2.0 full speed, type A, Output power 5V, 150mA

USB Slave

Equivalent to USB 2.0 full speed, type B, Transmission distance: 5m

Printer connection

PictBridge support

Ethernet

−

10/100 base-T

−

10/100 base-T

−

10/100 base-T

10/100 base-T

Line voltage

20.4 to 27.6 VDC (24 VDC −15 to 15%)

Power consumption

5 W

9 W

6 W

10 W

7 W

11 W

14 W

Battery lifetime

5 years (at 25 ° C)

Enclosure rating (front side)

Front operation part: IP65 (Dust proof and drip proof only from the front of the panel)

Obtained standards

EC Directives, KC, cUL508

Operating environment

No corrosive gases.

Noise immunity

Compliant with IEC61000-4-4, 2KV (Power cable)

Ambient operating temperature

0 to 50 ° C

Ambient operating humidity

10% to 90% RH (without condensation)

OMRON

Omron C Series Host Link

Omron CJ/CS Series Host Link

Omron CP Series

Mitsubishi

Mitsubishi Q_QnA (Link Port)

Mitsubishi FX-485ADP/485BD/422BD (Multi-station)

Mitsubishi FX0N/1N/2N/3G

Mitsubishi FX1S

Mitsubishi FX2N-10GM/20GM

Mitsubishi FX3U

Mitsubishi Q series (CPU Port)

Mitsubishi Q00J (CPU Port)

Mitsubishi Q06H

Panasonic

FP series

Siemens

Siemens S7-200

Siemens S7-300/400 (PC Adapter Direct)

Allen-Bradley

(Rockwell)

AB DF1

AB CompactLogix/ControlLogix

Schneider

Schneider Modicon Uni-TelWay

Schneider Twido Modbus RTU

Delta

Delta DVP

LG (LS)

LS Master-K Cnet

LS Master-K CPU Direct

LS Master-K Modbus RTU

LS XGT CPU Direct

LS XGT Cnet

GE Fanuc Automation

GE Fanuc Series SNP

GE SNP-X

Modbus

Modbus ASCII

Modbus RTU

Modbus RTU Slave

Modbus RTU Extend

Modbus TCP
