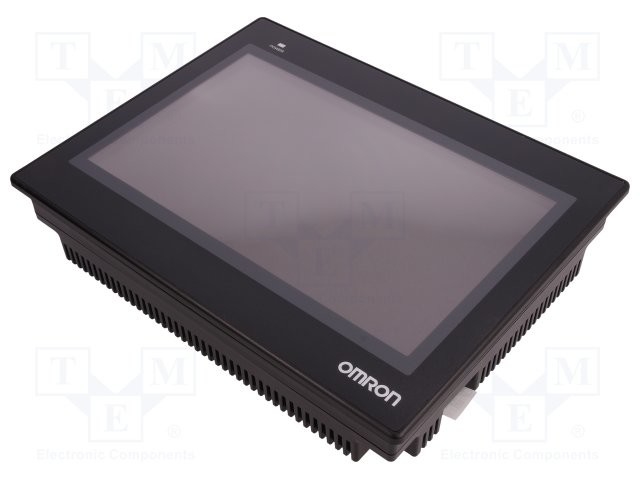

Omron HMI Touch Screen
>
|
| Place of Origin | China/Japan |
| Brand Name | OMRON |
| Model Number | NB10W-TW01B |
The combination of high quality and rich features add up to give outstanding value for an HMI in the economy class. The NB-Designer software to create your HMI application is free of charge and can be downloaded from our website.
HMI
|
Specifications |
NB3Q |
NB5Q |
NB7W |
NB10W |
|||
|---|---|---|---|---|---|---|---|
|
TW00B |
TW01B |
TW00B |
TW01B |
TW00B |
TW01B |
TW01B |
|
|
Display type |
3.5 inch TFT LCD |
5.6 inch TFT LCD |
7 inch TFT LCD |
10.1 inch TFT LCD |
|||
|
Display resolution (H×V) |
320×240 |
320×234 |
800×480 |
800×480 |
|||
|
Number of colors |
65,536 |
||||||
|
Backlight |
LED |
||||||
|
Backlight lifetime |
50,000 hours of operating time at the normal temperature (25 ° C) 1
1. This is the estimated time when the luminous intensity is decreased by 50% per LED at room temperature and humidity. It is a typical value.
|
||||||
|
Touch panel |
Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations |
||||||
|
Dimensions in mm (H×W×D) |
103.8×129.8×52.8 |
142×184×46 |
148×202×46 |
210.8×268.8×54.0 |
|||
|
Weight |
310 g max. |
315 g max. |
620 g max. |
625 g max. |
710 g max. |
715 g max. |
1,545 g max. |
| Specifications | NB3Q | NB5Q | NB7W | NB10W | ||||||||||
| TWO0B | TWO1B | TWOOB | TWO1B | TWOOB | TWO1B | TWO1B | ||||||||
| lnternal memory | 128 MB (including system area) | |||||||||||||
| Memory interface | - | uSB Memory | USB Memory | uSB Memory | ||||||||||
| Serial (COM1) | RS-232C1422A485 (not isolated), Transmission distance: 15 m Max.(RS-232C), 500 m Max.(RS-422A1485), Connector: D-Sub 9-pin |
RS-232C, Transmission distance:15 m Max., Connector:D-Sub 9-pin |
||||||||||||
| Serial (COM2) | RS-232C1422AJ485(not isolated), Transmission distance: 15m Max.(RS-232C),500 m Max.(RS-422A485), Connector.D-Sub 9-pin |
|||||||||||||
| USB Host | Equivalent to USB 2.0 full speed,type A,Output power 5 V,150 mA | |||||||||||||
| USB Slave | Equivalent to uSB 2.0 full speed,type B,Transmission distance: 5m | |||||||||||||
| Printer connection | PictBridge support | |||||||||||||
| Ethernet | --一 | 10/100 base-T | 10/100 base-T | 10/100 base-T | 10/100 base-T | |||||||||
| General | ||||||||||||||
| Specifications | NB3Q | NB5Q | NB7W | NB10W | ||||||||||
| TWO0B | TWO1B | TWOOB | TWO1B | TWO0B | TWO1B | TWO1B | ||||||||
| Line voltage | 20.4 to 27.6VDC(24VDC-15 to 15%) | |||||||||||||
| power consumption | 5 w | 9w | 6 w | 1ow | 7 w | 11w | 14w | |||||||
| Battery lifetime | 5years (at 25"C)* | |||||||||||||
| Enclosure rating(front side) | Front operation part: IP65(Dust proof and drip proof only from the front of the panel) | |||||||||||||
| Obtained standards | EC Directives,KC,cUL508 | |||||||||||||
| Operating environment | No corrosive gases. | |||||||||||||
| Noise immunity | Compliant with IEC61000-4-4,2 KV(Power cable) | |||||||||||||
| Ambient operating temperature | 0 to 50°c | |||||||||||||
| Ambient operating humidity | 10%to 90% RH(without condensation) | |||||||||||||
