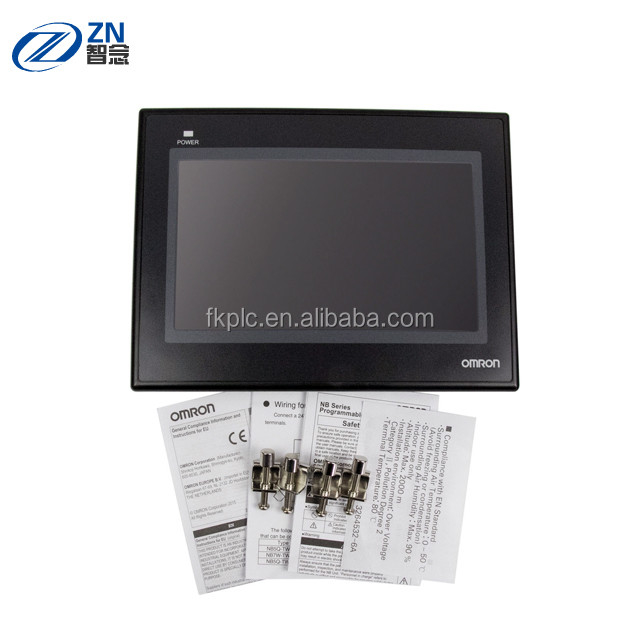

Omron HMI Touch Screen
>
|
| Place of Origin | China/Japan |
| Brand Name | OMRON |
| Model Number | NB7W-TW01B |
The combination of high quality and rich features add up to give outstanding value for an HMI in the economy class. The NB-Designer software to create your HMI application is free of charge and can be downloaded from our website.
HMI
|
Specifications |
NB3Q |
NB5Q |
NB7W |
NB10W |
|||
|---|---|---|---|---|---|---|---|
|
TW00B |
TW01B |
TW00B |
TW01B |
TW00B |
TW01B |
TW01B |
|
|
Display type |
3.5 inch TFT LCD |
5.6 inch TFT LCD |
7 inch TFT LCD |
10.1 inch TFT LCD |
|||
|
Display resolution (H×V) |
320×240 |
320×234 |
800×480 |
800×480 |
|||
|
Number of colors |
65,536 |
||||||
|
Backlight |
LED |
||||||
|
Backlight lifetime |
50,000 hours of operating time at the normal temperature (25 ° C) 1
1. This is the estimated time when the luminous intensity is decreased by 50% per LED at room temperature and humidity. It is a typical value.
|
||||||
|
Touch panel |
Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations |
||||||
|
Dimensions in mm (H×W×D) |
103.8×129.8×52.8 |
142×184×46 |
148×202×46 |
210.8×268.8×54.0 |
|||
|
Weight |
310 g max. |
315 g max. |
620 g max. |
625 g max. |
710 g max. |
715 g max. |
1,545 g max. |
