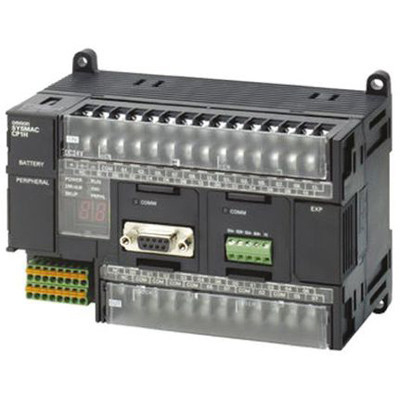

24V DC Power Supply PLC Omron Programmable Controller CP1E-N40S1DT-D
  • 24V DC Power Supply PLC Omron Programmable Controller CP1E-N40S1DT-D
  • 24V DC Power Supply PLC Omron Programmable Controller CP1E-N40S1DT-D
  • 24V DC Power Supply PLC Omron Programmable Controller CP1E-N40S1DT-D
  • 24V DC Power Supply PLC Omron Programmable Controller CP1E-N40S1DT-D

24V DC Power Supply PLC Omron Programmable Controller CP1E-N40S1DT-D

Place of Origin China/Japan
Brand Name Omron
Model Number CP1E-N40S1DT-D
Product Details
Product Name:
Module
Main Function:
CPU Unit
I/O Voltage:
24VDC
Output Type:
Transistor
Inputs:
24
Outputs:
16
Warranty:
1 Year
PAYMENT:
TT.Western Union
Lead Time:
In Stock
Port:
Selectable
MOQ:
1 PC
High Light:

24V Power Supply PLC Omron

,

Programmable Controller Power Supply PLC Omron

,

CP1E-N40S1DT-D

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

Genuine Omron PLC programmable controller CP1E-N40S1DT-D negotiated price

24V DC Power Supply PLC Omron Programmable Controller CP1E-N40S1DT-D

Product Details

The Omron's CP1E series is a PLC unit which has 24 inputs, 16 relay outputs with 8K steps program and 8K words data memory. The CP1E Programmable Controller is Economical, Easy to use, and Efficient.



Complete High-speed counter functionality
Built-in analogue I/O, two inputs and one output, for NA-type CPU units

Specifications

Attribute Value
Manufacturer Series CP1E
Number of Digital Inputs 24
Input Type PNP/NPN
Number of Outputs 16



24V DC Power Supply PLC Omron Programmable Controller CP1E-N40S1DT-D 0

Transmission distance 5 m max.
Built-in RS-232C port









No built-in RS-232C port

Interface: Conforms to EIA RS-232C.
Communications method Half duplex
synchronization Start-stop
Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps
Transmission distance 15 m max.
Supported protocol · Host Link· 1:N NT Link



· No-protocol mode

· Serial PLC Links (master, slave)

· Modbus-RTU Easy Master

Built-in RS-485 port











No built-in RS-485 port

N30/40/60S1-type onlyInterface: Conforms to EIA RS-485. 2-wire sensors No isolation
Communications method Half duplex
synchronization Start-stop
Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps
Transmission distance 50 m max.
Supported protocol · Host Link· 1:N NT Link



· No-protocol mode

· Serial PLC Links (master, slave)

· Modbus-RTU Easy Master

Serial Option port











Option Board cannot be mounted.

N30/40/60 and NA20-type only 1 port
Mountable Option Boards · One RS-232C port: CP1W-CIF01· One RS-422A/485 port (not isolated): CP1W-CIF11



· One RS-422A/485 port (isolated): CP1W-CIF12-V1

· One Ethernet port: CP1W-CIF41

Communications method Depends on Option Board.
synchronization Depends on Option Board.
Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps
Compatible protocols · Host Link· 1:N NT Link



· No-protocol mode

· Serial PLC Links (master, slave)

· Modbus-RTU Easy Master

Number of tasks 17· One cyclic execution task



· One scheduled interrupt task (always interrupt task 1)

· Six input interrupt tasks (interrupt tasks 2 to 7)

· Sixteen high-speed counter interrupt tasks (interrupt tasks 1 to 16)

Maximum subroutine number 128
Maximum jump number 128
Scheduled interrupt tasks 1 interrupt task
Clock Clock function not included.



The time of error occurrence displays 01-01-01 01:01:01 Sunday

Included.Accuracy (monthly deviation):



-4.5 min to -0.5 min at ambient temperature of 55oC,

-2.0 min to +2.0 min at ambient temperature of 25oC,

-2.5 min to +1.5 min at ambient temperature of 0oC

Built-in EEPROM Ladder programs and parameters are automatically saved to built-in EEPROM A section of the Data Memory Area can be saved to the built-in EEPROM.
Battery backup With CP1W-BAT01 Battery (Sold separately)



Battery cannot be mounted.

CP1W-BAT01 can be used. Maximum battery service life: 5 years Backup TimeGuaranteed value (ambient temperature: Battery (Sold separately)Effective value (ambient temperature: 25oC): 43,000 hours (approx. 5 years)
Input Bits 1,600 bits (100 words): CIO 0.00 to CIO 99.15 (CIO 00 to CIO 99)
Output Bits 1,600 bits (100 words): CIO 100.00 to CIO 199.15 (CIO 100 to CIO 199)
Serial PLC Link Words 1,440 bits (90 words): CIO 200.00 to CIO 289.15 (words CIO 200 to CIO 289)
Work Area (W) 1,600 bits (100 words): W0.00 to W99.15 (W0 to W99)
Holding Area (H) 800 bits (50 words): H0.00 to H49.15 (H0 to H49)Bits in this area maintain their ON/OFF status when operating mode is changed.
Auxiliary Area (A) Read-only: 7,168 bits (448 words) A0 to A447Read/write: 4,896 bits (306 words) in words A448 to A753
Temporary Relay Area (TR) (TR Area) 16 bits: TR0 to TR15
Timer Area (T) 256 timer numbers (T0 to T255 (separate from counters))
Counter Area (C) 256 counter numbers (C0 to C255 (separate from timers))
