Cylinder Shielded 3MM Proximity Sensor Sponsored OMRON E2E-X3D1-N
  • Cylinder Shielded 3MM Proximity Sensor Sponsored OMRON E2E-X3D1-N
  • Cylinder Shielded 3MM Proximity Sensor Sponsored OMRON E2E-X3D1-N

Cylinder Shielded 3MM Proximity Sensor Sponsored OMRON E2E-X3D1-N

Place of Origin China/Japan
Brand Name Omron
Model Number E2E-X3D1-N
Product Details
Service:
One-stop Service
Quality:
New And Original
Lead Time:
In Stock
Warrenty:
1 Year
Delivery Detail:
3-5 Working Days After Payment
Port:
Guangdong Shenzhen Dongguan
High Light:

OMRON 3MM Proximity Sensor

,

Cylinder 3MM Proximity Sensor

,

E2E-X3D1-N

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$2.00 - $29.00/Pieces
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

OMRON E2E-X3D1-N 3MM Proximity Sensor Factory Sealed Cost

E2E Features:

• Standard Sensors for detecting ferrous metals.

• Wide array of variations. Ideal for a variety of applications.

• Models with different frequencies are also available to prevent mutual interference.

• Superior environment resistance with standard cable made of oilresistant PVC and sensing surface made of material that resists cutting oil.

• Useful to help prevent disconnection. Cable protector provided as a standard feature.



Standard type, Operating indicator LED/Mechanical indicator, 30 VDC 6 A, 250 VAC 6 A, Output SPDT (30 VDC 6 A)



Specification



Sensing head size M12
Type Cylinder type (with screw),Shielded
Sensing distance 3 mm ±10%
Setting distance 0 to 2.4 mm
Differential distance 10% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 12 x 12 x 1 mm
Response frequency 1 kHz
Power source DC 2-wire models
Power supply voltage 12 to 24 VDC (ripple (p-p) 10% max.)
Operating voltage range 10 to 30 VDC
Leakage current 0.8 mA max.
Control output (Switching capacity) 3 to 100 mA
Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m)
Indicator Operation indicator (red), Operation setting indicator (green)
Operation mode NO
Polarity Polarity
Protective circuit Output short-cut protection
Surge suppressor
Ambient temperature Operating: -25 to 70℃
Storage: -40 to 85℃
Ambient humidity Operating: 35 to 95%
Storage: 35 to 95%
Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 1000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 1000 m/s**2 10 times each in X, Y, and Z directions
Degree of protection IEC: IP67
Company standard: Oil-proof
Connection method Pre-wired models (Cable length: 2 m)
Weight Package: Approx. 70 g
Material Case: Brass nickel plating
Sensing surface: Polybutylene terephthalate (PBT)
Clamping nuts: Brass nickel plating
Toothed washers: Iron zinc plating
Accessories Instruction manual

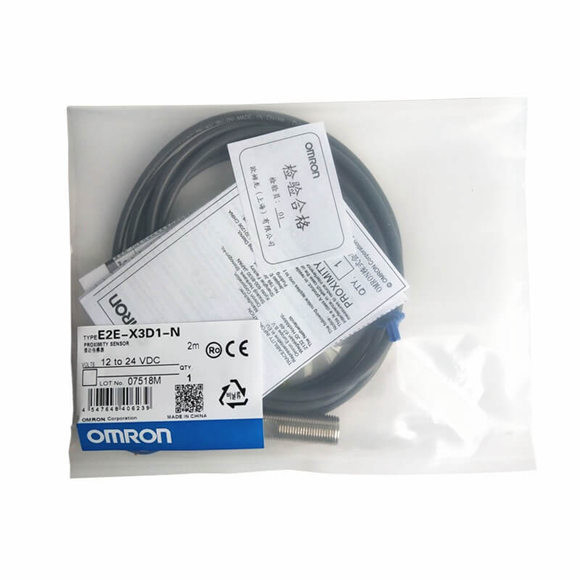

Cylinder Shielded 3MM Proximity Sensor Sponsored OMRON E2E-X3D1-N 0
