8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON
  • 8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON
  • 8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON
  • 8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON
  • 8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON
  • 8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON

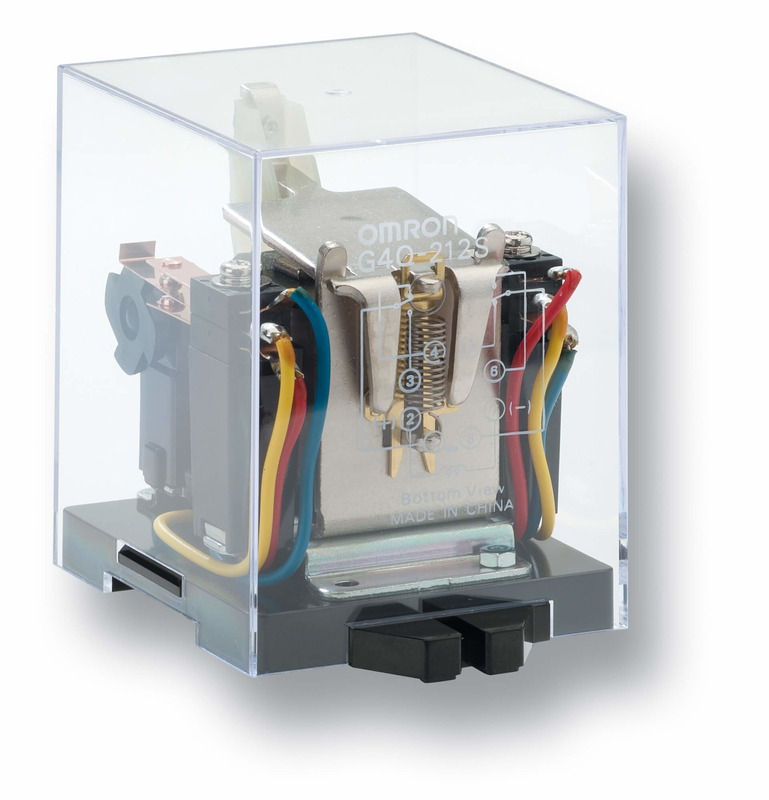

8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON

Place of Origin China/Japan
Brand Name Omron
Model Number G4Q-212S
Product Details
Quality:
New And Original
Warrenty:
One Year
Delivery Detail:
3-5 Working Days After Payment
Package:
Original Package
Port:
Guangdong Shenzhen Dongguan
High Light:

Ratchet Dpdt Relay 24V

,

8 Pin Dpdt Relay 24V

,

G4Q-212S Omron

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$2.00 - $29.00/Pieces
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description
High performance OMRON RELAYS G4Q-212S at reasonable prices


Product Details

8 Pin DPDT Ratchet Relay



2 pole plug-in relay, each contact in the contact mechanism performs alternate make-break operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a motor.



Contact Rating 5A@ 220 V ac/ 24 V dc
Unique ratchet mechanism assures positive alternate transfer/switching operation
Minimum pulse application = 100 ms
Quick response speed allows continuous use of the relay
Dielectric strength of 2000 V ac
Low power consumption (a.c. approx. 6.4 VA, d.c. approx. 3.9 W)
Electrical Life: 5 x 105 steps (min)
Mechanical Life: 5 x 106 steps (min)
Max Switch Power: 1100 VA, 250 V ac; 120 W, 250 V dc
Operating temperature range -10 to +55°C



8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON 0


8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON 18 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON 2

Approvals

7777





Specifications

Attribute Value
Coil Voltage 12V dc
Contact Configuration DPDT
Mounting Type Plug In
Maximum Switching Voltage AC 250V ac
Maximum Switching Voltage DC 250V dc
Maximum Switching Power DC 120 W
Length 92.5mm
Depth 63.5mm
Height 80mm
Dimensions 92.5 x 63.5 x 80mm
Terminal Type Plug In
Number of Poles 2
Application Power
Switching Current 5A
Isolation Coil To Contact 2kV
Maximum Operating Temperature +55°C
Contact Material Silver
Operating Temperature Range -10 → +55°C
Coil Resistance 37.5 Ω
Maximum Switching Power AC 1.1 kVA
Coil Power 3.9W
Minimum Operating Temperature -10°C
