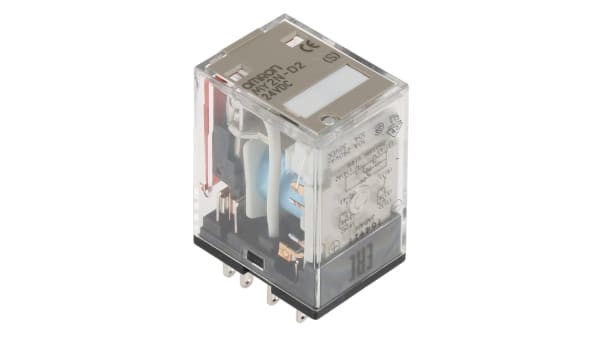

Monostable Relay Omron My2n 24vdc 220vac 12vac with LED Indicator
  • Monostable Relay Omron My2n 24vdc 220vac 12vac with LED Indicator
  • Monostable Relay Omron My2n 24vdc 220vac 12vac with LED Indicator
  • Monostable Relay Omron My2n 24vdc 220vac 12vac with LED Indicator

Monostable Relay Omron My2n 24vdc 220vac 12vac with LED Indicator

Place of Origin China/Japan
Brand Name Omron
Model Number my2n
Product Details
Quality:
New And Original
Warrenty:
One Year
Delivery Detail:
3-5 Working Days After Payment
Package:
Original Package
Port:
Guangdong Shenzhen Dongguan
High Light:

Monostable Relay Omron My2n-24vdc

,

LED Indicator Relay Omron My2n 24vdc

,

Relay Omron My2n 220vac 12vac

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$1.00 - $19.00/Pieces
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

My2n-24vdc my2n dc24v my2 220vac 12v ac omron relay



Product Overview

  • MY(S) series miniature power relay with DPDT contact form and DC coil
  • Standard model
  • Versatile plug-in relay with LED indicator
  • Plug-in socket/solder terminals
  • Reduces wiring work by 60% when combined with PYF-PU push-in plus socket
  • 2.6mm wide pins offer higher conductivity and less temperature increase
  • Compact design, superb performance
  • High shock resistance reduces malfunctions for unexpected external shocks
  • High electrical durability





OMRON products



Product classification Monostable relays
Built-in LED indicator type
Coil ratings 100 VAC/110 VAC
Operating indicator LED
Contact type DPDT
Contact method Single
Contact material Ag
Contact rated load 220 VAC 5 A (Resistive load)
220 VAC 2 A (Inductive load (cos φ= 0.4))
24 VDC 5 A (Resistive load)
24 VDC 2 A (Inductive load (L/R = 7 ms))
Maximum switching voltage 250 VAC
125 VDC
Maximum switching current AC: 5 A
DC: 5 A
Failure rate 1 mA at 5 VDC (failure level: P Reference value) (Switching frequency of 120 operations per minute)
Ambient temperature (Operating) -55 to 60 ℃ (with no icing or condensation)
Ambient_humidity (Operating) 5 to 85%RH (with no icing or condensation)
Contact resistance 50 mΩ max., Measuring the voltage drop across the contacts by applying test voltage/current as 5 VDC 1 A
Release time (Reset time) 20 ms max. (The operate or release time was measured with the rated voltage at an ambient temperature of 23 ℃)
Insulation resistance Between coil and contacts: 100 MΩ min. (at 500 VDC)
Between contacts of different polarity: 100 MΩ min. (at 500 VDC)
Between contacts of same polarity: 100 MΩ min. (at 500 VDC)
Dielectric strength Between coil and contacts: 2000 VAC (50/60 Hz 1 min)
Between contacts of different polarity: 2000 VAC (50/60 Hz 1 min)
Between contacts of same polarity: 1000 VAC (50/60 Hz 1 min)
Vibration resistance (Destruction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
Vibration resistance (Malfunction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
Shock resistance (Destruction) 1000 m/s**2
Shock resistance (Malfunction) 200 m/s**2
Endurance (Mechanical) 50 million operations min. (switching frequency 18,000 operations/h)
Endurance (Electrical) 500,000 operations min. (23 ℃, Rated load, switching frequency 1,800 operations/h)
Protective structure Closed type (cover)
Terminal structure Plug-in terminal
Weight Approx. 35 g
