| Place of Origin | China/Japan |
| Brand Name | MITSUBISHI |
| Model Number | Q61P |

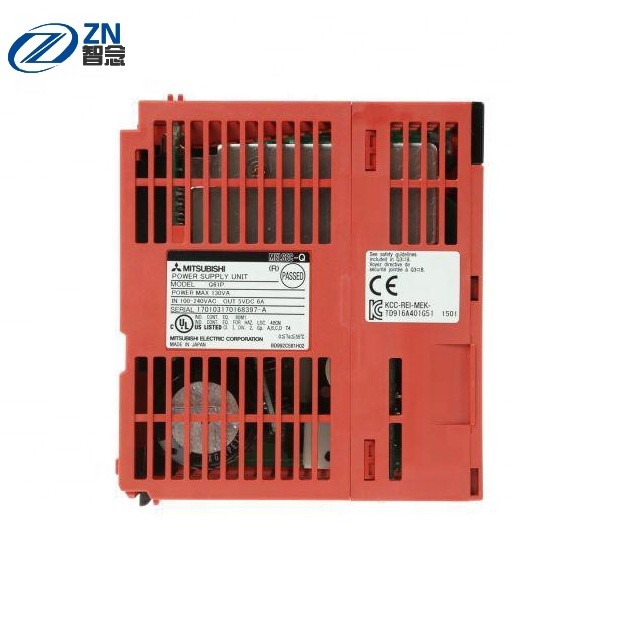

New plc mitsubishi Q61P Mitsubishi Original new controller model
AC input power supply unit designed to provide 5Vdc necessary for Q series modules. Once plugged into the backplane, all Q series modules on the same backplane will be powered from this unit.
Built-in error relay for diagnosis outside the control cabinet
Large 6A capacity allows systems to be constructed with a single power supply unit
Over current protection included
| Series | MELSEC-Q SERIES |
|---|---|
| Type | POWER SUPPLY |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Max Input Power (W) | N/A |
| Max Input Apparent Power (VA) | 105 |
| Output Current 5V (A) | 6 |
| Output Current 24V (A) | N/A |
| Width (mm) | 55,2 |
|---|---|
| Height (mm) | 98 |
| Depth (mm) | 90 |
| Weight (kg) | 0,3 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
