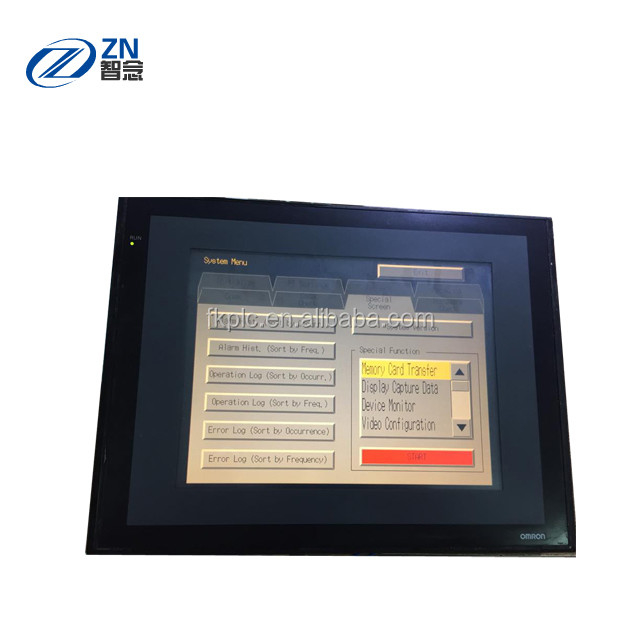

1PC OMRON Interactive Display HMI NS10-TV00B-ECV2 Touch Screen
  • 1PC OMRON Interactive Display HMI NS10-TV00B-ECV2 Touch Screen
  • 1PC OMRON Interactive Display HMI NS10-TV00B-ECV2 Touch Screen

1PC OMRON Interactive Display HMI NS10-TV00B-ECV2 Touch Screen

Place of Origin China/Japan
Brand Name Omron
Model Number NS10-TV00B-ECV2
Product Details
Service:
One-stop Service
Package:
Original Package
Quality:
New And Original
Lead Time:
In Stock
Warrenty:
1 Year
Delivery Detail:
3-5 Working Days After Payment
Port:
Guangdong Shenzhen Dongguan
High Light:

HMI OMRON Interactive Display

,

1PC OMRON Interactive Display

,

NS10-TV00B-ECV2

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$29.00 - $159.00/Pieces
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

OMRON Interactive Display HMI NS10-TV00B-ECV2 NS10TV00BECV2 Touch Screen



Specification



  • Manufacturer : Mitsubishi Electric

  • Product No. : NS10-TV00B-ECV2

  • Product Type : NS Series HMI

  • Effective display area : 10.4-inch TFT

  • Screen size : 10.4"

  • Case color : Black

  • Number of dots : 640 × 480 dots

  • Touch panel : Analog resistive type

  • LED backlight

  • Weight : 2.3 Kg

  • Shipping weight : 5 Kg

  • 1PC OMRON Interactive Display HMI NS10-TV00B-ECV2 Touch Screen 0

Item

NS15

NS12

NS10

NS8

Display type

15 inch color TFT

12 inch color TFT

10 inch color TFT

8 inch color TFT

Display resolution

1024×768 (XGA)

800×600 (SVGA)

640×480 (VGA)

Number of colors

256 (32.768 for image data)

Backlight

2×CCFL

1×LED

Backlight lifetime

Min. 50000 hours

View angle

Left/right ±85°, Top 70°, Bottom 80°

Left/right ±60°, Top 45°, Bottom 75°

Left/right ±60°, Top 35°, Bottom 65°

Left/right ±65°, Top 50°, Bottom 60°

Touch panel

Analog resistive touch

Matrix resistive touch

Number of functional keys

3

-

Dimensions in mm (H×W×D)

304×405×75.8

241×315×48.5

177×232×48.5

Weight

4.2 kg max.

2.5 kg max.

2.0 kg max.

Screen data capacity

60 MB

Internal memory

Bit memory: 32,767 bits, Word memory: 32,767 words, Retentative memory: 8,192 bits and 8,192 words.

Memory card interface

1 slot ATA Compact Flash card

Printer connection

PictBridge support

Serial (COM1)

1×RS-232

Serial (COM2)

1×RS-232/422/485

1×RS-232

USB Slave

For programming & printing

Ethernet

IEEE 802.3u 10Base-T/100Base-TX

Expansion module

Optional network/video unit

Optional video unit

Line voltage

24 VDC ±15%

Power consumption

45 W max.

25 W max.

Battery

CJ1W-BAT01

Battery lifetime

5 years (at 25°C)

Enclosure rating (front side)

IP65F (equivalent to NEMA4)

Obtained standards

UL 1604 Class 1 Diff. 2, cUL, CE, Lloyds, DNV

Operating environment

No corrosive gases

Noise immunity

Conforms to IEC61000-4-4, 2 KV (power lines)

Ambient operating temperature

0 to 50°C

1



Ambient operating humidity

35% to 85% (0 to 40°C) with no condensation, 35% to 60% (40 to 50°C) with no condensation
