LED Backlight Omron HMI Touch Screen Interactive 10.1 Inch NB10W-TW01B
  • LED Backlight Omron HMI Touch Screen Interactive 10.1 Inch NB10W-TW01B
  • LED Backlight Omron HMI Touch Screen Interactive 10.1 Inch NB10W-TW01B
  • LED Backlight Omron HMI Touch Screen Interactive 10.1 Inch NB10W-TW01B
  • LED Backlight Omron HMI Touch Screen Interactive 10.1 Inch NB10W-TW01B
  • LED Backlight Omron HMI Touch Screen Interactive 10.1 Inch NB10W-TW01B
  • LED Backlight Omron HMI Touch Screen Interactive 10.1 Inch NB10W-TW01B
  • LED Backlight Omron HMI Touch Screen Interactive 10.1 Inch NB10W-TW01B

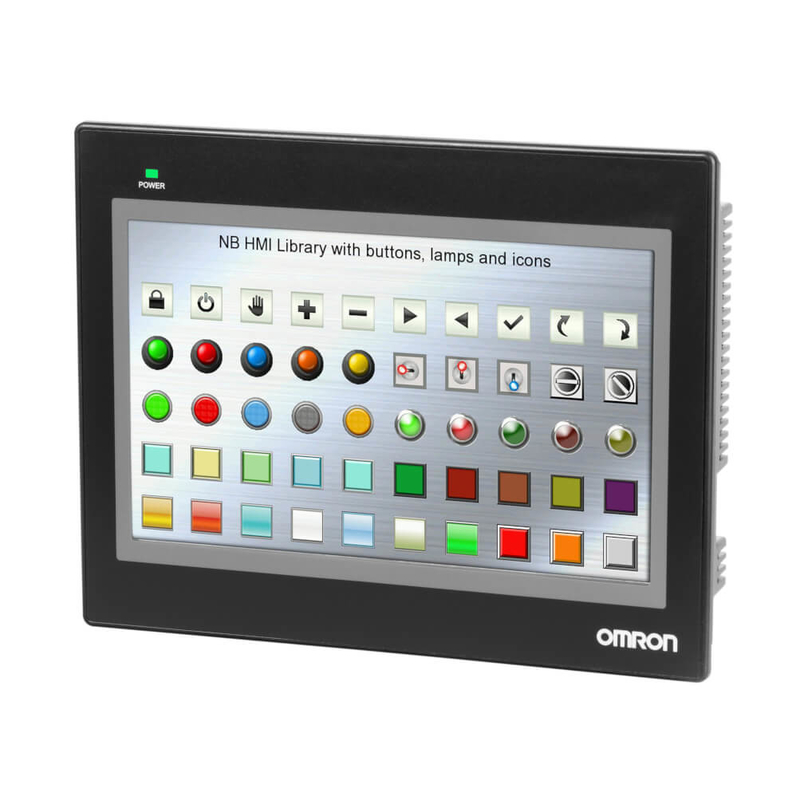

LED Backlight Omron HMI Touch Screen Interactive 10.1 Inch NB10W-TW01B

Place of Origin China/Japan
Brand Name Omron
Model Number NB10W-TW01B
Product Details
Service:
One-stop Service
Package:
Original Package
Quality:
New And Original
Lead Time:
In Stock
Warrenty:
1 Year
Delivery Detail:
3-5 Working Days After Payment
Port:
Guangdong Shenzhen Dongguan
High Light:

LED Backlight Omron HMI Touch Screen

,

10.1 Inch Omron HMI Touch Screen

,

NB10W-TW01B

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$19.00 - $139.00/Pieces
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

Low cost New OMRON NB10W-TW01B Interactive Display 10.1" HMI Touch Panel LED Backlight

LED Backlight Omron HMI Touch Screen Interactive 10.1 Inch NB10W-TW01B 0

Feature


The feature-rich, cost-effective HMI

The combination of high quality and rich features add up to give outstanding value for an HMI in the economy class. The NB-Designer software to create your HMI application is free of charge and can be downloaded from our website.

  • More than 65,000 display colors TFT touch screen
  • Available in sizes ranging from 3.5 to 10 inches
  • Long-life LED backlight
  • Serial, USB or Ethernet communication
  • USB memory stick support (TW01 model only)
  • 128 MB internal memory
  • Vector and bitmap graphics
Specification



Ordering information



HMI panels

Product name

Specifications

Order code

NB3Q

3.5 inch, TFT LCD, Color, 320 × 240 dots

NB3Q-TW00B

3.5 inch, TFT LCD, Color, 320 × 240 dots, USB Host, Ethernet

NB3Q-TW01B

NB5Q

5.6 inch, TFT LCD, Color, 320 × 234 dots

NB5Q-TW00B

5.6 inch, TFT LCD, Color, 320 × 234 dots, USB Host, Ethernet

NB5Q-TW01B

NB7W

7 inch, TFT LCD, Color, 800 × 480 dots

NB7W-TW00B

7 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet

NB7W-TW01B

NB10W

10.1 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet

NB10W-TW01B

Options

Product item

Specifications

Order code

NB-to-PLC Connecting cable

For NB to PLC via RS-232C (CP/CJ/CS), 2m

XW2Z-200T

For NB to PLC via RS-232C (CP/CJ/CS), 5m

XW2Z-500T

For NB to PLC via RS-422A/485, 2m

NB-RSEXT-2M

Software

Supported Operating Systems: Windows 10 (32-bit and 64-bit edition) and previous Windows versions.

Download from the Omron website.

NB-Designer

Display protective sheets

For the NB3Q contains 5 sheets

NB3Q-KBA04

For the NB5Q contains 5 sheets

NB5Q-KBA04

For the NB7W contains 5 sheets

NB7W-KBA04

For the NB10W contains 5 sheets

NB10W-KBA04

Attachment

Mounting bracket for NT31/NT31C series to NB5Q series

NB5Q-ATT01



Model

Panel cutout (H × V mm)

NB3Q

119.0 (+0.5/−0) × 93.0 (+0.5/−0)

NB5Q

172.4 (+0.5/−0) × 131.0 (+0.5/−0)

NB7W

191.0 (+0.5/−0) × 137.0 (+0.5/−0)

NB10W

258.0 (+0.5/−0) × 200.0 (+0.5/−0)

Note: Applicable panel thickness: 1.6 to 4.8 mm.

Specifications



HMI

Specifications

NB3Q

NB5Q

NB7W

NB10W

TW00B

TW01B

TW00B

TW01B

TW00B

TW01B

TW01B

Display type

3.5 inch TFT LCD

5.6 inch TFT LCD

7 inch TFT LCD

10.1 inch TFT LCD

Display resolution (H×V)

320×240

320×234

800×480

800×480

Number of colors

65,536

Backlight

LED

Backlight lifetime

50,000 hours of operating time at the normal temperature (25 ° C)

1
1. This is the estimated time when the luminous intensity is decreased by 50% per LED at room temperature and humidity. It is a typical value.



Touch panel

Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations

Dimensions in mm (H×W×D)

103.8×129.8×52.8

142×184×46

148×202×46

210.8×268.8×54.0

Weight

310 g max.

315 g max.

620 g max.

625 g max.

710 g max.

715 g max.

1,545 g max.

Functionality

Specifications

NB3Q

NB5Q

NB7W

NB10W

TW00B

TW01B

TW00B

TW01B

TW00B

TW01B

TW01B

Internal memory

128MB (including system area)

Memory interface

USB
Memory

USB
Memory

USB
Memory

USB
Memory

Serial (COM1)

RS-232C/422A/485 (not isolated),
Transmission distance:
15m Max. (RS-232C),
500m Max. (RS-422A/485),
Connector: D-Sub 9-pin

RS-232C,
Transmission distance: 15 m Max.,
Connector: D-Sub 9-pin

Serial (COM2)

RS-232C/422A/485 (not isolated),
Transmission distance: 15m Max. (RS-232C),

500m Max. (RS-422A/485),

Connector: D-Sub 9-pin

USB Host

Equivalent to USB 2.0 full speed, type A, Output power 5V, 150mA

USB Slave

Equivalent to USB 2.0 full speed, type B, Transmission distance: 5m

Printer connection

PictBridge support

Ethernet

10/100 base-T

10/100 base-T

10/100 base-T

10/100 base-T

General

Specifications

NB3Q

NB5Q

NB7W

NB10W

TW00B

TW01B

TW00B

TW01B

TW00B

TW01B

TW01B

Line voltage

20.4 to 27.6 VDC (24 VDC −15 to 15%)

Power consumption

5 W

9 W

6 W

10 W

7 W

11 W

14 W

Battery lifetime

5 years (at 25 ° C)

Enclosure rating (front side)

Front operation part: IP65 (Dust proof and drip proof only from the front of the panel)

Obtained standards

EC Directives, KC, cUL508

Operating environment

No corrosive gases.

Noise immunity

Compliant with IEC61000-4-4, 2KV (Power cable)

Ambient operating temperature

0 to 50 ° C

Ambient operating humidity

10% to 90% RH (without condensation)

Applicable Controllers





Brand

Series

OMRON

Omron C Series Host Link

Omron CJ/CS Series Host Link

Omron CP Series

Mitsubishi

Mitsubishi Q_QnA (Link Port)

Mitsubishi FX-485ADP/485BD/422BD (Multi-station)

Mitsubishi FX0N/1N/2N/3G

Mitsubishi FX1S

Mitsubishi FX2N-10GM/20GM

Mitsubishi FX3U

Mitsubishi Q series (CPU Port)

Mitsubishi Q00J (CPU Port)

Mitsubishi Q06H

Panasonic

FP series

Siemens

Siemens S7-200

Siemens S7-300/400 (PC Adapter Direct)

Allen-Bradley

2
2. AB and GE will be supported by NB-Designer version 1.20 or higher.

(Rockwell)

AB DF1

AB CompactLogix/ControlLogix



Brand

Series

Schneider

Schneider Modicon Uni-TelWay

Schneider Twido Modbus RTU

Delta

Delta DVP

LG (LS)

LS Master-K Cnet

LS Master-K CPU Direct

LS Master-K Modbus RTU

LS XGT CPU Direct

LS XGT Cnet

GE Fanuc Automation

1
2. AB and GE will be supported by NB-Designer version 1.20 or higher.

GE Fanuc Series SNP

GE SNP-X

Modbus

Modbus ASCII

Modbus RTU

Modbus RTU Slave

Modbus RTU Extend

Modbus TCP
