Omron HMI Touch Screen
>
|
| Place of Origin | China/Japan |
| Brand Name | Omron |

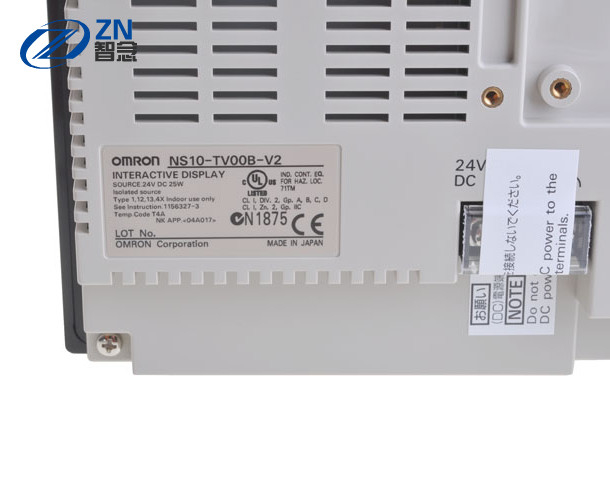

| Model Number | NS10-TV00B-V2 |
Ordering information
|
Type |
Order Code |
||
|---|---|---|---|
|
TFT, 15", 1024 x 768 pixels |
with Ethernet |
Black |
NS15-TX01B-V2 |
|
Silver |
NS15-TX01S-V2 |
||
|
TFT, 12", 800 x 600 pixels |
no Ethernet |
Black |
NS12-TS00B-V2 |
|
Ivory |
NS12-TS00-V2 |
||
|
with Ethernet |
Black |
NS12-TS01B-V2 |
|
|
Ivory |
NS12-TS01-V2 |
||
|
TFT, 10", 640 x 480 pixels |
no Ethernet |
Black |
NS10-TV00B-V2 |
|
Ivory |
NS10-TV00-V2 |
||
|
with Ethernet |
Black |
NS10-TV01B-V2 |
|
|
Ivory |
NS10-TV01-V2 |
||
|
TFT, 8.4", 640 x 480 pixels |
no Ethernet |
Black |
NS8-TV00B-V2 |
|
Ivory |
NS8-TV00-V2 |
||
|
with Ethernet |
Black |
NS8-TV01B-V2 |
|
|
Ivory |
NS8-TV01-V2 |
||
|
Item |
NS15 |
NS12 |
NS10 |
NS8 |
|---|---|---|---|---|
|
Display type |
15 inch color TFT |
12 inch color TFT |
10 inch color TFT |
8 inch color TFT |
|
Display resolution |
1024×768 (XGA) |
800×600 (SVGA) |
640×480 (VGA) |
|
|
Number of colors |
256 (32.768 for image data) |
|||
|
Backlight |
2×CCFL |
1×LED |
||
|
Backlight lifetime |
Min. 50000 hours |
|||
|
View angle |
Left/right ±85°, Top 70°, Bottom 80° |
Left/right ±60°, Top 45°, Bottom 75° |
Left/right ±60°, Top 35°, Bottom 65° |
Left/right ±65°, Top 50°, Bottom 60° |
|
Touch panel |
Analog resistive touch |
Matrix resistive touch |
||
|
Number of functional keys |
3 |
- |
||
|
Dimensions in mm (H×W×D) |
304×405×75.8 |
241×315×48.5 |
177×232×48.5 |
|
|
Weight |
4.2 kg max. |
2.5 kg max. |
2.0 kg max. |
|
|
Screen data capacity |
60 MB |
|||
|
Internal memory |
Bit memory: 32,767 bits, Word memory: 32,767 words, Retentative memory: 8,192 bits and 8,192 words. |
|||
|
Memory card interface |
1 slot ATA Compact Flash card |
|||
|
Printer connection |
PictBridge support |
|||
|
Serial (COM1) |
1×RS-232 |
|||
|
Serial (COM2) |
1×RS-232/422/485 |
1×RS-232 |
||
|
USB Slave |
For programming & printing |
|||
|
Ethernet |
IEEE 802.3u 10Base-T/100Base-TX |
|||
|
Expansion module |
Optional network/video unit |
Optional video unit |
||
|
Line voltage |
24 VDC ±15% |
|||
|
Power consumption |
45 W max. |
25 W max. |
||
|
Battery |
CJ1W-BAT01 |
|||
|
Battery lifetime |
5 years (at 25°C) |
|||
|
Enclosure rating (front side) |
IP65F (equivalent to NEMA4) |
|||
|
Obtained standards |
UL 1604 Class 1 Diff. 2, cUL, CE, Lloyds, DNV |
|||
|
Operating environment |
No corrosive gases |
|||
|
Noise immunity |
Conforms to IEC61000-4-4, 2 KV (power lines) |
|||
|
Ambient operating temperature |
0 to 50°C 1 1. see manual for details.
|
|||
|
Ambient operating humidity |
35% to 85% (0 to 40°C) with no condensation, 35% to 60% (40 to 50°C) with no condensation |
|||
