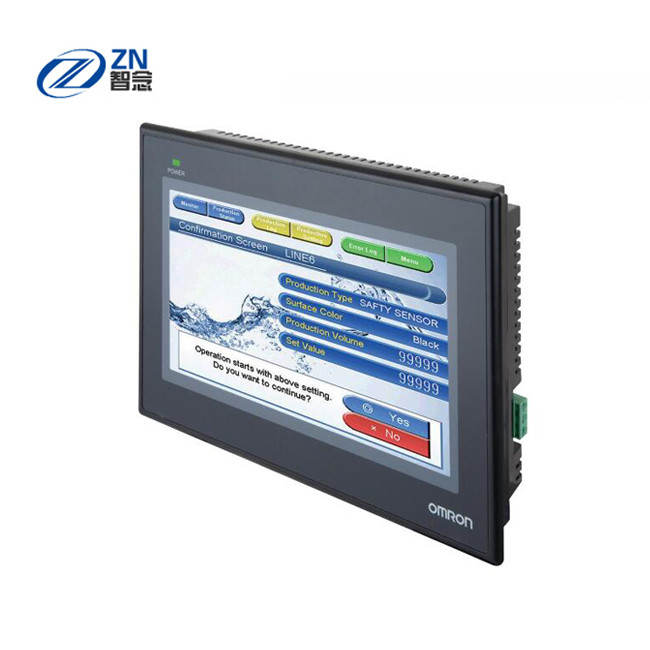

Omron HMI Touch Screen
>
|
| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | NS8-TV00B-V2 |
One-touch machine management
The NS-series is our advanced HMI series that covers a large range from 5.7" Monochrome STN to 15" TFT. Easily programmed it offers advanced features like, multiple communication possibilities, good synergy with our PLC's and other devices with Ladder monitor, Smart Active Parts and proven reliability.
One great advantage with the NS is that you can make use of Omron unique Smart Active Parts (SAP) that save you time when configuring, commissioning and maintaining your machine. SAP are pre-programmed, pre-tested visualization objects with embedded communication code, bringing 'drag and drop' simplicity to Human Machine Interface design.
Ordering information
|
Type |
Order Code |
||
|---|---|---|---|
|
TFT, 15", 1024 x 768 pixels |
with Ethernet |
Black |
NS15-TX01B-V2 |
|
Silver |
NS15-TX01S-V2 |
||
|
TFT, 12", 800 x 600 pixels |
no Ethernet |
Black |
NS12-TS00B-V2 |
|
Ivory |
NS12-TS00-V2 |
||
|
with Ethernet |
Black |
NS12-TS01B-V2 |
|
|
Ivory |
NS12-TS01-V2 |
||
|
TFT, 10", 640 x 480 pixels |
no Ethernet |
Black |
NS10-TV00B-V2 |
|
Ivory |
NS10-TV00-V2 |
||
|
with Ethernet |
Black |
NS10-TV01B-V2 |
|
|
Ivory |
NS10-TV01-V2 |
||
|
TFT, 8.4", 640 x 480 pixels |
no Ethernet |
Black |
NS8-TV00B-V2 |
|
Ivory |
NS8-TV00-V2 |
||
|
with Ethernet |
Black |
NS8-TV01B-V2 |
|
|
Ivory |
NS8-TV01-V2 |
||
Note: For the accessories, please refer to
|
Item |
NS15 |
NS12 |
NS10 |
NS8 |
|---|---|---|---|---|
|
Display type |
15 inch color TFT |
12 inch color TFT |
10 inch color TFT |
8 inch color TFT |
|
Display resolution |
1024×768 (XGA) |
800×600 (SVGA) |
640×480 (VGA) |
|
|
Number of colors |
256 (32.768 for image data) |
|||
|
Backlight |
2×CCFL |
1×LED |
||
|
Backlight lifetime |
Min. 50000 hours |
|||
|
View angle |
Left/right ±85°, Top 70°, Bottom 80° |
Left/right ±60°, Top 45°, Bottom 75° |
Left/right ±60°, Top 35°, Bottom 65° |
Left/right ±65°, Top 50°, Bottom 60° |
|
Touch panel |
Analog resistive touch |
Matrix resistive touch |
||
|
Number of functional keys |
3 |
- |
||
|
Dimensions in mm (H×W×D) |
304×405×75.8 |
241×315×48.5 |
177×232×48.5 |
|
|
Weight |
4.2 kg max. |
2.5 kg max. |
2.0 kg max. |
|
|
Screen data capacity |
60 MB |
|||
|
Internal memory |
Bit memory: 32,767 bits, Word memory: 32,767 words, Retentative memory: 8,192 bits and 8,192 words. |
|||
|
Memory card interface |
1 slot ATA Compact Flash card |
|||
|
Printer connection |
PictBridge support |
|||
|
Serial (COM1) |
1×RS-232 |
|||
|
Serial (COM2) |
1×RS-232/422/485 |
1×RS-232 |
||
|
USB Slave |
For programming & printing |
|||
|
Ethernet |
IEEE 802.3u 10Base-T/100Base-TX |
|||
|
Expansion module |
Optional network/video unit |
Optional video unit |
||
|
Line voltage |
24 VDC ±15% |
|||
|
Power consumption |
45 W max. |
25 W max. |
||
|
Battery |
CJ1W-BAT01 |
|||
|
Battery lifetime |
5 years (at 25°C) |
|||
|
Enclosure rating (front side) |
IP65F (equivalent to NEMA4) |
|||
|
Obtained standards |
UL 1604 Class 1 Diff. 2, cUL, CE, Lloyds, DNV |
|||
|
Operating environment |
No corrosive gases |
|||
|
Noise immunity |
Conforms to IEC61000-4-4, 2 KV (power lines) |
|||
|
Ambient operating temperature |
0 to 50°C 1
1. see manual for details.
|
|||
|
Ambient operating humidity |
35% to 85% (0 to 40°C) with no condensation, 35% to 60% (40 to 50°C) with no condensation |
|||
