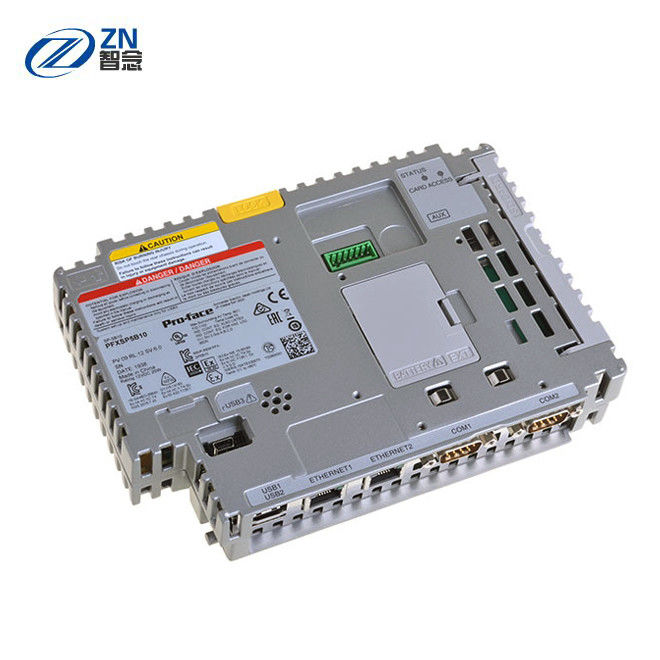

Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10
  • Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10
  • Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10

Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10

Place of Origin China/Japan
Brand Name PROFACE
Model Number PFXSP5B10
Product Details
Type:
HMI
Series:
SP5000 Series
Size:
Box (Power)
Model:
PFXSP5B10
Product Features:
Box Module High-speed Processing (Power Box)
Warranty:
1 Year
Quality:
100%Brand
Port:
Shenzhen & Guangzhou /Selectable
High Light:

PFXSP5B10 Industrial HMI Enclosures

,

Proface Industrial HMI Enclosures

,

PFXSP5B10 HMI Enclosure Box

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$100.00 - $1,000.00/Sets
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10





Product Details

Enhanced maintenance process.
New modular design
Change screen size with easy "snap on box module"
Programmable with GPPro EX v4.0 or greater or with BLUE software*
Enhanced Connectivity: 2 Ethernet ports,2COM ports,2 Type A,USB ports,1 mini USB,AUX Interface



PFXSP5B10 | Pro-Face | SP-5B10 Box Module



Functional Specifications

Supported OS
Real Time OS
Application Memory
SD card
Data Backup
NVRAM 512 KB
Serial (COM1)
RS-232C/422/485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits Parity: None, odd, or even, Data Transmission Speed: 2,400(1,200((
115,200bps Connector: D-Sub 9 pin (plug)
Serial (COM2)
RS-232C/422/485, Data Length: 7 or 8 bits Stop Bit: 1 or 2 bits Parity: None, odd, or even Data Transmission Speed: 2,400(1,200)...115,200 bps, 187,500bps (MPI) Connector: D-Sub 9 pin (plug
Ethernet (LAN)
Standard: IEEE802.3i/IEEE802.3u/IEEE802.3ab, 10BASE-T/100BASE-TX/1000BASE-T Connector: Modular jack (RJ-45) x 2
USB (TYPE-A)
Type A (V2.0) x2
USB (mini-B)
Mini B (V2.0) x1
SD Card
SD Card Slot (System) x 1, SD Card Slot (Storage) x 1
AUX/Expansion Unit
Speaker Output: 300mW (Rated Load: 8Ω, Frequency : 1kHz) LINE Output: Rated load: 10kΩ or more Connector: 2-piece terminal block (AUX) x 1



General Specifications

International Safety Standards
Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 1Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 2Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 3Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 4Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 5Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 6Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 7Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 8Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 9Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 10Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 11Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 12Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 13Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 14Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 15
Rated Input Voltage
12Vdc (Supply from Display Module)
Input Voltage Limits
10.8 to 28.8 Vdc
Allowable Voltage Drop
12 Vdc: 1.25 ms or less
24 Vdc: 5 ms or less
Power Consumption
25W (max), 12.5W or less (when power is not supplied to external devices)
In-Rush Current
30 A or less
Voltage Endurance
1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
Insulation Resistance
500 Vdc, 10 MΩ or more (between charging and FG terminals)
Surrounding Air Temperature
0 to 60 °C (32 to 140 °F)
Storage Temperature
-20 to 60 °C (-4 to 140 °F)
Storage Humidity
10% to 90% RH (Non condensing, wet bulb temperature
39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution Degree
For use in Pollution Degree 2 environment
Atmosphere
800 to 1,114 hPa (2,000 m [6,561 ft] or lower)
Vibration Resistance
IEC/EN 61131-2 compliant
Noise Immunity
Noise Voltage: 1,000 Vp-p
Pulse Duration: 1 μs
Rise Time: 1 ns
(via noise simulator)
Electrostatic Discharge Immunity
Contact Discharge Method: 6 kV (IEC/EN 61000-4-2 Level 3)
Weight Approx.
0.9kg[1.98lb] or less
External Dimensions
W188xH131xD45m[W7.4 x H5.16 x D1.77 in.]



External Dimensions



Proface Industrial HMI Enclosures Power Box SP5000 Series PFXSP5B10 16
