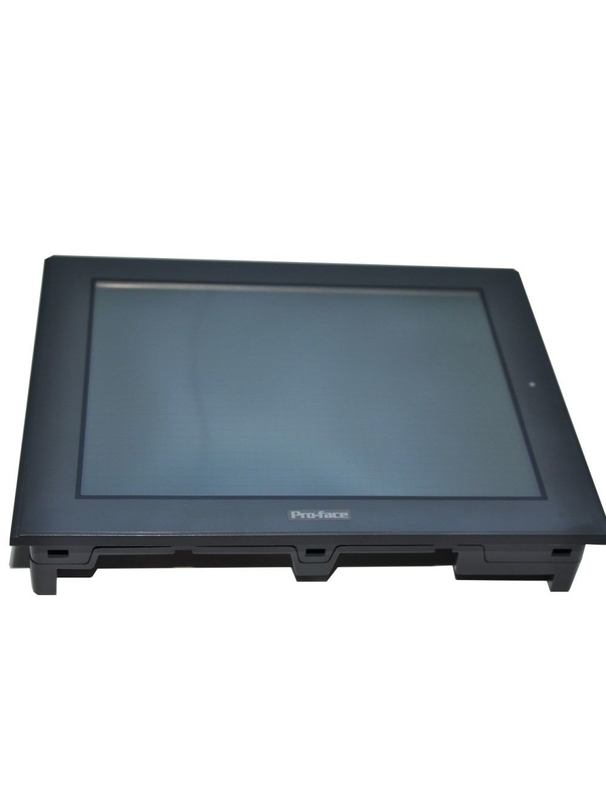

GP2600-TC11 Proface Automation Parts HMI Touch Screen
  • GP2600-TC11 Proface Automation Parts HMI Touch Screen
  • GP2600-TC11 Proface Automation Parts HMI Touch Screen
  • GP2600-TC11 Proface Automation Parts HMI Touch Screen
  • GP2600-TC11 Proface Automation Parts HMI Touch Screen
  • GP2600-TC11 Proface Automation Parts HMI Touch Screen

GP2600-TC11 Proface Automation Parts HMI Touch Screen

Place of Origin China/Japan
Brand Name Proface
Model Number GP2600-TC11
Product Details
Rated Voltage:
100~240V AC
Noise Proof:
1500Vp-p (pulse Width 1 S, Pulse Rise Time : 1ns)
Static Discharge:
Complies With IEC61000-4-2, Contact: 6kV, Air: 8kV
Cooling System:
Natural Air Cooling
Contamination Level2:
Level 2
Port:
Shenzhen & Guanzhou /Selectable
High Light:

GP2600-TC11

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$259- $399/Sets
Packaging Details
carton
Delivery Time
3-4 working days
Payment Terms
T/T, western union
Supply Ability
50 pc per week
Product Description

GP2600-TC11 Proface Automation Parts HMI Touch Screen



Model

GP2600-TC11
→Recommended Substitute

GP2600-TC41-24V
→Recommended Substitute
Type TFT Color LCD
Display Colors 256 colors (no blink)/ 64 colors (3-speed blink)
(software control)
Backlight CCFL (Service life: 50,000 hrs. at 24hr. operation)
Resolution 800 × 600 pixels
Effective Display Area (mm) 246.0(W) × 184.5(H)
Brightness Control 4 levels of adjustment available via touch panel
Contrast Control -
Language Character Sets ASCII: (Code page 850) Alphanumeric (incl. European characters)
Chinese: (GB2312-80 codes) simplified Chinese fonts
Japanese: ANK 158, Kanji : 6962 (JIS Standards 1 & 2)
Korean: (KSC5601 - 1992 codes) Hangul fonts
Taiwanese: (Big 5 codes) traditional Chinese fonts
Text 8 × 8 dots 100 char. × 75 rows
8 × 16 dots 100 char. × 37 rows
16 × 16 dots 50 char. × 37 rows
32 × 32 dots 25 char. × 18 rows
Character Sizes*2 8 × 8 dots, 8 × 16 dots, 16 × 16 dots, 32 × 32 dots
Font Sizes Width can be expanded 1 to 8 times.
Height can be expanded 1/2*3, 1 to 8 times.
Application Memory FLASH EPROM 4MB
Data Backup Memory 256 KB - uses lithium battery*4
Touch Panel Resolution 40 × 30 keys/ screen - 1 or 2 point touch
External
Interfaces
Serial Interface Asynchronous Transmission: RS232C/ RS422
Data Length: 7 or 8 bits
Stop Bit: 1 or 2 bits
Parity: None, Odd or Even
Data Transmission Speed: 2400bps to 115.2kbps, 187.5Kbps*5
Expansion Serial Interface RS-232C
Asynchronous Transmission Method: RS232C,
Data Length: 7 or 8 bits,
Stop Bit: 1 or 2 bits,
Parity: None, Odd or Even,
Data Transmission Speed: 2400 to 38400 bps
Network Interface IEEE802.3, 10BASE-T
CF Card Interface 1 slot
External CF Card Interface CF Card Front Maintenance Unit Connector
Sound Output
Interface
External Speaker Connection (Terminal Block)
Monaural 1CH
Speaker Output 70mW (Rated Load: 8Ω, Frequency: 1kHz)
Sound Line Out Output 2.7Vp-p (Rated Load: 10kΩ)
Wire Gauge: AWG28 to AWG16
AUX
Input/Output
Interface
Remote Reset Input Remote Reset Input: 1 point,
Input Voltage: DC24V ±10%,
Input Current: 4mA (TYP), Min. Input Pulse Width: 2ms
Operating Voltage: (When ON) Min. DC21.1V/ (When OFF) Max. DC3V
Isolation Method: Photocoupler Isolation
Output Output: 3 Points
(RUN Output: 1 point, System Alarm Output: 1 point, External Buzzer Output: 1 point)
Rated Voltage: DC24V,
Max. Rated Current: 50mA/ point,
Wire Gauge: AWG28 to AWG16
Printer Interface Compatible with NECPC-PR201/PL, EPSON ESC/P24-J84(C), HP Laser Jet, PCL 4 command, EPSON PM/Stylus (6-color ink), EPSON Stylus (4-color ink) compatible printers*6
Tool Connector Asynchronous TTL level nonprocedure command I/F

Used for transferring data between the GP application software and the GP.
Used for data transfer with the 2-Port feature.

Used for a variety of devices, including a bar-code reader.
