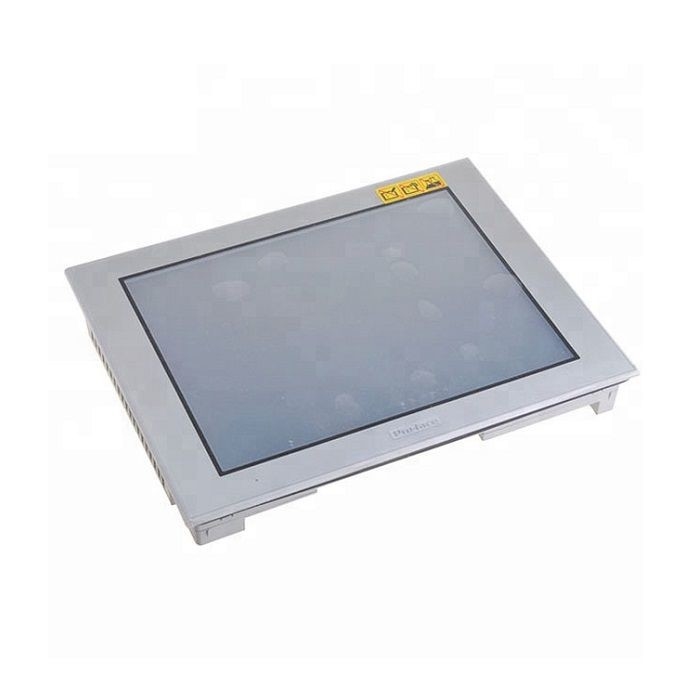

10.4 Inch LCD Proface HMI Touch Display 16 Levels PFXGP4501TMD
  • 10.4 Inch LCD Proface HMI Touch Display 16 Levels PFXGP4501TMD
  • 10.4 Inch LCD Proface HMI Touch Display 16 Levels PFXGP4501TMD
  • 10.4 Inch LCD Proface HMI Touch Display 16 Levels PFXGP4501TMD
  • 10.4 Inch LCD Proface HMI Touch Display 16 Levels PFXGP4501TMD
  • 10.4 Inch LCD Proface HMI Touch Display 16 Levels PFXGP4501TMD

10.4 Inch LCD Proface HMI Touch Display 16 Levels PFXGP4501TMD

Place of Origin China/Japan
Brand Name Proface
Model Number PFXGP4501TMD
Product Details
Condition:
100% Original And New
Warranty:
1 Year
Payment Term:
T/T In Advance, Western Union
Package:
Original Package
Shipping Term:
DHL Fedex TNT
MOQ:
1 Piece
Model:
PFXGP4501TMD
Packaging:
Original Cartons
Product Name:
PROFACE HIM
High Light:

10.4 Inch Proface HMI

,

16 Levels Proface HMI

,

PFXGP4501TMD

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
$1399 - $1599/Pieces
Packaging Details
Carton
Delivery Time
5-8 working days
Payment Terms
T/T, western union
Supply Ability
10piece per week
Product Description

New in box Proface 10.4 inch touch display PFXGP4501TMD HMI



Functional Specifications

Display Type
TFT Color LCD
Display Size
10.4"
Resolution
640 x 480 pixels (VGA)
Effective Display Area
W211.2 x H158.4 mm [W8.31 x H6.24 in.]
Display Colors
65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight
White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control
16 Levels (Adjusted with the touch panel or the software)
Backlight Service Life
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
8 x 16 dots
80 char. x 30 rows
16 x 16 dots
40 char. x 30 rows
32 x 32 dots
20 char. x 15 rows
8 x 8 dots
80 char. x 60 rows
Program Area
FLASH EPROM 132 KB (Equivalent to 15,000 steps)*1
Variable Area
SRAM 64 KB (Replaceable Lithium battery for backup memory)
Application Memory
FLASH EPROM 32 MB (including a logic program area)
Data Backup
SRAM 320 KB (Replaceable Lithium battery for backup memory)
Clock Accuracy
±65 sec/month (deviation at room temperature and power is OFF)*2
Touch Panel Type
Resistive Film (matrix)
Touch Panel Resolution
32 x 24 keys/screen
Touch Panel Service Life
1,000,000 times or more
Serial (COM1)
RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps Connector: D-Sub9 (plug)
Serial (COM2)
RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (plug)
Ethernet (LAN)
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD Card
SD Card Slot x 1
