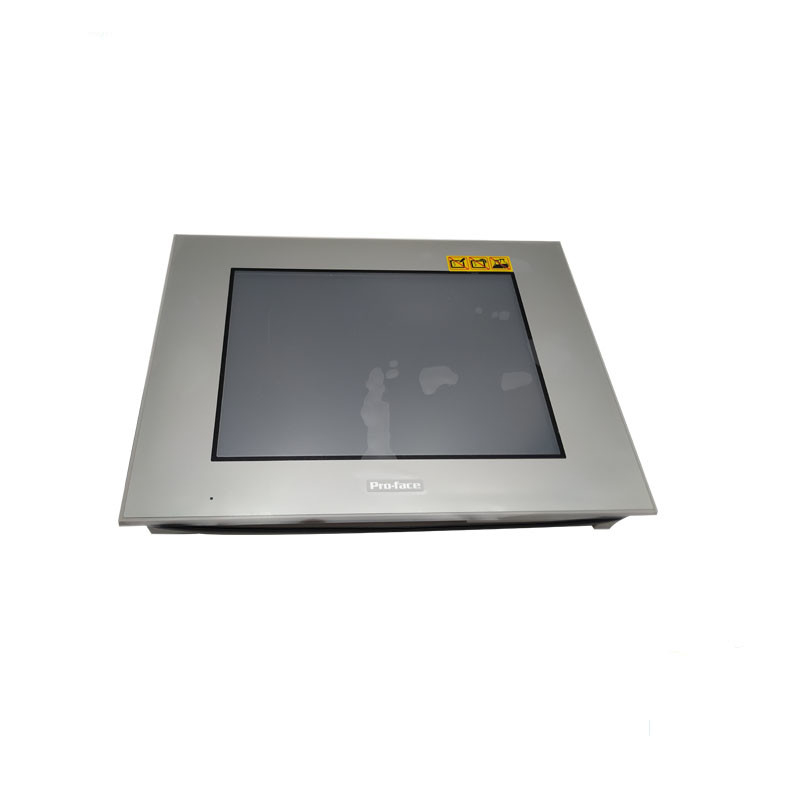

Proface HMI
>
|
|
| Place of Origin | China/Japan |
| Brand Name | Proface |
| Model Number | PFXGP4501TAD |
Standard product information
| Family | HMI |
| Series | GP4000 Series |
| Size | 10" |
| Model | PFXGP4501TAD |
| Global Code | PFXGP4501TAD |
| Product Features | 10" DC Analog |
| Repair Status | ✔ (Maintenance service is available, able to be maintained.) |
| Display type | TFT Color LCD |
| Display size | 10.4" |
| Resolution | 640 x.480 pixels (VGA) |
| Effective display area | w211.2脳H158.4 mm W8.31xH6.24 in.] |
| Display colors | 85.53d colors (No blink)/ 18,384 colors(Blink) |
| Backlight | white LED (Not user replaceable.When replacement is required,contact your local distributor.) |
| Backlight service life | 50.000 hrs.or more (each in continuous operation at25C[77 1F] before backlight brightness decreases to 50%) |
| Brightness control | 16Levels (Adjusted with touch panel or software) |
| Touch panel type | ResistiveFilm (analog) |
| Touch panel resolution | 1.024x 1.024 |
| Touch panel lifetime | 1.000.000 times or more |
| Language fonts | Japanese:8,862(J1IS Standards 1& 2)(including O07 non-kanji characters),ANkc 158(Korean,Tradional Cainese,Simplfad Chinese,Thal andCyili: can be added from the font setting of the screen editor.) |
| Character sizes | Standard font:8x8,8x15,15x18 and 32x. 32 pixel fonts,Stroke font: 8 to 127 pixel fonts, Image font 8 to 72 pixel fonts |
| Font sizes | Standard font Wdth can be expanded up to 8 times.Height can be expanded up to 8 times. |
| 8 x 8 dots | so char. x B0rows |
| 8x 16 dots | s0 char.x 20 rows |
| 16 x 16 dots | 40 char.x 30 rows |
| 32x 32 dots | 20 char.x 15rows |
| Rated input voltage | 24 vdc |
| lnput voltage limits | 19.2 to 28.8 vdc |
| Allowable voltage drop | 10 ms or less |
| Power consumption | 17W or less |
| ln-rush current | 30A or less |
| Noise immunity | Noise Woltage : 1.000 vp-p Pulse Duration : 1 ps Rise Time : 1 ns (via noise simulator) |
| Voltage endurance | 1,000 Wac,20mA for 1 minute (between power terminal and FG terminals) |
| lnsulation resistance | 500 Vdc,10 MQ or more (between power terminal and FG terminals) |
