GP-4000 Series Proface HMI Human Machine Interface PFXGP4501TMA
  • GP-4000 Series Proface HMI Human Machine Interface PFXGP4501TMA
  • GP-4000 Series Proface HMI Human Machine Interface PFXGP4501TMA
  • GP-4000 Series Proface HMI Human Machine Interface PFXGP4501TMA
  • GP-4000 Series Proface HMI Human Machine Interface PFXGP4501TMA

GP-4000 Series Proface HMI Human Machine Interface PFXGP4501TMA

Place of Origin China/Japan
Brand Name Proface
Model Number PFXGP4501TMA
Product Details
Condition:
100% Original And New
Warranty:
1 Year
Payment Term:
T/T In Advance, Western Union
Package:
Original Package
Shipping Term:
DHL Fedex TNT
MOQ:
1 Piece
Model:
PFXGP4000 Series
Port:
Selectable
High Light:

GP-4000 Proface HMI

,

Human Machine Interface Proface HMI

,

PFXGP4501TMA

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$999 - $1499.00/Pieces
Packaging Details
Carton
Delivery Time
3-4 working days
Payment Terms
T/T, western union
Supply Ability
100pieces per week
Product Description

PFXGP4501TMA Proface GP-4000 series HMI Human Machine Interface

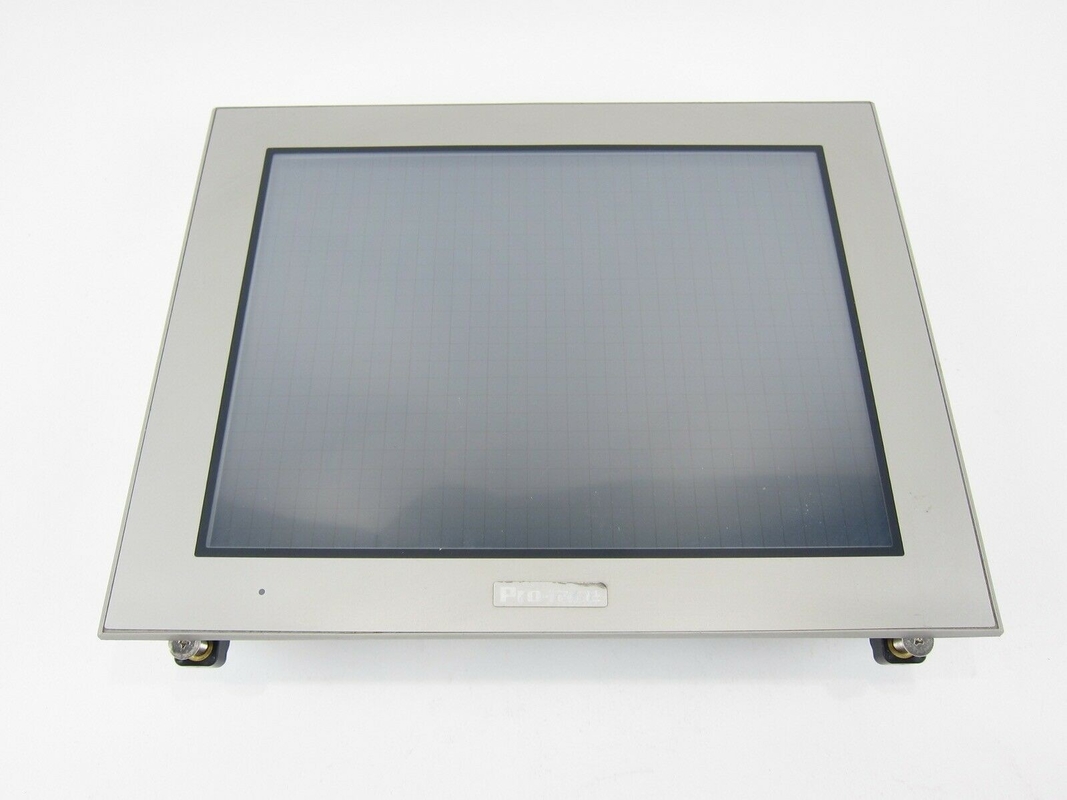

GP-4000 Series Proface HMI Human Machine Interface PFXGP4501TMA 0





Functional Specifications

Display Type
TFT Color LCD
Display Size
10.4"
Resolution
640 x 480 pixels (VGA)
Effective Display Area
W211.2 x H158.4 mm [W8.31 x H6.24 in.]
Display Colors
65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight
White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control
16 Levels (Adjusted with the touch panel or the software)
Backlight Service Life
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
8 x 16 dots
80 char. x 30 rows
16 x 16 dots
40 char. x 30 rows
32 x 32 dots
20 char. x 15 rows
8 x 8 dots
80 char. x 60 rows
Program Area
FLASH EPROM 132 KB (Equivalent to 15,000 steps)*1
Variable Area
SRAM 64 KB (Replaceable Lithium battery for backup memory)
Application Memory
FLASH EPROM 32 MB (including a logic program area)
Data Backup
SRAM 320 KB (Replaceable Lithium battery for backup memory)
Clock Accuracy
±65 sec/month (deviation at room temperature and power is OFF)*2
Touch Panel Type
Resistive Film (matrix)
Touch Panel Resolution
32 x 24 keys/screen
Touch Panel Service Life
1,000,000 times or more
Serial (COM1)
RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)
RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
Ethernet (LAN)
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD Card
SD Card Slot x 1

GP-4000 Series Proface HMI Human Machine Interface PFXGP4501TMA 1
