PFXGP4301TADW 5.7 Inch HMI Pro Face Display TFT GP4000 Series
  • PFXGP4301TADW 5.7 Inch HMI Pro Face Display TFT GP4000 Series
  • PFXGP4301TADW 5.7 Inch HMI Pro Face Display TFT GP4000 Series

PFXGP4301TADW 5.7 Inch HMI Pro Face Display TFT GP4000 Series

Place of Origin China/Japan
Brand Name Proface
Model Number PFXGP4301TADW
Product Details
Condition:
100% Original And New
Warranty:
1 Year
Payment Term:
T/T In Advance, Western Union
Package:
Original Package
Shipping Term:
DHL Fedex TNT
MOQ:
1 Piece
Packaging:
Original Cartons
Model:
PFXGP4301TADW
Product Name:
PROFACE Hmi
Quality:
At Least 1 Pc
Port:
Selectable
High Light:

HMI Pro Face Display

,

5.7 Inch Pro Face Display

,

PFXGP4301TADW

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$499.00 - $699.00/Pieces
Packaging Details
Carton packaging
Delivery Time
3-4 working days
Payment Terms
T/T, western union
Supply Ability
50 pieces per week
Product Description

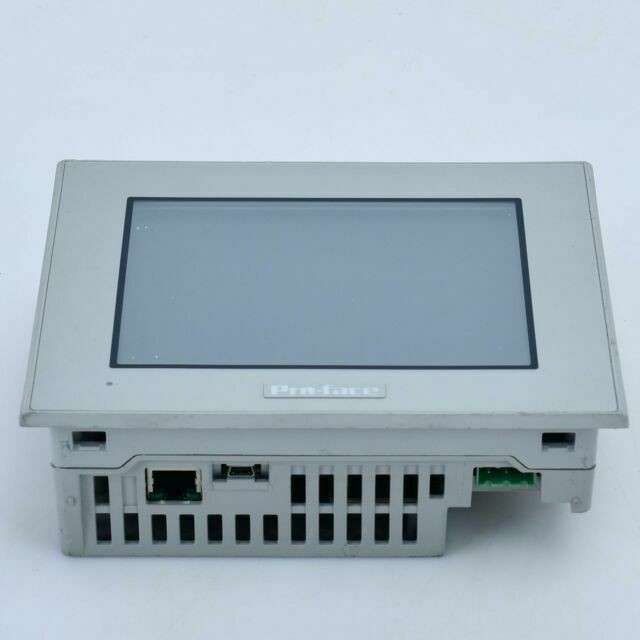

PFXGP4301TADW 5.7 Inch HMI Pro Face Display TFT GP4000 Series



PFXGP4301TADW 5.7 Inch HMI Pro Face Display TFT GP4000 Series 0

PFXGP4301TADW 5.7 Inch HMI Pro Face Display TFT GP4000 Series 1



Functional Specifications

Display Type
TFT Color LCD
Display Size
5.7"
Resolution
320 x 240 pixels (QVGA)
Effective Display Area
W115.2 x H86.4 mm [W4.54 x H3.40 in.]
Display Colors
65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight
White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control
8 Levels (Adjusted with the touch panel ot the software)
Backlight Service Life
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows
8 x 8 dots
40 char. x 30 rows
Program Area
FLASH EPROM 132 KB (Equivalent to 15,000 steps)*1
Variable Area
None
Application Memory
FLASH EPROM 8 MB (including a logic program area)
Data Backup
SRAM 128 KB (Rechargeable Lithium battery for backup memory)
Clock Accuracy
±65 sec/month (deviation at room temperature and power is OFF)*2
Touch Panel Type
Resistive Film (analog)
Touch Panel Resolution
1,024 x 1,024
Touch Panel Service Life
1,000,000 times or more
Serial (COM1)
RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)
RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Even or Odd Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
Ethernet (LAN)
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD Card
None
