NS5-TQ10B-V2 Omron NS5TQ10BV2 Programmable Terminal LCD Display 60 MB Memory
  • NS5-TQ10B-V2 Omron NS5TQ10BV2 Programmable Terminal LCD Display 60 MB Memory
  • NS5-TQ10B-V2 Omron NS5TQ10BV2 Programmable Terminal LCD Display 60 MB Memory

NS5-TQ10B-V2 Omron NS5TQ10BV2 Programmable Terminal LCD Display 60 MB Memory

Place of Origin China/Japan
Brand Name Omron
Model Number NS5-TQ10B-V2
Product Details
Warranty:
365 Days
Lead Time:
1-3 Days
Packaging:
Original Packaging
Payment:
TT/Western Union
Size:
5 - 5.7"
Main Function:
Touch Screen
Operating Temperature:
0°C ~ 50°C
Voltage - Supply:
24VDC
Interaction:
2 Built-In
Connection Type:
Compact Flash
High Light:

NS5TQ10BV2 Programmable Terminal

,

NS5-TQ10B-V2 Omron Terminal

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

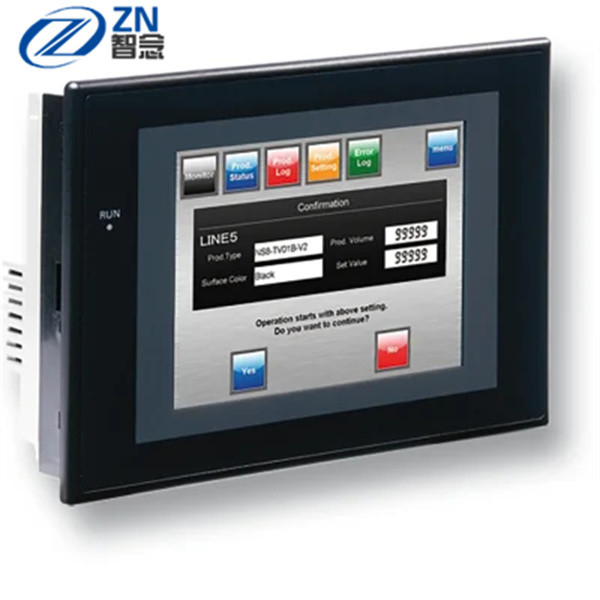

NS5-TQ10B-V2 Omron NS5TQ10BV2 Programmable Terminal, 5.7 in LCD Display ,60 MB Memory

Specifications



Series

NS5-V2

Model

NS5-
SQ10-
V2

NS5-
SQ11-
V2

NS5-
SQ10B-
V2

NS5-
SQ11B-
V2

NS5-
TQ10-
V2

NS5-
TQ11-
V2

NS5-
TQ10B-
V2

NS5-
TQ11B-
V2

Built-in Ethernet port

No

Yes

No

Yes

No

Yes

No

Yes

Case color

Ivory

Black

Ivory

Black

Display device

TFT color LCD

Color High-luminance TFT *1

Effective display area

Width 117.2 × height 88.4 mm (5.7 inches)

Display colors

256 colors

Number of dots

320 dot horizontal × 240 dot vertical

View angle

Left/right: 80 ° , Top: 80 ° , Bottom: 60 °

Screen data capacity

60 Mbytes

Image data (BMP or JPG images)

32,768 colors

Memory Card

Supported

Ladder Monitor function

Not supported

Video Input Unit support

Not supported

Controller Link Interface Unit
(Wired) support

Not supported

Backlight
*2

Service life *3

75,000 hours min.

Brightness
adjustment

Three-level or 32-level brightness adjustment from the touch panel screen. *4

Backlight error
detection *5

Error is detected automatically, and the RUN indicator flashes green as notification.

Touch
panel
(matrix
type)

Method

Matrix resistive membrane type

Number of switches/
resolution

300 (20 horizontal × 15 vertical) 16 × 16 dots for each switch

Input

Pressure-sensitive

Service life

1,000,000 touch operations.

Display
text

Labels

Can be specified in CX-Designer. Font, style, and size can be specified.

Numerals, alarms,
and character
strings

Scalable Gothic: Magnification: 6 to 255 points
Rough: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
Standard: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
Fine: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
7-segment display: Can display only numerals, dates, and times.

Supported languages
(42 languages)

Scalable Gothic, rough, standard, and fine can be used for 42 languages.
Japanese, simplified Chinese, traditional Chinese, Korean, English, French,
German, Italian, Portuguese, Spain, Swedish, Dutch, Finnish, Norwegian, Basque,
Catalan, Danish, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak,
Slovenian, Bulgarian, Belarusian, Russian, Serbian, Macedonian, Ukrainian,
Georgian, Icelandic, Afrikaans, Faroese, Indonesian, Greek, Turkish, Estonian,
Latvian, Lithuanian, Thai (supported only with scalable Gothic font)

Text
attributes

Color

256 colors

Font style (only
when vector font is
specified)

Bold or italic

Vertical alignment

Top, center, or bottom

Horizontal alignment

Left-justified, centered, or right-justified

Flicker

Objects supporting
flicker

Functional objects: Select from up to 10 types of registered flicker settings. The
flicker speed and flicker range can be set.
Fixed objects: Select from three flicker types.

Numeral units and scale settings

1.000 max.

Alarm/event settings

5,000 max.

Expansion interface

For Expansion Interface Units
(Beginning with units produced in Feb. 2018, connectors are not mounted)

*1. NS5-TQ series (high luminance TFT) luminance is better than that of NS5-SQ series by about 110 cd/m2.
*2. Contact your nearest OMRON representative to replace the backlight.
*3. This is the estimated time before brightness is reduced by half at room temperature and humidity. It is not a
guaranteed value.
The service life will be dramatically shortened if PT is used at low temperatures. For example, using the PT at
temperatures of 0°C will reduce the service life to approximately 10,000 hours (reference value).
*4. Lot No. 15Z0 or later of NS5 models.
*5. This function does not indicate that the service life has been reached. It detects when the backlight is not lit due to a
disconnection or other errors.
Backlight error detection indicates that all backlights (2) are OFF.
