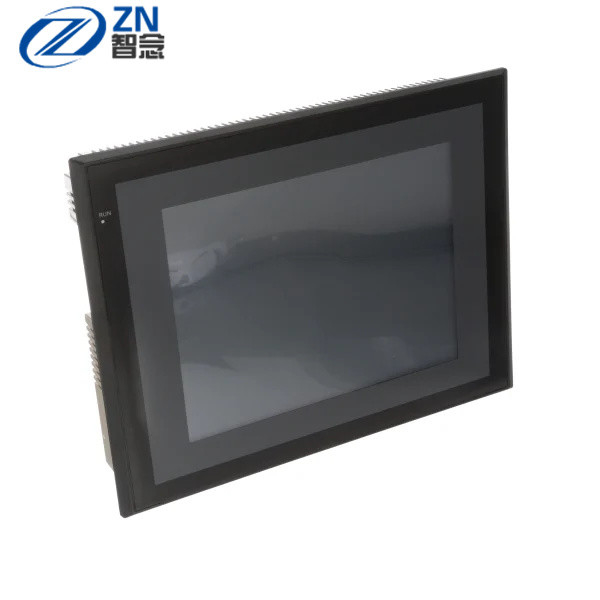

Omron HMI Touch Screen
>
|
| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | NS10-TV01B-V2 |
|
Type |
Dedicated Standard Touch Screen Human Machine Interface (HMI) |
|
Industry Standards/Certifications |
UL, CSA, CE |
|
Display Type |
Thin Film Transistor (TFT) Color Graphics Liquid Crystal Display (LCD) |
|
Display Size |
10.4 in |
|
Accessories |
CXONE, CXONELT, NS-US22, NS-US52, NS-USBEXT-1M, XW2Z-S002, CS1W-CIF31, XW2Z-200T, XW2Z-500T, NS12-ATT01, NS12-ATT01B, NS12-ATT02, NS-AL002, NS-CA001, NS-CA002, NS-CLK21, HMC-EF183, HMC-EF283, HMC-EF583, F150-VKP 2M, F150-VKP 5M, CJ1W-CIF11, V520-RH21-6, C200H-CN229-EU, XW2Z-200T-2, XW2Z-500T-2 |
|
Spare Parts |
CJ1W-BAT01, NS12-KBA04, NS12-KBA05, NS12-KBA05N |
|
Interaction |
Touch Screen |
|
Touch Screen Type |
Matrix Resistive Membrane |
|
Libraries Available |
Smart Active Parts, Keyboards, Tenkeys, Screen Templates |
|
Programmable Logic Controller (PLC)/Device Compatibility |
Omron C/CVM1/CV/CS/CJ/CP/NJ Series, Mitsubishi A/FX/Q/QnA Series, Yokogawa FA-M3R Series, Siemens S7-300 Series, Rockwell SLC500/MicroLogix/ControlLogix/CompactLogix/PLC-5, Trajexia, Yaskawa MP900/MP2000/F7 Series, 3G3MV, 3G3JV, EJ1, E5ZN, E5AR, E5ER, E5AN/-H, E5EN/-H, E5CN/-H, E5GN, PictBridge-compatible printer via USB |
|
RS-232C Port |
2 Built-In |
|
Universal Serial Bus (USB) Host |
1 Built-In |
|
Universal Serial Bus (USB) Slave |
1 Built-In |
|
Ethernet Port |
1 Built-In |
|
Printer |
PictBridge |
|
Hazardous Location |
Class 1 Division 2 |
|
Enclosure Type |
Type 1, 12, 13, 4X indoor use only |
|
Maritime Standards |
ABS, NK, LR, DNV, RINA, BV, GL, KR, CR, GOST-R, EAC |
|
Memory Card Type |
Compact Flash |
|
Mounting Orientation |
Landscape |
|
Bezel Color |
Black |
|
Ladder Monitor |
Yes |
|
FTP Web Interface |
Yes |
|
BMP-JPG Image Data |
32768 |
|
Display Colors |
256 |
|
Direct Current (DC) Supply Voltage |
24 V |
|
Depth |
49 mm |
|
Height |
241 mm |
|
Width |
315 mm |
|
Memory Size |
60 MB |
|
Effective Display Area Width |
215.2 mm |
|
Effective Display Area Height |
162.4 mm |
|
Resolution |
640 x 480 |
Package :
The outer packaging is a strong carton, and the inner packaging is a foam plastic, which is strong and safe enough to avoid damage during transportation.
Warranty :
1, We guarantee 12 months from the date of shipment.
2. Please keep in touch with us, if you have any questions, please contact us immediately, we will help you solve the problem as soon as possible. .
