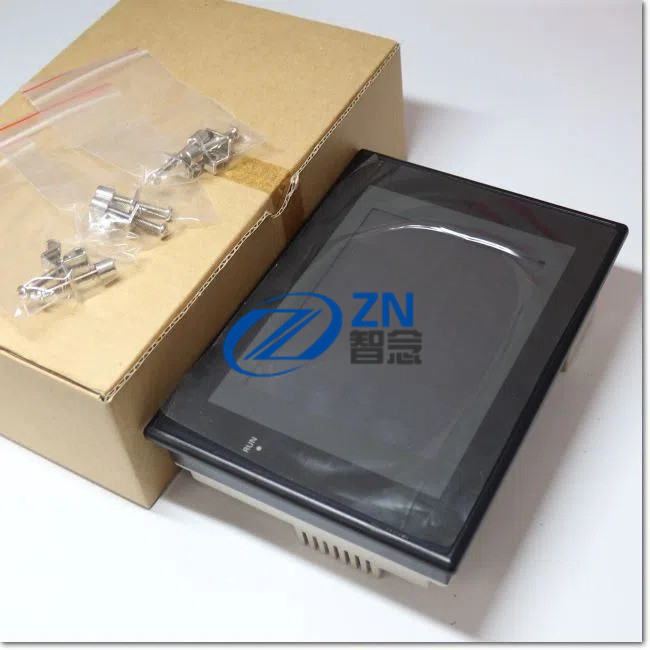

Omron HMI Touch Screen
>
|
| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | NS15-TX01B-V2 |
|
Series |
NS12-V2 |
NS15-V2 |
|||||
|---|---|---|---|---|---|---|---|
|
Model |
NS12- |
NS12- |
NS12- |
NS12- |
NS15- |
NS15- |
|
|
Built-in Ethernet port |
No |
Yes |
No |
Yes |
Yes |
Yes |
|
|
Case color |
Ivory |
Black |
Silver |
Black |
|||
|
Display device |
High-definition TFT color LCD |
High-definition TFT color LCD |
|||||
|
Effective display area |
Width 246.0 × height 184.5 mm (12.1 inches) |
Width 304.1 × height 228.1 mm |
|||||
|
Display colors |
256 colors |
||||||
|
Number of dots |
800 dot horizontal × 600 dot vertical |
1,024 dot horizontal × 768 dot |
|||||
|
View angle |
Left/right: 80°, Top: 80°, Bottom: 80° *3 |
Left/right: 80 °, Top: 70 °, |
|||||
|
Screen data capacity |
60 Mbytes |
||||||
|
Image data (BMP or JPG images) |
32,768 colors |
||||||
|
Memory Card |
Supported |
||||||
|
Ladder Monitor function |
Supported |
||||||
|
Video Input Unit support |
Supported (Image displayed via video input is |
(Only RGB input is enabled.) |
|||||
|
Controller Link Interface Unit |
Supported |
||||||
|
Backlight |
Service life *2 |
50,000 hours min. |
|||||
|
Brightness |
Three-level or 32-level brightness adjustment from the touch panel screen. *3 |
||||||
|
Backlight error |
Error is detected automatically, and the RUN indicator flashes green as |
||||||
|
Touch |
Method |
Matrix resistive membrane type |
Analog resistive membrane |
||||
|
Number of switches/ |
1,900 (50 horizontal × 38 vertical) |
Resolution: 1,024 (horizontal) × |
|||||
|
Input |
Pressure-sensitive |
||||||
|
Service life |
1,000,000 touch operations. |
||||||
|
Display |
Labels |
Can be specified in CX-Designer. Font, style, and size can be specified. |
|||||
|
Numerals, alarms, |
Scalable Gothic: Magnification: 6 to 255 points |
||||||
|
Text |
Color |
256 colors |
|||||
|
Font style (only |
Bold or italic |
||||||
|
Vertical alignment |
Top, center, or bottom |
||||||
|
Horizontal alignment |
Left-justified, centered, or right-justified |
||||||
|
Flicker |
Objects supporting |
Functional objects: Select from up to 10 types of registered flicker settings. The |
|||||
|
Numeral units and scale settings |
1.000 max. |
||||||
|
Alarm/event settings |
5,000 max. |
||||||
|
Expansion interface |
For Expansion Interface Units |
||||||
*1. Contact your nearest OMRON representative to replace the backlight.
*2. This is the estimated time before brightness is reduced by half at room temperature and humidity. It is not a
guaranteed value.
The service life will be dramatically shortened if PT is used at low temperatures. For example, using the PT at
temperatures of 0 °C will reduce the service life to approximately 10,000 hours (reference value).
*3. Lot No. 28X1 or later of NS8 models, Lot No. 11Y1 or later of NS10 models, Lot No. 14Z1 or later of NS12 models,
Lot No. 31114K or later of NS15 models.
*4. This function does not indicate that the service life has been reached. It detects when the backlight is not lit due to a
disconnection or other errors.
Backlight error detection indicates that all backlights (2) are OFF.
*5. An analog touch panel is used with the NS15. Do not press the touch panel in two or more places simultaneously.
If the touch panel is pressed in two or more places simultaneously, it may activate a switch between the points that
are pressed.
