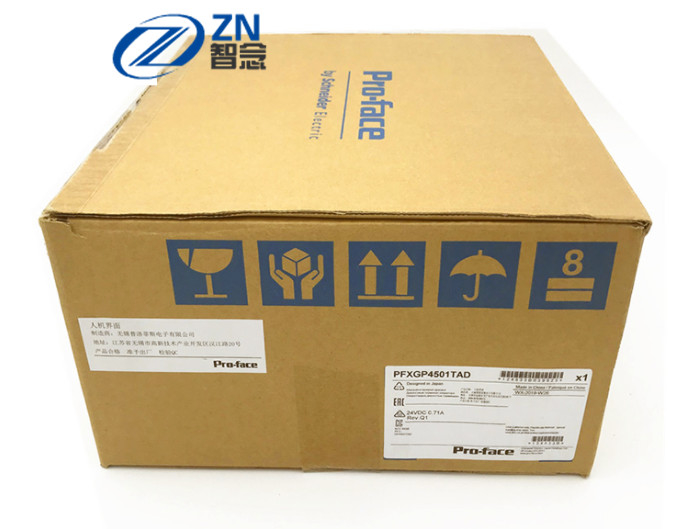

PFXGP4501TAD Proface GP4000 Series Touch Screen HMI In Stock Fast Delivery
  • PFXGP4501TAD Proface GP4000 Series Touch Screen HMI In Stock Fast Delivery
  • PFXGP4501TAD Proface GP4000 Series Touch Screen HMI In Stock Fast Delivery
PFXGP4501TAD Proface GP4000 Series Touch Screen HMI In Stock Fast Delivery

PFXGP4501TAD Proface GP4000 Series Touch Screen HMI In Stock Fast Delivery

Place of Origin China
Brand Name Proface
Model Number PFXGP4501TAD
Product Details
Brand:
Proface
Condition:
New And Original
Series:
GP4000 Series
Size:
10"
Product Features:
10" DC Analog
Highlight:

GP4000 Series Touch Screen HMI

,

PFXGP4501TAD Proface HMI

,

24Vdc Touch Screen HMI

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$150-$2000
Packaging Details
Carton packaging
Delivery Time
3-5working days
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

PFXGP4501TAD Proface GP4000 Series Touch Screen HMI In Stock Fast Delivery



Rated input voltage : 24 Vdc
Input voltage limits: 19.2 to 28.8 Vdc
Allowable voltage drop: 10 ms or less
Power consumption : 17 W or less
In-rush current : 30 A or less
Noise immunity:
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
Voltage endurance : 1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
Insulation resistance : 500 Vdc, 10 MΩ or more (between power terminal and FG terminals)




Display specifications
Display type
TFT Color LCD
Display size
10.4"
Resolution
640 x 480 pixels (VGA)
Effective display area
W211.2 x H158.4 mm [W8.31 x H6.24 in.]
Display colors
65,536 colors (No blink) / 16,384 colors (Blink)
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
16 Levels (Adjusted with touch panel or software)
Touch panel type
Resistive Film (analog)
Touch panel resolution
1,024 x 1,024
Touch panel lifetime
1,000,000 times or more
Language fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
8 x 8 dots
80 char. x 60 rows
8 x 16 dots
80 char. x 30 rows
16 x 16 dots
40 char. x 30 rows
32 x 32 dots
20 char. x 15 rows





PFXGP4501TAD Proface GP4000 Series Touch Screen HMI In Stock Fast Delivery 0

PFXGP4501TAD Proface GP4000 Series Touch Screen HMI In Stock Fast Delivery 1

PFXGP4501TAD Proface GP4000 Series Touch Screen HMI In Stock Fast Delivery 2
