PFXGP4601TAD 12 Inch Panel Display Controller Proface HMI GP4000 Series
  • PFXGP4601TAD 12 Inch Panel Display Controller Proface HMI GP4000 Series
  • PFXGP4601TAD 12 Inch Panel Display Controller Proface HMI GP4000 Series
PFXGP4601TAD 12 Inch Panel Display Controller Proface HMI GP4000 Series

PFXGP4601TAD 12 Inch Panel Display Controller Proface HMI GP4000 Series

Place of Origin China
Brand Name Proface
Model Number PFXGP4501TAD
Product Details
Brand:
Proface
Condition:
New And Original
Series:
GP4000 Series
Size:
12"
Product Features:
12" DC Analog
High Light:

PFXGP4601TAD Proface HMI

,

12Inch Panel Display Controller Proface HMI

,

GP4000 Series Proface HMI

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$150-$2000
Packaging Details
Carton packaging
Delivery Time
3-5working days
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

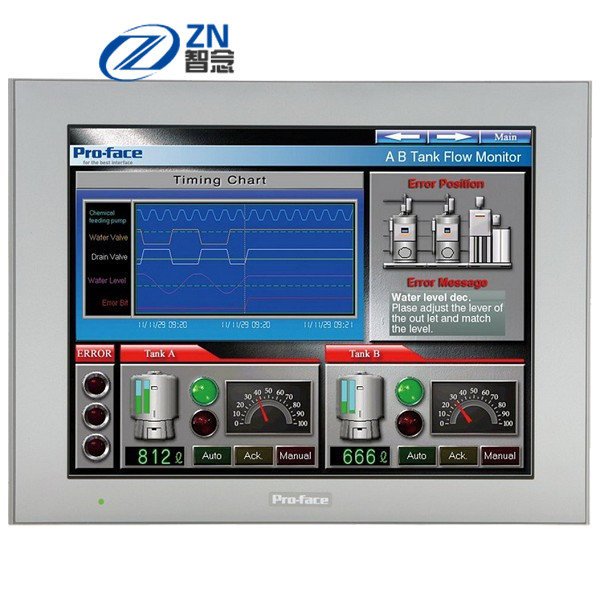

PFXGP4601TAD 12 Inch Panel Display Controller Proface HMI GP4000 Series



Display specifications
Display type
TFT Color LCD
Display size
12.1"
Resolution
800 x 600 pixels (SVGA)
Effective display area
W246.0 x H184.5 mm [W9.69 x H7.26 in.]
Display colors
65,536 colors (No blink) / 16,384 colors (Blink)
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
16 Levels (Adjusted with touch panel or software)
Touch panel type
Resistive Film (analog)
Touch panel resolution
1,024 x 1,024
Touch panel lifetime
1,000,000 times or more
Language fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
8 x 8 dots
100 char. x 75 rows
8 x 16 dots
100 char. x 37 rows
16 x 16 dots
50 char. x 37 rows
32 x 32 dots
25 char. x 18 rows

1Other font sizes can be set up with the Editor software.

Electrical specifications
Rated input voltage
24 Vdc
Input voltage limits
19.2 to 28.8 Vdc
Allowable voltage drop
10 ms or less
Power consumption
17 W or less
In-rush current
30 A or less
Noise immunity
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
Voltage endurance
1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Memory
Application memory
When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 32MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: 8MB
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None

Removable System: No
Backup memory
When using GP-Pro EX:
- Screen Area: SRAM 320KB
- Variable Area: SRAM 64KB

Battery: Replaceable battery / Primary battery for clock data backup
Clock accuracy
±65 sec./month (deviation at room temperature and power is OFF)*2

2Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec./month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.

Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
Serial (COM2)
Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA or less
Communication distance: 5 m [16.4 ft.] or less
USB (mini-B)
Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less
Ethernet
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
SD card
SD Card Slot x 1
Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Cooling method
Natural air circulation
Structure
IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*3
External dimensions
W315 x H241 x D56 mm [W12.4 x H9.49 x D2.20 in.]
Panel cut-out dimensions
W301.5 x H227.5 mm [W11.87 x H8.96 in.]
Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*4
Weight
2.5 kg [5.5 lb] or less
