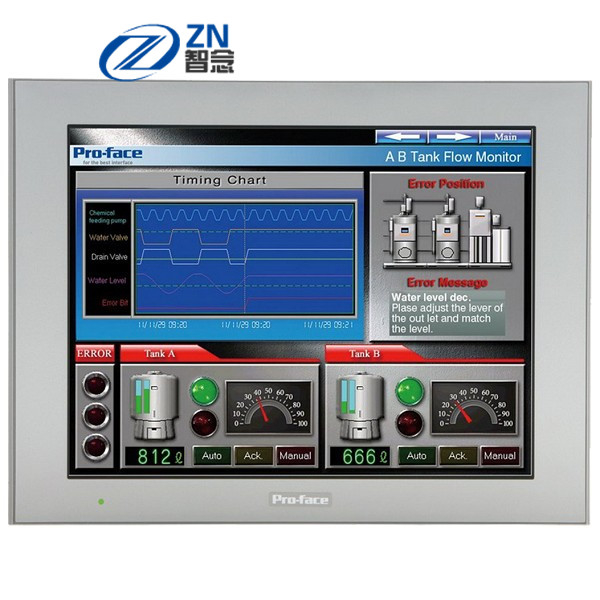

PFXGP4402WADW Proface Hot Sale HMI 7 Inch LED Touch Screen
  • PFXGP4402WADW Proface Hot Sale HMI 7 Inch LED Touch Screen
  • PFXGP4402WADW Proface Hot Sale HMI 7 Inch LED Touch Screen
  • PFXGP4402WADW Proface Hot Sale HMI 7 Inch LED Touch Screen
PFXGP4402WADW Proface Hot Sale HMI 7 Inch LED Touch Screen

PFXGP4402WADW Proface Hot Sale HMI 7 Inch LED Touch Screen

Place of Origin China/Japan
Brand Name Proface
Model Number PFXGP4402WADW
Product Details
Brand:
Proface
Condition:
New
Lead Time:
Stock
MOQ:
1
Place Of Origin:
China/Japan
Currency:
USD/RMB
Warranty:
12 Month
Shipping Term:
DHL/TNT/UPS/FEDEX Etc
Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
USD100-5000/pc
Packaging Details
Carton packaging
Delivery Time
3-5working days
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description
Standard product information
Family
HMI
Series
GP4000E Series
Size
7" Wide
Model
PFXGP4402WADW
Global Code
PFXGP4402WADW
Display specifications
Display type
TFT Color LCD / Resistive Film (analog)
Display size
7" Wide
Resolution
800 x 480 pixels (WVGA)
Effective display area
W154.08 x H85.92 mm [W6.066 x H3.382 in.]
Display colors
65,536 colors
Backlight
LED
Backlight service life
20,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)*1
Brightness control
8 Levels (Adjusted with touch panel)
Touch panel type
Resistive Film (analog)
Touch panel lifetime
1,000,000 times or more, Sweeping 100,000 times or more
Language fonts
ASCII: (code page 850) alphanumeric (including European characters)
Chinese (simplified): GB2312-80 codes
Japanese: ANK 158, Kanji: 6,962 (JIS standards 1 & 2) (including 607 nonkanji characters)
Korean: (KSC5601 - 1992 codes) Hangul fonts
Chinese (traditional): BIG 5 codes*2
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts
Font sizes
Width can be expanded 1, 2, 4, and 8 times. Height can be expanded 1/2, 1, 2, 4, and 8 times.
8 x 8 dots
40 char. x 30 rows
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows

1To save the life of the backlight, set the panel in standby mode which automatically turns the backlight off when no touch input is detected within a set time.

2The display font differs depending on which (language) character, or which size you select. Also, if GP-Pro EX software is used, additional high-quality fonts are available with 16 x 16 or larger characters.

Electrical specifications
Rated input voltage
24 Vdc
Allowable voltage drop
1 ms or less with lowest input voltage, 10 ms or less with rated input voltage
Power consumption
9.2 W or less
In-rush current
50 A or less*3
Voltage endurance
600 Vac, 20 mA for 1 minute
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

3For in-rush current, the FWHM (full-width, half maximum) value is approximately 50 μs(when exceeding 25 A).

Environmental specifications
International safety standards
Surrounding air temperature
0 to 50 °C [32 to 122 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN60068-2-6, 5 to 150 Hz, 3.5 mm (0.38 in) max., 1gn pm 3 axes
Concussion resistance
IEC 60068-2-27, 1/2 sinusoidal pulse for 11 ms, 15g on 3 axes
Electrostatic discharge immunity
EN/IEC 61131-2, 4 kV direct contact, 8 kV air contact
Electromagnetic compatibility (EMC)
IEC 61000 - 4 - 5, 0.5 kV (Differential Mode on power supply), 1 kV (Common Mode on power supply)
Memory
Application memory
FLASH EPROM 32 MB*4
Backup memory
FLASH EPROM 128 KB
Clock accuracy
Variations in operating conditions and battery life can cause a clock inaccuracy from -380 to +90 seconds per month.

4Capacity available for user application. The capacity depends on how many fonts you load from Editor software.

Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
Serial (COM2)
Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 187,500 bps, Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Communication distance: 3 m [9.84 ft.] or less
USB (mini-B)
Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 3 m [9.84 ft] or less
Ethernet
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
Structural specifications
Cooling method
Natural air circulation
Structure
Front Panel: IP65 (IEC60529), Enclosure type 4 indoor use only (UL 50) with screw installation fasteners, Rear Panel: IP20 (IEC 60529)
External dimensions
W207 x H152.4 x D38.2 mm [W8.15 x H6 x D1.5 in.]
Dimensions
External dimensions
Panel cut-out dimensions
A B C (Panel thickness) R
190 ± 1 mm
[7.48 ± 0.04 in.]		 135 ± 0.7 mm
[5.31 ± 0.03 in.]		 1 to 5 mm
[0.04 to 0.19 in.]		 3 mm
[0.12 in.] max.
External dimensions with cable
