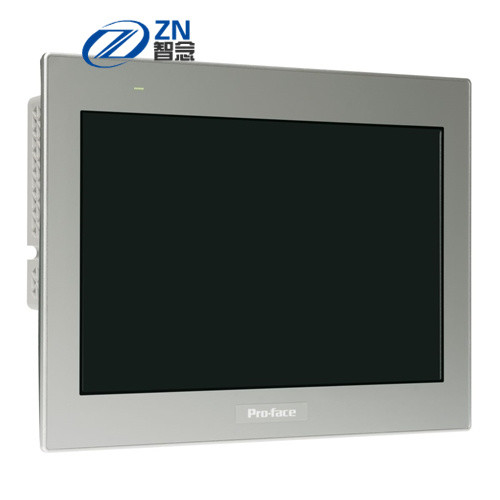

PFXGM4201TAD Proface HMI 7 Inch LED Backlight Touch Screen 320 x 240 pixels
  • PFXGM4201TAD Proface HMI 7 Inch LED Backlight Touch Screen 320 x 240 pixels
  • PFXGM4201TAD Proface HMI 7 Inch LED Backlight Touch Screen 320 x 240 pixels
  • PFXGM4201TAD Proface HMI 7 Inch LED Backlight Touch Screen 320 x 240 pixels
  • PFXGM4201TAD Proface HMI 7 Inch LED Backlight Touch Screen 320 x 240 pixels
PFXGM4201TAD Proface HMI 7 Inch LED Backlight Touch Screen 320 x 240 pixels

PFXGM4201TAD Proface HMI 7 Inch LED Backlight Touch Screen 320 x 240 pixels

Place of Origin China/Japan
Brand Name Proface
Model Number PFXGM4201TAD
Product Details
Brand:
Proface
Condition:
New
Lead Time:
Stock
MOQ:
1
Place Of Origin:
China/Japan
Currency:
USD/RMB
Warranty:
12 Month
Shipping Term:
DHL/TNT/UPS/FEDEX Etc
Highlight:

PFXGM4201TAD Proface HMI

,

320 x 240 pixels Proface HMI

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
USD100-5000/pc
Packaging Details
Carton packaging
Delivery Time
3-5working days
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

PFXGM4201TAD Proface HMI 7 Inch LED Backlight Touch Screen



Standard product information
Family
HMI
Series
GP4000M Series
Size
3"
Model
PFXGM4201TAD
Global Code
PFXGM4201TAD
Product Features
Modular 3" DC Analog
Repair Status
- (Maintenance service is not available. Replace with a new unit under warranty.)
Display specifications
Display type
TFT Color LCD
Display size
3.5"
Resolution
320 x 240 pixels (QVGA)
Effective display area
W70.56 x H52.92 mm [W2.78 x H2.08 in.]
Display colors
65,536 colors
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
16 Levels (Adjusted with touch panel or software)
Touch panel type
Resistive Film (analog)
Touch panel lifetime
1,000,000 times or more
Language fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
8 x 8 dots
40 char. x 30 rows
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows

1Other font sizes can be set up with the Editor software.

Electrical specifications
Rated input voltage
24 Vdc
Input voltage limits
20.4 to 28.8 Vdc
Allowable voltage drop
10 ms or less
Power consumption
6.5 W or less
In-rush current
30 A or less
Noise immunity
IEC61000-4-4, 2kV Power port, 1kV Signal ports
Voltage endurance
1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Environmental specifications
International safety standards
Surrounding air temperature
0 to 50 °C [32 to 122 °F]*2
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant, 5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
Electrostatic discharge immunity
IEC61000-4-2, 6 kV direct contact, 8 kV air contact
Drop resistance
IEC/EN 61131-2 compliant, 147 m/s2, x,y,z 3 directions

2When using in an environment where the temperature becomes or exceeds 40 °C for an extended period of time, the screen contrast level may decrease from its original level of brightness.

Memory
Application memory
When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 8MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: None
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None

Removable System: No*3
Backup memory
When using GP-Pro EX:
- Screen Area: nvSRAM 128KB
- Variable Area: None

Battery: None*4
Clock accuracy
Uses the clock of an external device*5

Tags:

PLC Proface HMI,

12.1 Inch Proface HMI,

5.7 Inch Proface HMI

Recommended Products

CONTACT US AT ANY TIME

86-180-38289380
Room1504,6th Building,GaoSheng Times Square,No.798 zhongYiyi Road,Yuhua District,Changsha City,Hunan,China
8618038289380
live:info-zny
+8618038289380
info-zny@zhinianauto.com
Send your inquiry directly to us
