PFXGP4402WADW 7"GP-4402WW Proface HMI Original Touch Screen Display
  • PFXGP4402WADW 7
  • PFXGP4402WADW 7
  • PFXGP4402WADW 7
PFXGP4402WADW 7

PFXGP4402WADW 7"GP-4402WW Proface HMI Original Touch Screen Display

Place of Origin China/Japan
Brand Name Proface
Model Number PFXGP4402WADW
Product Details
Warranty:
12 Months
Delivery Time:
5-8 Days
Display Type:
TFT Color LCD
Shipping Term:
DHL,FedEx
Display Size:
7.0"
Main Function:
HMI / Display Unit
Surrounding Air Temperature:
0°C -50°C
Rated Input Voltage:
24VDC
Display Colors:
65,536 Colors
Backlight:
LED
Highlight:

GP-4402WW Proface HMI

,

7in Proface HMI

,

PFXGP4402WADW Proface HMI Display

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

PFXGP4402WADW 7"GP-4402WW Proface HMI Original Touch screen Display

Specifications



Display specifications
Display type
TFT Color LCD / Resistive Film (analog)
Display size
7" Wide
Resolution
800 x 480 pixels (WVGA)
Effective display area
W154.08 x H85.92 mm [W6.066 x H3.382 in.]
Display colors
65,536 colors
Backlight
LED
Backlight service life
20,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)*1
Brightness control
8 Levels (Adjusted with touch panel)
Touch panel type
Resistive Film (analog)
Touch panel lifetime
1,000,000 times or more, Sweeping 100,000 times or more
Language fonts
ASCII: (code page 850) alphanumeric (including European characters)
Chinese (simplified): GB2312-80 codes
Japanese: ANK 158, Kanji: 6,962 (JIS standards 1 & 2) (including 607 nonkanji characters)
Korean: (KSC5601 - 1992 codes) Hangul fonts
Chinese (traditional): BIG 5 codes*2
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts
Font sizes
Width can be expanded 1, 2, 4, and 8 times. Height can be expanded 1/2, 1, 2, 4, and 8 times.
8 x 8 dots
40 char. x 30 rows
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows



1To save the life of the backlight, set the panel in standby mode which automatically turns the backlight off when no touch input is detected within a set time.

2The display font differs depending on which (language) character, or which size you select. Also, if GP-Pro EX software is used, additional high-quality fonts are available with 16 x 16 or larger characters.



Electrical specifications
Rated input voltage
24 Vdc
Allowable voltage drop
1 ms or less with lowest input voltage, 10 ms or less with rated input voltage
Power consumption
9.2 W or less
In-rush current
50 A or less*3
Voltage endurance
600 Vac, 20 mA for 1 minute
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

3For in-rush current, the FWHM (full-width, half maximum) value is approximately 50 μs(when exceeding 25 A).

Features



• 10" wide screen with 65k colors

• Flexible networking connectivity options: embedded ethernet port, and two serial ports supporting over 90 protocols

• Supports both landscape and portrait modes

• Advanced software features supported on an economical hardware platform

• Real time clock with replaceable battery

• Compatible with EZ Series HMI USB accessories (Towerlight, Fingerprint Reader, Illuminated Push Buttons, Numpad)

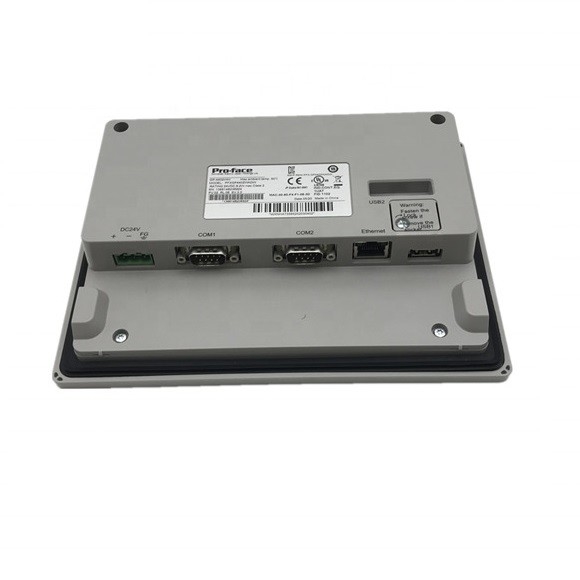

PFXGP4402WADW 7"GP-4402WW Proface HMI Original Touch Screen Display 0

PFXGP4402WADW 7"GP-4402WW Proface HMI Original Touch Screen Display 1
