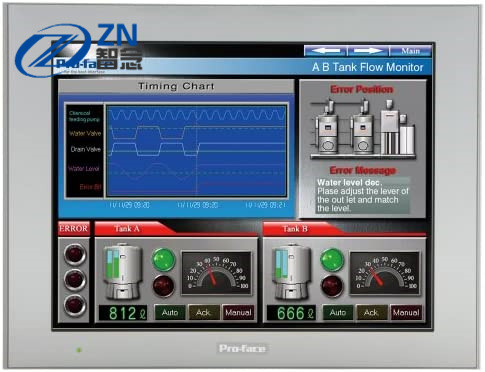

| Place of Origin | China/Japan |
| Brand Name | Proface |
| Model Number | PFXGP4603TAD |
Display specifications:
Display type : TFT Color LCD
Display size : 12.1"
Resolution : 800 x 600 pixels (SVGA)
Effective display area : W246.0 x H184.5 mm [W9.69 x H7.26 in.]
Display colors : 65,536 colors (No blink) / 16,384 colors (Blink)
Backlight : White LED
Backlight service life: 50,000 hrs. or more (each in continuous operation at 25 °C [77 °F]
before backlight brightness decreases to 50%)
Brightness control: 16 Levels (Adjusted with touch panel or software)
Touch panel type: Resistive Film (analog)
Touch panel resolution: 1,024 x 1,024
Touch panel lifetime : 1,000,000 times or more
Electrical specification
| Rated input voltage | 24 Vdc |
| Input voltage limits | 19.2 to 28.8 Vdc |
| Allowable voltage drop | 10 ms or less |
| Power consumption | 17 W or less |
| In-rush current | 30 A or less |
| Noise immunity | Noise Voltage : 1,000 Vp-p Pulse Duration : 1 µs Rise Time : 1 ns (via noise simulator) |
| Voltage endurance | 1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals) |
| Insulation resistance | 500 Vdc, 10 MΩ or more (between power terminal and FG terminals) |
