| Place of Origin | China/Japan |

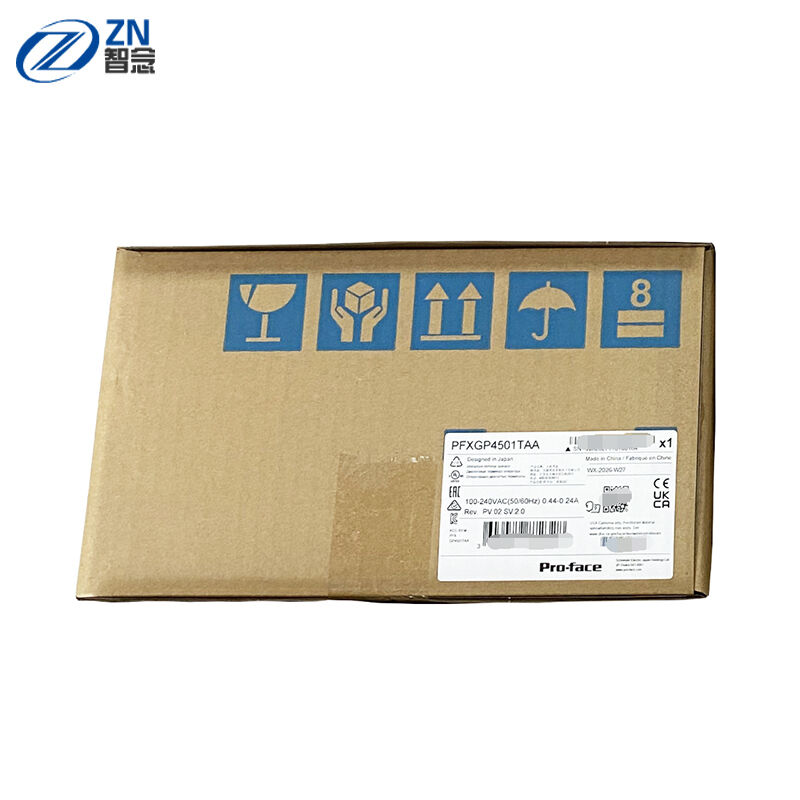

| Model Number | PFXGP4501TAA |
| Display type | TFT true color LCD |
| Display size | 10.4" |
| resolution | 640 x 480 pixels (VGA) |
| Effective display area | W211.2 x H158.4 mm |
| Display color | 65,536 colors (flicker-free) / 16,384 colors (flicker-free) |
| Backlight | White LED (Do not replaceable by the user. Please contact your local Pro-face branch for replacement). |
| Backlight lifespan | Over 50,000 hours (continuous operation at 25°C - brightness drops to 50% of original or backlight starts to flicker) |
| Brightness adjustment | 16 levels of adjustment are available via touch panel or software. |
| Touch panel type | Resistive (Analog) |
| Touch panel resolution | 1,024 x 1,024 |
| Touch panel lifespan | More than 1,000,000 times |
| Language font | Japanese: 6,962 (Japanese Industrial Standard 1 & 2) (including 607 non-Kanji characters), ANK: 158 (Korean, Simplified Chinese, and Traditional Chinese available for download) |
