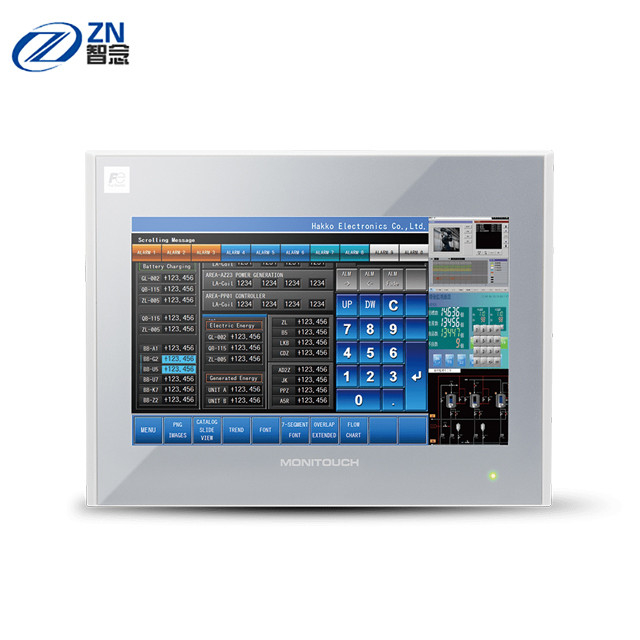

Fuji Electric HMI
>
|
| Place of Origin | China/Japan |
| Brand Name | Fuji |
| Model Number | V9080ICD |
| V9080iC | ||
|---|---|---|
| Power supply | Rated voltage | DC24V |
| Permissible range of voltage | ±10％ | |
| Permissible momentary power failure | within 1ms | |
| Demand (maximum rating) | 17W or less | |
| Insulation resistance | DC500V 10MΩ or more | |
| Physical environment | Ambient temperature | 0～50℃*1 |
| Ambient humidity | 85%RH or less (without dew condensation)*1 | |
| Operation altitude | 2,000 meters or lower | |
| Atmosphere | Not to be exposed to corrosive gas, or conductive dust | |
| Storage temperature | -10～60℃*1 | |
| Storage temperature | 85%RH or less (without dew condensation)*1 | |
| Overvoltage category | Category II | |
| Pollution degree | Pollution degree 2 | |
| Mechanical operating conditions | Resistance to oscillation | Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5-9Hz, pulsating with:3.5mm, 9-150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each) |
| Resistance to shock | Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total) |
|
| Electric operating conditions | Resistance to noise | Noise voltage: 1,500Vp-p, pulse width: 1μs, pulse rise time: 1ns |
| Resistance to static discharge | Complies with IEC61000-4-2, contact: 6kV, air: 8kV | |
| Installation conditions | Grounding | Grounding resistance: Less than 100Ω, FG/SG separation |
| Structure | Front panel:Complies with IP66, Type 4X/13 *2 (when waterproof gasket is installed) Rear cover:Complies with IP20 Form: Single unit, Installation method: Panel mounting |
|
| Cooling system | Natural air cooling | |
| Dimensions W*H*D(mm) | 235.0×180.0×48.9 | |
| Dimensions W*H*D(mm) | 220.5×165.5(+0.5/-0) | |
| Case color | Light gray (black front housing for black model) |
|
| Material | PC resin | |
| Screen memory (FROM) | 64MB | |
|---|---|---|
| Backup memory (SRAM) | 800KB | |
| Display | Display device | TFT color LCD |
| Resolution | 640×480 | |
| Display size | 8.4″ | |
| Colors | 16.7 million *3 | |
| Backlight | LED | |
| Backlight life | 70,000 hours | |
| Touch switch | Type | Analog resistance film |
| Function switch | Quantity | 8 |
| External interface | D-Sub 9-pin (CN1) | RS-232C/ RS-485(2-wire system)/ RS-422(4-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500*4 bps |
| Modular 8-pin (MJ1/ MJ2) |
RS-232C/ RS-485(2-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps |
|
| SD card | One card slot provided as standard | |
| Ethernet | 1ch, Baud rate: 100Mbps, 10Mbps |
|
| Wireless LAN | - | |
| USB | Type A,Type mini-B(Ver.2.0) | |
| Sound output | - | |
| Clock | Backup period | 5 years (Ambient temperature 25°C) |
| Calendar accuracy | Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied) | |
| Standard | CE marking | EN61000-6-2,EN61000-6-4 |
| UL･cUL*5 | UL61010-1,UL61010-2-201 | |
| KC*6 | Compliant | |
| Radio Act | - | |
| Classification Standard | - |
(Unit: mm)
| Side view | Front view | Rear view |
|---|---|---|
|
|
|
| Bottom view | Panel cutout |
|---|---|
|
|
DisplayFunction switchPower lampCommunication unit connector (EXT1)Fall prevention hookOptional unit connector (EXT2)SD card access LEDBattery holderDIP switchUSB cable holding holeSD card connectorSound output connector (AUDIO)Power input terminal blockModular jack 1 (MJ1)Modular jack 2 (MJ2)PLC connector (CN1)100BASE-TX/10BASE-T port (LAN)USB-A(U-A)USB mini-B(U-B)Screw holeCONTACT US AT ANY TIME
