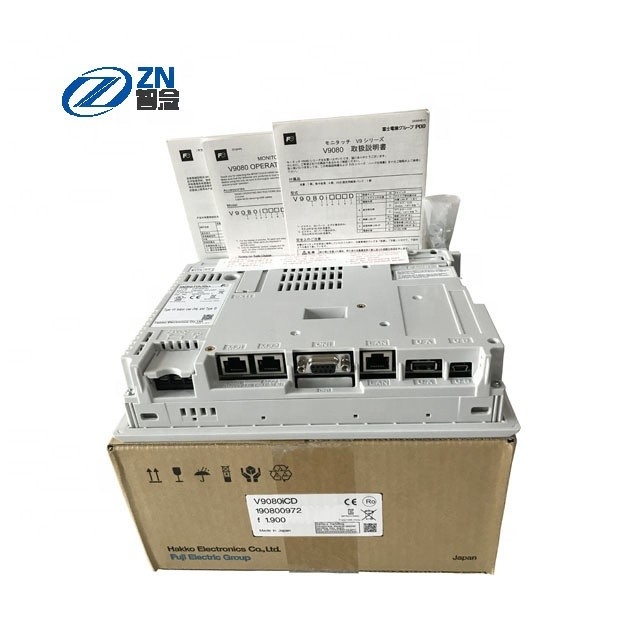

Fuji Electric HMI
>
|
| Place of Origin | China/Japan |
| Brand Name | FUJI |
| Model Number | V9080iCD, V9080iCD |
|
|
V9080iC |
|
|---|---|---|
|
Power supply |
Rated voltage |
DC24V |
|
Permissible range of voltage |
±10％ |
|
|
Permissible momentary power failure |
within 1ms |
|
|
Demand (maximum rating) |
17Ｗ or less |
|
|
Insulation resistance |
|
DC500V 10MΩ or more |
|
Physical environment |
Ambient temperature |
0～50℃*2 |
|
Ambient humidity |
85%RH or less (without dew condensation)*2 |
|
|
Operation altitude |
2,000 meters or lower |
|
|
Atmosphere |
Not to be exposed to corrosive gas, or conductive dust |
|
|
Storage temperature |
－10～60℃*2 |
|
|
Storage temperature |
85%RH or less (without dew condensation)*2 |
|
|
Overvoltage category |
Category II |
|
|
Contamination level |
Level 2 |
|
|
Mechanical operating conditions |
Resistance to oscillation |
Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5̃9Hz, pulsating with:3.5mm, |
|
Resistance to shock |
Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: |
|
|
Electric operating conditions |
Resistance to noise |
Noise voltage: 1,500Vp-p, pulse width: 1μs, pulse rise time: 1ns |
|
Resistance to static discharge |
Complies with IEC61000-4-2, contact: 6kV, air: 8kV |
|
|
Installation conditions |
Grounding |
Grounding resistance: Less than 100Ω, FG/SG separation |
|
Structure |
Protect structure: Front panel: NEMA #250 TYPE 4X (indoor), TYPE 13*3, equivalent to IP66 |
|
|
Cooling system |
Natural air cooling |
|
|
Dimensions W*H*D(mm) |
235.0×180.0×48.9 |
|
|
Dimensions W*H*D(mm) |
220.5×165.5(+0.5/-0) |
|
|
Case color |
|
Light gray |
|
Material |
|
PC |
External interface :-
D-Sub 9-pin (CN1) : RS-232C/ RS-422/485, Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200,187500*4bps
Modular 8-pin (MJ1/ MJ2) : RS-232C/ RS-422/485 (two-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
SD card : One card slot provided as standard
Ethernet : 1ch, Baud rate: 100Mbps, 10Mbps
Wireless LAN : -
USB : Type A?Type mini-B(Ver.2.0)
Sound output : -
Clock :
Backup period : 5 years (Ambient temperature 25øC)
Calendar accuracy : Gap ñ90 sec. per month (Ambient temperature 25øC, when power is not supplied)
Standard :-
CE marking : EN61000-6-2,EN61000-6-4
KC : Compliant
Shipping Weight: 6 Kg
