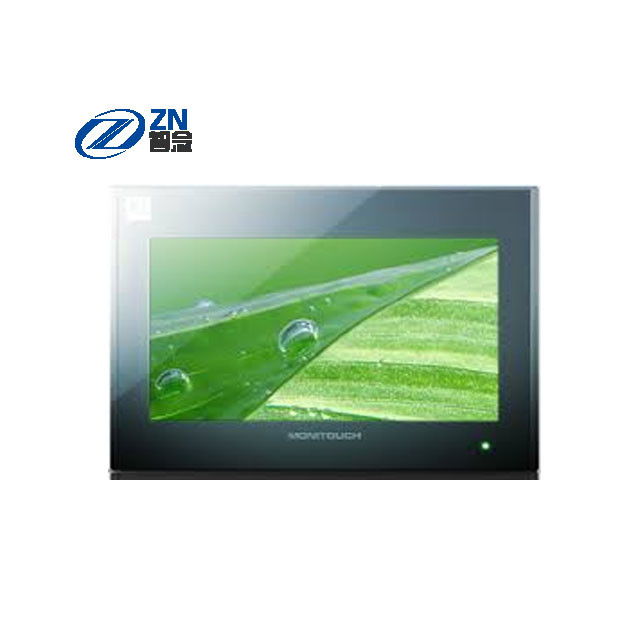

Electronic V9071iW HMI Touch Screen FUJI MONITOUCH 24V DC
  • Electronic V9071iW HMI Touch Screen FUJI MONITOUCH 24V DC

Electronic V9071iW HMI Touch Screen FUJI MONITOUCH 24V DC

Place of Origin China/Japan
Brand Name FUJI
Model Number V9071iW
Product Details
Condition:
100% Original And New
Warranty:
1Year
Package:
Original Packing
Shipping Ways:
DHL,FedEx,EMS
MOQ:
1 Piece
Model Number:
V9071iW
Brand:
Mitsubishi
Product Name:
Touch Screen HMI
Delivery Time:
1-2days
Port:
Selectable
High Light:

V9071iW Touch Screen Fuji

,

Electronic Touch Screen Fuji

,

HMI Fuji Monitouch

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$150-$2000
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

Electronic FUJI V9071iW HMI Touch Screen Displays Hakko MONITOUCH

Dimensions and Part Names

  V9071iW
Power supply Rated voltage 24V DC
Permissible range of voltage DC: ±10%
Permissible momentary power failure DC within 1ms
Demand (maximum rating) DC: 27W or less
Insulation resistance   DC500V 10MΩ or more
Physical environment Ambient temperature 0~50℃ *2
Ambient humidity 85%RH or less (without dew condensation) *2
Operation altitude 2,000 meters or lower
Atmosphere Not to be exposed to corrosive gas, or conductive dust
Storage temperature -10~60℃ *2
Storage humidity 85%RH or less (without dew condensation) *2
Overvoltage category Category II
Contamination level Level 2
Mechanical operating conditions Resistance to oscillation Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5̃9Hz, pulsating with:3.5mm,
9̃150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Resistance to shock Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z:
3 directions, three times each (18 times in total)
Electric operating conditions Resistance to noise Noise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns
Resistance to static discharge Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions Grounding Grounding resistance: Less than 100Ω, FG/SG separation
Structure Protect structure: Front panel: NEMA #250 TYPE 4X (indoor), TYPE 13 *3, equivalent to IP66
(when water-proof gasket is used.), Rear cover: Compatible with IP20, Form: Single unit, Installation method: Panel mounting
Cooling system Natural air cooling
Dimensions W*H*D(mm) 201.6×147.6×60.3
Panel cutout (mm) 187.2×133.4(+0.5/-0)
Case color   Light gray
Material   PC
  • 2: Keep wet bulb temperature under 39°C to avoid malfunction.
  • 3: Available or complying after release.

Performance Specifications

Screen memory (FROM)   64MB
Backup memory (SRAM)   800KB
Display Display device TFT color LCD
Resolution 800×480
Display size 7″wide
Colors 16.7 million *4
Backlight LED
Backlight life 100,000 hours
Touch switch Type Capacitance
External interface D-Sub 9-pin (CN1) RS-232C/ RS-422/485, Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600,
Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200,187500 *5bps
Modular 8-pin
(MJ1/MJ2)
RS-232C/ RS-422/485 (two-wire system), Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600,
19200, 38400, 57600, 76800, 115200 bps
SD card One card slot provided as standard
Ethernet 2ch,
Baud rate: 100Mbps,
10Mbps
Wireless LAN Complies with IEEE802.11b/g/n(2.4GHz)
USB Type A,Type mini-B(Ver.2.0)
Sound output -
Clock Backup period 5 years (Ambient temperature 25°C)
Calendar accuracy Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)
Standard CE marking *6 EN61000-6-2,EN61000-6-4
UL・cUL *6 UL508
KC Compliant
Radio Act *6 Japan:TELEC
USA:FCC
Canada:IC RSS
EU:R&TTE
South Korea:KC
  • 4: For the display of pictures, 3D parts and videos only. Other parts are displayed in 65,536 colors.
  • 5: Available only when connected with SIEMENS MPI/PPI.
  • 6: DC type only.
Electronic V9071iW HMI Touch Screen FUJI MONITOUCH 24V DC 0Electronic V9071iW HMI Touch Screen FUJI MONITOUCH 24V DC 1
