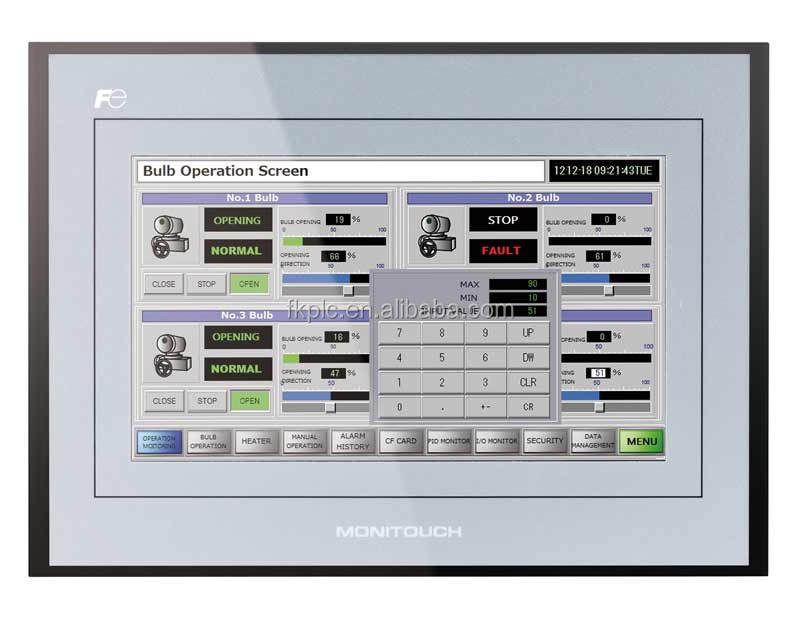

Fuji Electric HMI
>
|
| Place of Origin | China/Japan |
| Brand Name | FUJI |
| Model Number | TS1100i |
| Model | TS1100i | TS1100 | TS1101i | ||
|---|---|---|---|---|---|
| Display | Display size | 10.2” Wide | |||
| Resolution | 800 × 480 dots | ||||
| Display device | TFT color LCD | ||||
| Colors | 65,536 colors | ||||
| Backlight | LED | ||||
| Luminance | 350 cd/m² | ||||
| Touch switch | Analog resistance film | ||||
| Memory | FROM | 10.5 MB | |||
| SRAM | 128 KB | ||||
| External interface | Serial | COM1 | RS-422/485, Asynchronous, Data length: 7,8 bits, Parity: even/odd/none, Stop bit: 1,2 bits Baud rate: 4800/9600/19200/38400/57600/76800/115200/187500 * 1bps |
||
| COM2 & COM3 | RS-232C, Asynchronous, Data length: 7,8 bits, Parity: even/odd/none, Stop bit: 1,2 bits Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps |
||||
| RS-422/485(two-wire system), Asynchronous, Data length: 7,8 bits, Parity: even/odd/none, Stop bit: 1,2 bits Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps |
|||||
| Ethernet | 100BASE-TX/10BASE-T | - | 100BASE-TX/10BASE-T | ||
| USB (Type A) | 1 port (Ver. 2.0,Ver.1.1) | ||||
| USB (Type mini B) | 1 port (Ver. 2.0,Ver.1.1) | ||||
| Clock | Battery | Coin-type lithium primary battery | |||
| Calendar accuracy | Gap±5 sec. per month (Ambient temperature 25 °C) | ||||
| Power supply | Permissible range of voltage | DC 24 V ± 10 % | |||
| Demand (maximum rating) |
16 W or less | ||||
| Physical environment | Ambient operating temperature | 0~50 °C * 2 | |||
| Ambient storage temperature | -10~60 °C * 2 | ||||
| Relative humidity | 85 % RH or less(without dew condensation, Max. wet bulb temperature:39 °C or less) | ||||
| Operation altitude | 2,000 meters or less | ||||
| Operation atmosphere | Not exposed to corrosive gas or excessive dust (free of conductive dust) | ||||
| Contamination level | Level 2 | ||||
| Installation conditions | Dimensions W × H × D |
283.0 × 220.0 × 42.0 mm | |||
| Panel cutout W × H |
257.0 × 199.0 mm (+0.5/-0) | ||||
| Protect structure | Front panel: Compatible with IP65 (when waterproof gasket * 3is used.), Rear cabinet: Compatible with IP20 Form: Single unit, Installation method: Panel mounting |
||||
| Case color | Black | ||||
| Compatibility | CE, KC | CE, KC, UL, cUL | |||
