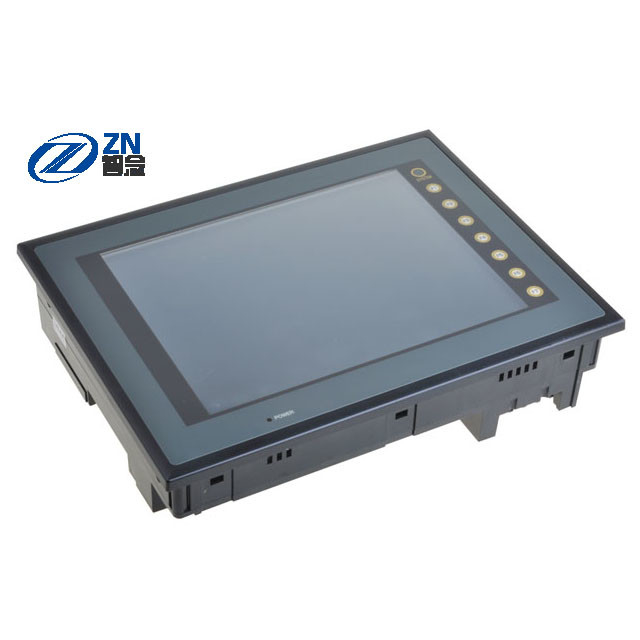

Hakko FUJI Human Machine Interfaces HMI UG430H-SS1 TFT 128
  • Hakko FUJI Human Machine Interfaces HMI UG430H-SS1 TFT 128
  • Hakko FUJI Human Machine Interfaces HMI UG430H-SS1 TFT 128

Hakko FUJI Human Machine Interfaces HMI UG430H-SS1 TFT 128

Place of Origin China/Japan
Brand Name FUJI
Model Number UG430H-SS1
Product Details
Rated Voltage:
100~240V AC
Noise Proof:
1500Vp-p (pulse Width 1 S, Pulse Rise Time : 1ns)
Static Discharge:
Complies With IEC61000-4-2, Contact: 6kV, Air: 8kV
Cooling System:
Natural Air Cooling
Contamination Level2:
Level 2
Material:
PC/ABS
Port:
Shenzhen & Guanzhou /Selectable
High Light:

FUJI Human Machine Interfaces

,

TFT 128 Human Machine Interfaces

,

UG430H-SS1

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$150-$2000
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

100% New And Original Hakko FUJI UG430H-SS1 Color HMI Human Machine Interfaces

Specification

Model

UG430H-SS1

Display size

10,4 inch

Resolution

1024 x 768

Number of color

TFT 128

Nominal voltage

100-200VAC

Screen memory



SRAM

64 KB

External interface



PLC

RS-232C, RS-422/485 (D-sub 25 pin female)

MJ1/MJ2

RS-232C, RS-422/485(2w)

USB

USB master port (USB-A) 1.1/ USB slave port (USB-B) 1.1

Configuration Software

POD editor UG00S-CWV4

PLC connection

Mitsubishi, OMRON, Siemens

Controler connection



Temperature controler

Fuji, OMRON, Yokogawa…

Inverter

Fuji, Mitsubishi, LS, Siemens, Danfoss…

Servo

Mitsubishi, Fuji…

Dimensions

303.8×231.0×54.0



Hakko FUJI Human Machine Interfaces HMI UG430H-SS1 TFT 128 0Hakko FUJI Human Machine Interfaces HMI UG430H-SS1 TFT 128 1





Human Machine Interface (HMI) or graphic operator interface or also often called touch screen is used to monitor, operate and control machines or processes in a factory. In the world of automation industry, before using the touch screen, we must first create an application (project) according to the desired function.



The application/project can contain: graphics or pictures to be displayed, execution orders such as push buttons on/off, auto/manual, alarm reset and so on, data data to be monitored/controlled/log, Parameter Settings (production) such as setting temperature, motor rpm and so on, alarms, Trend graph, reports and so on.



HMI or touch screen applications are generally not directly related to the controlled equipment but through an intermediary data server, the data server can be in the form of an OPC (OLE for Process Control) program or a special direct driver program made specifically for one particular controller/PLC, inverter, temperature controllers, servo drives etc.
