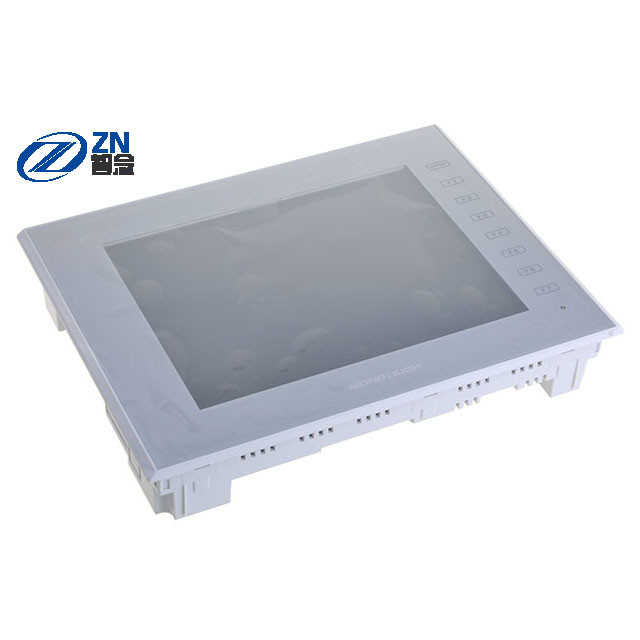

FUJI Hakko Monitouch V9100IS Human Machine Interface HMI Touch Screen

​

• Manufacturer : Hakko Electronics ( by Fuji Electric )

• Product no : V9100iS

• Product type : Monitouch V9 Series

• Power supply:-

• Rated voltage : 100-240V AC

• Permissible range of voltage : AC: -15%, +10%/ DC: ñ10%

• Permissible momentary power failure : AC within 20ms, DC within 1ms

• Demand (maximum rating) : AC: 70VA or less/ DC: 28W or less

• Insulation resistance:-

• DC500V 10MO or more

• Physical environment:-

• Ambient temperature : 0~50øC*1

• Ambient humidity : 85%RH or less (without dew condensation)*1

• Operation altitude : 2,000 meters or lower

• Atmosphere : Not to be exposed to corrosive gas, or conductive dust

• Storage temperature : -10~60øC*1

• Storage humidity : 85%RH or less (without dew condensation)*1

• Overvoltage category : Category II

• Contamination level : Level 2

• Mechanical operating conditions:-

• Resistance to oscillation : Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 59Hz, pulsating with: 3.5mm,
  9~150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)

• Resistance to shock : Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z:
  3 directions, three times each (18 times in total)

• Electric operating conditions:-

• Resistance to noise : Noise voltage: 1,500Vp-p, pulse width: 1æs, pulse rise time: 1ns

• Resistance to static discharge : Complies with IEC61000-4-2, contact: 6kV, air: 8kV

• Installation conditions:-

• Grounding : Grounding resistance: Less than 100O, FG/SG separation

• Structure : Front panel:Complies with IP66, Type 4X/13 (when waterproof gasket is installed)
  Rear cover:Complies with IP20
  Form: Single Unit, Installation Method: Panel Mounting

• Cooling system : Natural air cooling

• Dimensions W*H*D(mm) : 303.8?231.0?54.0

• Panel Cutout (mm) : 289.0?216.2(+0.5/-0)

• Case Color:-

• Light Gray

• Material:-

• PC

• Screen Memory (FROM):- 64MB

• Backup Memory (SRAM):- 800KB

• Display:-

• Display Device : TFT color LCD

• Resolution : 800?600

• Display size : 10.4?

• Colors : 16.7 million*3

• Backlight : LED

• Backlight Life : 70,000 hours

• Touch Switch:-

• Type : Analog Resistance Film

• Function switch:-

• Quantity : 8

• External interface:-

• D-Sub 9-pin (CN1) : RS-232C/ RS-422/485, Asynchronous Type,Data Length: 7,8 Bits, Parity: Even, Odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600,Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200,187500*4bps

• Modular 8-pin
  (MJ1/MJ2) : RS-232C/ RS-422/485 (two-wire system), Asynchronous type,
  Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600,
  19200, 38400, 57600, 76800, 115200 bps

• SD card : One card slot provided as standard

• Ethernet : 1ch,
  Baud rate: 100Mbps,
  10Mbps

• Wireless LAN : -

• USB : Type A,Type mini-B(Ver.2.0)

• Sound output : 1ch provided as standard

• Clock:-

• Backup period : 5 years (Ambient temperature 25øC)

• Calendar accuracy : Gap ñ90 sec. per month (Ambient temperature 25øC, when power is not supplied)

• Standard:-

• CE marking*5 : EN61000-6-2,EN61000-6-4

• UL?cUL*5 : UL508,ANSI/ISA 12.12.01*2

• KC : Compliant

• Radio Act : -

• Shipping Weight : 10 Kg
