| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | G9SP-N20S |

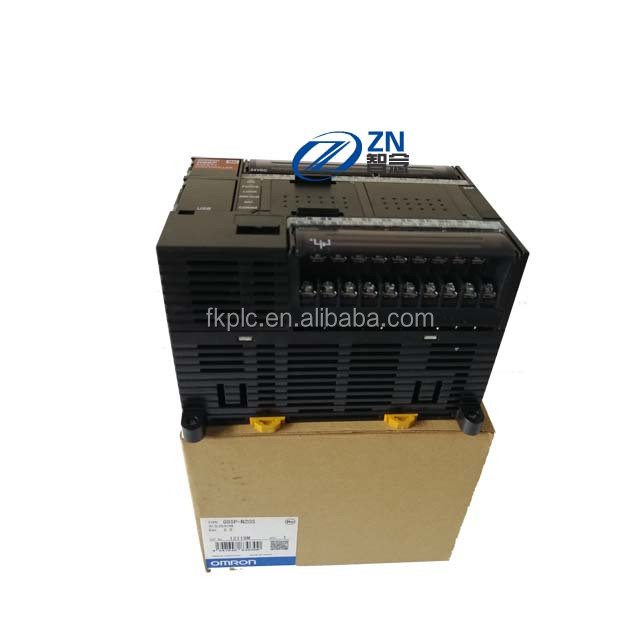

OMRON G9SP-N20S PLC Safety Controller 24VDC New in Box
The standalone safety controller
The G9SP safety controller provides all local safety in- and outputs and controls the safety application. Standard in- and outputs can be directly connected and diagnosis information is provided via Serial or Ethernet interface.
Three CPU-types to suit different applications
Clear diagnosis and monitoring via Ethernet or Serial connection
Memory cassette for easy duplication of configuration
Unique programming software to support easy design, verification, standardization and reusage of the program
Certified according to PLe (EN ISO 13849-1) and SIL 3 (IEC 61508)
| Power supply voltage | 24 VDC (20.4 to 26.4 VDC -15% +10%) |
| Current consumption * | G9SP-N10S: 400 mA (V1: 300 mA, V2: 100 mA) |
| G9SP-N10D: 500 mA (V1: 300 mA, V2: 200 mA) | |
| G9SP-N20S: 500 mA (V1: 400 mA, V2: 100 mA) | |
| Isolation class | Class III (SELV) |
| Overvoltage category | II |
| Noise immunity | Conforms to IEC61131-2 |
| Vibration resistance | 5 to 8.4 Hz: 3.5 mm, 8.4 to 150 Hz: 9.8 m/s2 |
| Shock resistance | 147 m/s2: 11 ms |
| Mounting | DIN track mounting (IEC60715 TH35-7.5/TH35-15) or M4 screws |
| Ambient operating temperature | 0 to +55°C |
| Ambient operating humidity | 10% to 90% (with no condensation) |
| Ambient storage temperature | -20°C to +75°C |
| Atmosphere | No corrosive gas |
| Operating altitude | 2,000 m max. |
| Pollution degree | Pollution degree 2 |
| Degree of protection | IP20 except terminal blocks |
| Terminal screws | M3 self-rising screws |
