| Place of Origin | China/Japan |
| Brand Name | Omron |

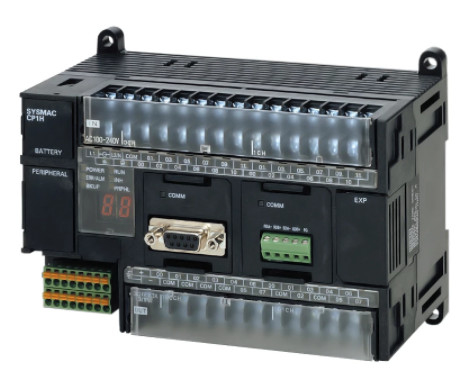

| Model Number | CP1H-X40DT-D |
• Pulse output for 4 axes. Advanced power for high-precision positioning control.
• High-speed counters. Differential phases for 4 axes. Easily handles multi-axis control with a single unit.
• Eight interrupt inputs are built in. Faster processing of approximately 500 instructions speeds up the entire system.
• Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
• Ethernet Communications. Enabled by using an Option Board. Two ports can be used as an Ethernet port to perform. Ethernet communications between the CP1H and a host computer.
• Built-in Analog I/O. XA CPU Units provide 4 input words and 2 output words.
• USB Peripheral Port. Another standard feature.
• The structured text (ST) language. Makes math operations even easier.
• Can be used for the CP1W series and CJ series Unit. The extendibility of it is preeminently good.
• LCD displays and settings. Enabled using Option Board.
| CPU Unit | Specifications | Model | Stand- ards |
||||
|---|---|---|---|---|---|---|---|
| CPU type | Power supply |
Output method |
Inputs | Out- puts |
|||
| CP1H-X CPU Units |
Memory capacity: 20K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 4 axes (Models with transistor outputs only) |
AC power supply |
Relay output | 24 | 16 | CP1H-X40DR-A | UC1, N, L, CE, KC |
| DC power supply |
Transistor output (sinking) |
CP1H-X40DT-D | |||||
| Transistor output (sourcing) |
CP1H-X40DT1-D | ||||||
| CP1H-XA CPU Units |
Memory capacity: 20K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 4 axes (Models with transistor outputs only) Analog inputs: 4 Analog outputs: 2 |
AC power supply |
Relay output | 24 | 16 | CP1H-XA40DR-A | |
| DC power supply |
Transistor output (sinking) |
CP1H-XA40DT-D | |||||
| Transistor output (sourcing) |
CP1H-XA40DT1-D | ||||||
| CP1H-Y CPU Units |
Memory capacity: 20K steps High-speed counters: 1 MHz, 2 axes 100 kHz, 2 axes Pulse outputs: 1 MHz, 2 axes 100 kHz, 2 axes |
DC power supply |
Transistor output (sinking) |
12 + line- driver input, 2 axes |
8 + line- driver output, 2 axes |
CP1H-Y20DT-D | |
Note: 1. CP1H PLCs are supported by CX-Programmer version 6.1 or higher.
2. Purchase a separately sold Option Unit if you will use RS-232C, RS-422A/485, Ethernet, or LCD.
