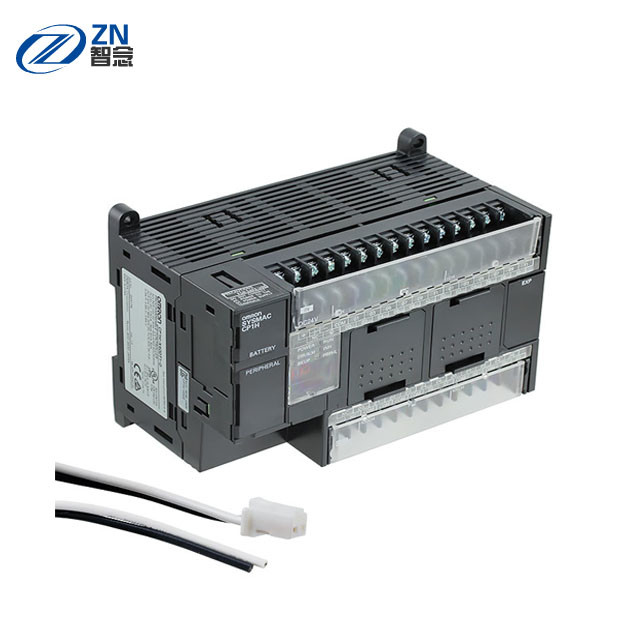

Compact OMRON PLC CP1H-XA40DR-A PLC Controller 24V DC Eight Interrupt Inputs
  • Compact OMRON PLC CP1H-XA40DR-A PLC Controller 24V DC Eight Interrupt Inputs
  • Compact OMRON PLC CP1H-XA40DR-A PLC Controller 24V DC Eight Interrupt Inputs
  • Compact OMRON PLC CP1H-XA40DR-A PLC Controller 24V DC Eight Interrupt Inputs
  • Compact OMRON PLC CP1H-XA40DR-A PLC Controller 24V DC Eight Interrupt Inputs
  • Compact OMRON PLC CP1H-XA40DR-A PLC Controller 24V DC Eight Interrupt Inputs

Compact OMRON PLC CP1H-XA40DR-A PLC Controller 24V DC Eight Interrupt Inputs

Place of Origin China/Japan
Brand Name OMRON
Model Number CP1H-XA40DR-A
Product Details
Condition:
100% Original And New
Warranty:
1 Year
Package:
Original Packing
Shipping Ways:
DHL,FedEx,EMS
MOQ:
1 Piece
Color:
Black Or White
Model Number:
CPIH Series
Brand:
Omron
Product Name:
Controller Programmable Logic
Application:
As Your Demand
Port:
Selectable
High Light:

CP1H-XA40DR-A Omron PLC CP1H

,

24V Omron PLC CP1H

,

CP1H Omron Compact PLC

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

NEW&ORIGINAL OMRON PLC CP1H-XA40DR-A PLC Controller Price List

Description

• Pulse output for 4 axes. Advanced power for high-precision positioning control.

• High-speed counters. Differential phases for 4 axes. Easily handles multi-axis control with a single unit.

• Eight interrupt inputs are built in. Faster processing of approximately 500 instructions speeds up the entire system.

• Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.

• Ethernet Communications. Enabled by using an Option Board. Two ports can be used as an Ethernet port to perform. Ethernet communications between the CP1H and a host computer.

• Built-in Analog I/O. XA CPU Units provide 4 input words and 2 output words.

• USB Peripheral Port. Another standard feature.

• The structured text (ST) language. Makes math operations even easier.

• Can be used for the CP1W series and CJ series Unit. The extendibility of it is preeminently good.

• LCD displays and settings. Enabled using Option Board.Compact OMRON PLC CP1H-XA40DR-A PLC Controller 24V DC Eight Interrupt Inputs 0





General Specifications



Type AC power supply models DC power supply models
Model CP1H-[][][]-A CP1H-[][][]-D
Power supply 100 to 240 VAC 50/60 Hz 24 VDC
Operating voltage range 85 264 VAC 20.4 to 26.4 VDC
(with 4 or more Expansion Units and
Expansion I/O Units: 21.6 to 26.4 VDC)
Power consumption 100 VA max. (CP1H-[][][]-A) 50 W max. (CP1H-[][][]-D)
Inrush current * 100 to 120 VAC inputs:
20 A max. (for cold start at room
temperature)
8 ms max.
200 to 240 VAC inputs:
40 A max. (for cold start at room
temperature),
8 ms max.
30 A max. (for cold start at room
temperature)
20 ms max.
External power supply 300 mA at 24 VDC None
Insulation resistance 20 MΩ min. (at 500 VDC) between the
external AC terminals and GR terminals
No insulation between primary and secondary
for DC power supply
Dielectric strength 2,300 VAC at 50/60 Hz for 1 min between
the external AC and GR terminals, leakage
current: 5 mA max.
No insulation between primary and secondary
for DC power supply
Noise immunity Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz,
acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time:
8 minutes × 10 sweeps = total time of 80 minutes)
Shock resistance Conforms to JIS C60068-2-27. 147 m/s2 three times each in X, Y, and Z directions
Ambient operating
temperature
0 to 55°C
Ambient humidity 10% to 90% (with no condensation)
Ambient operating
environment
No corrosive gas
Ambient storage
temperature
-20 to 75°C (Excluding battery.)
Power holding time 10 ms min. 2 ms min.



Note: The above values are for a cold start at room temperature for an AC power supply, and for a cold start for a DC
power supply.
• A thermistor (with low-temperature current suppression characteristics) is used in the inrush current control
circuitry for the AC power supply. The thermistor will not be sufficiently cooled if the ambient temperature is
high or if a hot start is performed when the power supply has been OFF for only a short time. In those cases
the inrush current values may be higher (as much as two times higher) than those shown above. Always allow
for this when selecting fuses and breakers for external circuits.
• A capacitor charge-type delay circuit is used in the inrush current control circuitry for the DC power supply. The
capacitor will not be charged if a hot start is performed when the power supply has been OFF for only a short
time, so in those cases the inrush current values may be higher (as much as two times higher) than those
shown above.
