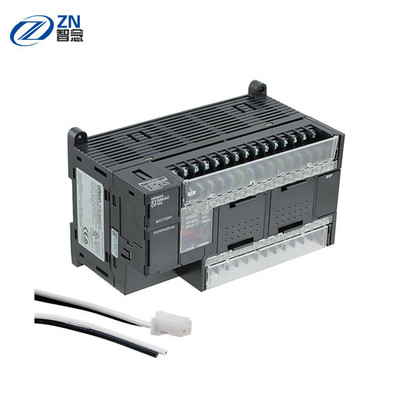

Omron PLC CP1H
>
|
|
| Place of Origin | China/Japan |
| Brand Name | OMRON |
| Model Number | CP1H-XA40DR-A |
Omron CP1H Series – All-in-one Package PLCs:
Designed for compact machines, the CP1H is the advanced high-speed all-in-one compact PLC. Four high-speed counters and four pulse outputs are ideal for multi-axis positioning control. The CP1H-XA comes with four analogue inputs and two analogue outputs built-in. This makes it suitable for simple loop control, using the PLC's advanced PID control function with auto-tuning. The CP1H can be expanded with different I/O and supports up to two CJ1W special I/O units. This means that it is open to popular fieldbuses and supports most communication units of the CJ series.
|
Physical |
|
|---|---|
|
Case/Package |
100 |
|
Mount |
Chassis Mount, DIN Rail, Panel |
|
Weight |
771.107029 g |
|
Technical |
|
|
Max Operating Temperature |
55 °C |
|
Min Operating Temperature |
0 °C |
|
Number Of Characters Per Row |
2 |
|
Number of I/Os |
40 |
|
Number of Inputs |
24 |
|
Number of Outputs |
16 |
|
Output Current |
2 A |
|
Packaging |
Bulk |
|
Dimensions |
|
|
Depth |
85 mm |
|
Length |
150 mm |
|
Width |
110 mm |
|
Compliance |
|
|
Approvals |
CE, cULus |
|
RoHS |
Compliant |
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could Zhinian provide technology support?
A: We're in this field more than 12 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does Zhinian keeps goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
