| Place of Origin | China/Japan |
| Brand Name | Omron |

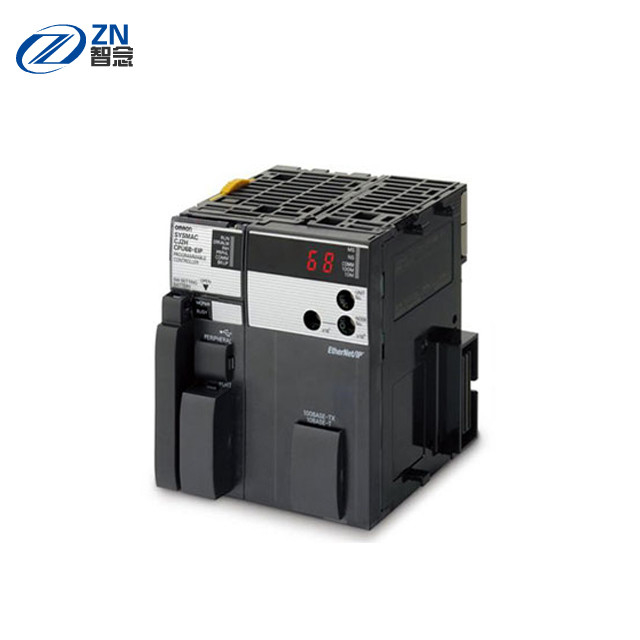

| Model Number | CJ2H-CPU68-EIP |
CJ2H for high speed, high capacity
The CJ2H series is ideal for advanced machine automation needs, such as those required in image processing inspection of electrical components and high speed sorting on conveyors.
| Item | CJ2H- | |||||
|---|---|---|---|---|---|---|
| CPU64-EIP | CPU65-EIP | CPU66-EIP | CPU67-EIP | CPU68-EIP | ||
| Enclosure | Mounted in a panel | |||||
| Grounding | Less than 100 Ω | |||||
| CPU Rack Dimensions | 90 mm × 65 mm × 80 mm (H × D × W) | |||||
| Weight * | 280 g or less | |||||
| Current Consumption | 5 VDC, 0.82 A | |||||
| Use Envi- ronment |
Ambient Operating Temperature |
0 to 55 °C | ||||
| Ambient Operating Humidity |
10% to 90% (with no condensation) | |||||
| Atmosphere | Must be free from corrosive gases. | |||||
| Ambient Storage Temperature |
- 20 to 70 °C (excluding battery) | |||||
| Altitude | 2,000 m or less | |||||
| Pollution Degree | 2 or less: Meets IEC 61010-2-201. | |||||
| Noise Immunity | 2 kV on power supply line (Conforms to IEC 61000-4-4.) | |||||
| Overvoltage Category | Category II: Meets IEC 61010-2-201. | |||||
| EMC Immunity Level | Zone B | |||||
| Vibration Resistance | Conforms to IEC60068-2-6. 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) |
|||||
| Shock Resistance | Conforms to IEC60068-2-27. 147 m/s2, 3 times in X, Y, and Z directions (100 m/s2 for Relay Output Units) |
|||||
| Battery | Life | 5 years at 25 °C | ||||
| Weight | Approx. 10 g | |||||
| Model | CJ1W-BAT01 | |||||
| Applicable Standards | Conforms to cULus, NK, LR and EC Directives. | |||||
|
Max. digital |
Program capacity |
Data memory capacity |
Logic execution speed |
Max. I/O units |
Width |
5 V current |
Built-in functions |
Order code |
|---|---|---|---|---|---|---|---|---|
|
2,560 |
400 K |
832 K |
16 ns |
40 |
80 mm |
820 mA |
USB + EtherNet/IP + RS-232C |
CJ2H-CPU68-EIP |
|
2,560 |
250 K |
512 K |
16 ns |
40 |
80 mm |
820 mA |
USB + EtherNet/IP + RS-232C |
CJ2H-CPU67-EIP |
|
2,560 |
150 K |
352 K |
16 ns |
40 |
80 mm |
820 mA |
USB + EtherNet/IP + RS-232C |
CJ2H-CPU66-EIP |
|
2,560 |
100 K |
160 K |
16 ns |
40 |
80 mm |
820 mA |
USB + EtherNet/IP + RS-232C |
CJ2H-CPU65-EIP |
|
2,560 |
50 K |
160 K |
16 ns |
40 |
80 mm |
820 mA |
USB + EtherNet/IP + RS-232C |
CJ2H-CPU64-EIP |
|
2,560 |
60 K |
160 K |
40 ns |
40 |
62 mm |
700 mA |
USB + EtherNet/IP, serial comm. option slot |
CJ2M-CPU35 |
|
2,560 |
30 K |
160 K |
40 ns |
40 |
62 mm |
700 mA |
USB + EtherNet/IP, serial comm. option slot |
CJ2M-CPU34 |
|
2,560 |
20 K |
64 K |
40 ns |
40 |
62 mm |
700 mA |
USB + EtherNet/IP, serial comm. option slot |
CJ2M-CPU33 |
|
2,560 |
10 K |
64 K |
40 ns |
40 |
62 mm |
700 mA |
USB + EtherNet/IP, serial comm. option slot |
CJ2M-CPU32 |
|
2,560 |
5 K |
64 K |
40 ns |
40 |
62 mm |
700 mA |
USB + EtherNet/IP, serial comm. option slot |
CJ2M-CPU31 |
