CJ2H-CPU65-EIP PLC Industrial Automation Units Omron 100K Steps Ethernet
  • CJ2H-CPU65-EIP PLC Industrial Automation Units Omron 100K Steps Ethernet
  • CJ2H-CPU65-EIP PLC Industrial Automation Units Omron 100K Steps Ethernet
  • CJ2H-CPU65-EIP PLC Industrial Automation Units Omron 100K Steps Ethernet
  • CJ2H-CPU65-EIP PLC Industrial Automation Units Omron 100K Steps Ethernet
  • CJ2H-CPU65-EIP PLC Industrial Automation Units Omron 100K Steps Ethernet
  • CJ2H-CPU65-EIP PLC Industrial Automation Units Omron 100K Steps Ethernet

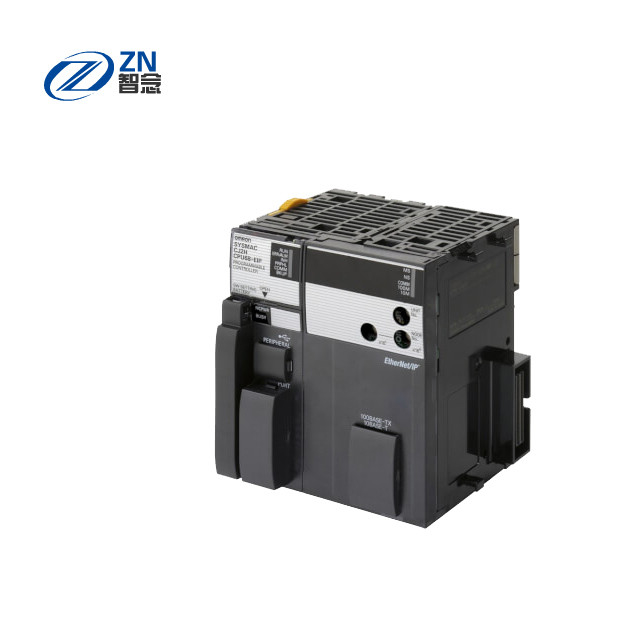

CJ2H-CPU65-EIP PLC Industrial Automation Units Omron 100K Steps Ethernet

Place of Origin China/Japan
Brand Name Omron
Model Number CJ2H-CPU65-EIP
Product Details
Service:
One-stop Service
Quality:
New And Original
Lead Time:
In Stock
Warrenty:
1 Year
Delivery Detail:
3-5 Working Days After Payment
Max. Digital:
2,560
Logic Execution Speed:
16 Ns
Width:
80 Mm
Built-in Functions:
USB + EtherNet/IP + RS-232C
Port:
Guangdong Shenzhen Dongguan
High Light:

Ethernet PLC Industrial Automation

,

100K PLC Industrial Automation

,

CJ2H-CPU65-EIP

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$59.00 - $259.00/Pieces
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

CJ2H-CPU65-EIP PLC 100K steps Ethernet New Original Omron PLC Units

CJ2H-CPU65-EIP PLC Industrial Automation Units Omron 100K Steps Ethernet 0

Product Features

CJ2H for high speed, high capacity

The CJ2H series is ideal for advanced machine automation needs, such as those required in image processing inspection of electrical components and high speed sorting on conveyors.

  • Always accessible through standard USB support
  • Standard Ethernet port with EtherNet/IP Data Link function
  • High program capacity of up to 400K steps
  • Higher precision for machine operation and processing quality
  • Immediate refreshing of basic I/O ensures real-time processing
  • High data memory capacity of up to 832K words



Items CJ2H-
CPU64-EIP CPU65-EIP CPU66-EIP CPU67-EIP CPU68-EIP
User Memory 50K steps 100K steps 150K steps 250K steps 400K steps
I/O Bits 2,560 bits
Processing
Speed
Overhead Processing Time Normal Mode: 200 μs
(If tag data links are used with EtherNet/IP, add the following to the above time: 100 μs + Number of transferred words × (0.33 μs or 0.87 μs *))
When High-speed interrupt function is used
Execution Time Basic Instructions: 0.016 μs min.;
Special Instructions: 0.048 μs min.
Inter-
rupts
I/O Interrupts and External
Interrupts
Interrupt task startup time: 26 μs or 17 μs * (30 μs in unit Ver.1.0)
Return time to cyclic task: 11 μs or 8 μs * (15 μs in unit Ver.1.0)
* When High-speed interrupt function is used
Scheduled Interrupts Interrupt task startup time: 22 μs or 13μs * (27 μs in unit Ver.1.0)
Return time to cyclic task: 11 μs or 8μs * (15 μs in unit Ver.1.0)
* When High-speed interrupt function is used
Maximum Number of Connectable Units Total per CPU Rack or Expansion Rack: 10 Units max.;
Total per PLC: 40 Units max.
Maximum Number of Expansion Racks 3 max.
CIO Area I/O Area 2,560 bits (160 words): Words CIO 0000 to CIO 0159
Link Area 3,200 bits (200 words): Words CIO 1000 to CIO 1199
Synchronous Data Refresh Area 1,536 bits (96 words): Words CIO 1200 to CIO 1295
CPU Bus Unit Area 6,400 bits (400 words): Words CIO 1500 to CIO 1899
Special I/O Unit Area 15,360 bits (960 words): Words CIO 2000 to CIO 2959
DeviceNet Area 9,600 bits (600 words): Words CIO 3200 to CIO 3799
Internal I/O Area 3,200 bits (200 words): Words CIO 1300 to CIO 1499
37,504 bits (2,344 words): Words CIO 3800 to CIO 6143
Cannot be used for external I/O.
Work Area 8,192 bits (512 words): Words W000 to W511
Cannot be used for external I/O.
Holding Area 8,192 bits (512 words): Words H000 to H511
Bits in this area maintain their ON/OFF status when PLC is turned OFF or operating mode is changed.
Words H512 to H1535: These words can be used only for function blocks. They can be used only for function block instances (i.e., they are allocated only for internal variables in function blocks).
Auxiliary Area Read-only: 31,744 bits (1,984 words)
7,168 bits (448 words): Words A0 to A447
24,576 bits (1,536 words): Words A10000 to A11535 *
Read/write: 16,384 bits (1,024 words) in words A448 to A1471 *
*A960 to A1471 and A10000 to A11535 cannot be accessed by CPU Bus Units, Special I/O Units, PTs, and Support Software that do not specifically support the CJ2 CPU Units.
Temporary Area 16 bits: TR0 to TR15
Timer Area 4,096 timer numbers (T0000 to T4095 (separate from counters))
Counter Area 4,096 counter numbers (C0000 to C4095 (separate from timers))
DM Area 32k words *
DM Area words for Special I/O Units: D20000 to D29599 (100 words × 96 Units)
DM Area words for CPU Bus Units: D30000 to D31599 (100 words × 16 Units)
*Bits in the EM Area can be addressed either by bit or by word. These bits cannot be addressed by CPU Bus Units, Special I/O Units, PTs, and Support Software that do not specifically support the CJ2 CPU Units.
EM Area 32k words/bank × 25 banks max.: E00_00000 to E18_32767 max. *1 *2
*1. Bits in the EM Area can be addressed either by bit or by word. These bits cannot be addressed by CPU Bus Units, Special I/O Units, PTs, and Support Software that do not specifically support the CJ2 CPU Units.
*2. EM banks D to 18 cannot be accessed by CPU Bus Units, Special I/O Units, PTs, and Support Software that do not specifically support the CJ2 CPU Units.
*3. Force-set/reset to the EM Area is enabled by specifying a start bank in parameter settings. (unit version 1.2 or higher)
32K words
× 4 banks
32K words
× 4 banks
32K words
× 10 banks
32K words
× 15 banks
32K words
× 25 banks
  Force-
S/R
Enabled
Banks
When EM force-S/R function is
used *3
Bank 0 to 3 Bank 0 to 3 Bank 0 to 9 Bank 0 to E Bank 0 to 18
When automatic address
allocation is specified
Bank 3 Bank 3 Bank 6 to 9 Bank 7 to E Bank 11 to 18
Index Registers IR0 to IR15
These are special registers for storing PLC memory addresses for indirect addressing. (Index Registers can be set so that they are unique in each task or so that they are shared by all tasks.)
Cyclic Task Flag Area 128 flags
Memory Card 128 MB, 256 MB, or 512 MB
Operating Modes PROGRAM Mode: Programs are not executed. Preparations can be executed prior to program execution in this mode.
MONITOR Mode: Programs are executed, and some operations, such as online editing, and changes to present values in I/O memory, are enabled in this mode.
RUN Mode: Programs are executed. This is the normal operating mode.
Execution Mode Normal Mode
Programming Languages Ladder Logic (LD),
Sequential Function Charts (SFC),
Structured Text (ST), and
Instruction Lists (IL)
Function
Blocks
Maximum number of definitions 2,048
Maximum number of instances 2,048
Tasks Type of Tasks Cyclic tasks
Interrupt tasks (Power OFF interrupt tasks, scheduled interrupt tasks, I/O interrupt tasks, and external interrupt tasks)
Number of Tasks Cyclic tasks: 128
Interrupt tasks: 256
(Interrupt tasks can be defined as cyclic tasks to create extra cyclic tasks. Therefore, the total number of cyclic tasks is actually 384 max.)
Symbols
(Variables)
Type of Symbols Local symbols: Can be used only within a single task in the PLC.
Global symbols: Can be used in all tasks in the PLC.
Network symbols (tags): I/O memory in the CPU Unit can be externally accessed using symbols, depending on parameter settings.
Data Type of Symbols BOOL (bit)
UINT (one-word unsigned binary)
UDINT (two-word unsigned binary)
ULINT (four-word unsigned binary)
INT (one-word signed binary)
DINT (two-word signed binary)
LINT (four-word signed binary)
UINT BCD (one-word unsigned BCD) *1
UDINT BCD (two-word unsigned BCD) *1
ULINT BCD (four-word unsigned BCD) *1
REAL (two-word floating-point)
LREAL (four-word floating-point)
CHANNEL (word) *1
NUMBER (constant or number) *1
WORD (one-word hexadecimal)
DWORD (two-word hexadecimal)
LWORD (four-word hexadecimal)
STRING (1 to 255 ASCII characters)
TIMER (timer) *2
COUNTER (counter) *2
User defined data types (data structures) *3
*1. Cannot be used in Function blocks
*2. Can be used only in Function blocks
*3. Supported only when CX-Programmer version 9.0 or later is used
Maximum Size of Symbol 32k words
Array Symbols (Array Variables) One-dimensional arrays
Number of Array Elements 32,000 elements max.
Number of Registrable Network
Symbols (Tags)
20,000 max.
Length of Network Symbol (Tag) Name 255 bytes max.
Encoding of Network Symbols (Tags) UTF-8
Data
Tracing
Memory Capacity 8,000 words 16,000 words 32,000 words
(The EM Area can be specified from the CX-Programmer to use up to 32K words multiplied by the number of banks supported by the CPU Unit model.)
Number of Samplings Bits = 31, one-word data =16, two-word data = 8, four-word data = 4
Sampling Cycle 1 to 2,550 ms (Unit: 1 ms)
Trigger Conditions ON/OFF of specified bit
Data comparison of specified word
Data size: 1 word, 2 words, 4 words
Comparison Method: Equals (=), Greater Than (>), Greater Than or Equals (≥), Less Than (<), Less Than or Equals (≤), Not Equal (≠)
Delay Value - 32,768 to +32,767 ms
File Memory Memory Card (128, 256, or 512 Mbytes) (Use the Memory Cards provided by OMRON.)
EM file memory (Part of the EM Area can be converted for use as file memory.)
Source/
Comment
Memory
Program sources, comments,
program indexes, symbol tables
Capacity: 3.5 Mbytes
Communi-
cations
Logical Ports for
Communications
Logical Ports 8 ports (Used for SEND, RECV, CMND, PMCR, TXDU, and RXDU instructions.)
Extended
Logical Ports
64 ports (Used for SEND2, RECV2, CMND2, and PMCR2 instructions.)
CIP
Communications
Specification
Class 3
(Connection Type)
Number of connections: 128
UCMM (Non-
connection Type)
Maximum number of clients that can communicate at the same time: 32
Maximum number of servers that can communicate at the same time: 32
Peripheral (USB) Port USB 2.0-compliant B-type connector
  Baud Rate 12 Mbps max.
Transmission Distance 5 m max.
Serial Port Interface: Conforms to EIA RS-232C.
  Communications Method Half-duplex
Synchronization Method Start-stop
Baud Rate 0.3, 0.6, 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 (kbps)
Transmission Distance 15 m max.
EtherNet/IP Port ---
  Transmis-
sion
Specifica-
tions
Media Access
Method
CSMA/CD
Modulation Baseband
Transmission
Paths
Star
Baud Rate 100 Mbps (100Base-TX)
Transmission
Media
Shielded twisted-pair (STP) cable; Categories: 5, 5e
Transmission
Distance
100 m (between hub and node)
Number of Cascade
Connections
No restrictions if switching hub is used.
Communi-
cations
Specifica-
tions
CIP
Communications:
Tag Data Links
---
  Number of
Connections
256
Packet Interval
(Refresh period)
0.5 to 10,000 ms (Unit: 0.5 ms)
Can be set for each connection. (Data will be refreshed at the set interval, regardless of the number of nodes.)
Maximum allowed
communications
bandwidth per Unit
6,000 to 12,000 pps *1 *2
Number of
Registerable Tag
256
Type of Tags CIO, DM, EM, HR, WR, and Network symboles
Number of Tags
per Connection
8 (Seven tags if PLC status is included in the segment.)
Maximum Link
Data Size per
Node
184,832 words
Maximum Data
Size per
Connection
252 or 722 words *3
(Data is synchronized within each connection.)
Number of
Registrable Tag
Set
256 (1 connection = 1 segment)
Maximum Tag
Set Size
722 words (One word is used when PLC status is included in the segment.)
Maximum
Number of Tags
Refreshable in a
Single Cycle of
CPU Unit *4
Output/send (CPU Unit to EtherNet/IP): 256
Input/receive (EtherNet/IP to CPU Unit): 256
Data Size
Refreshable in a
Single Cycle of
CPU Unit *4
Output/send (CPU to EtherNet/IP): 6,432 words
Input/receive (EtherNet/IP to CPU): 6,432 words
Change of Tag
Data Link
Parameter
Settings during
Operation
OK *5
Multi-cast Packet
Filter *6
OK
CIP
Communications:
Explicit Messages
---
  Class 3
(Connection Type)
Number of connections: 128
UCMM (Non-
connection Type)
Maximum number of clients that can communicate at the same time: 32
Maximum number of servers that can communicate at the same time: 32
CIP Routing OK (CIP routing is enabled for the following remote Units: CJ1W-EIP21, CJ2H-CPU6[]-EIP, CJ2M-CPU3[], and CS1W-EIP21.)
FINS
Communications
---
  FINS/UDP OK
FINS/TCP 16 connections max.
EtherNet/IP
Conformance Test
Conforms to A5.
EtherNet/IP
Interface
10Base-T/100Base-TX
Auto Negotiation/Fixed Setting



CJ2H-CPU65-EIP PLC Industrial Automation Units Omron 100K Steps Ethernet 1

CONTACT US AT ANY TIME

86-180-38289380
Room1504,6th Building,GaoSheng Times Square,No.798 zhongYiyi Road,Yuhua District,Changsha City,Hunan,China
Send your inquiry directly to us
