| Place of Origin | China/Japan |
| Brand Name | OMRON |
| Model Number | H7CC-AW |

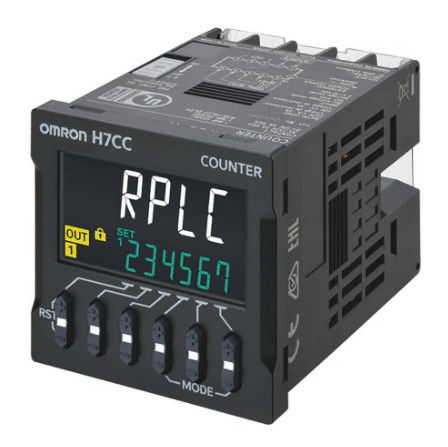

H7CC-AW Digital counter, screw terminals,48x48 mm,
SPST and SPDT relay output,100-240 VAC supply,12 VDC aux
Specifications
| Type | Pre-set counter |
| Size | 1/16 DIN (48 x 48 mm) |
| Counting functions | 1-stage counter, 1-stage counter with batch counter, 1-stage counter with total counter, 2-stage counter, Dual counter (addition/subtraction), Tachometer, Twin counter |
| Counting range | -99999 - 999999 |
| LCD backlight | With backlight |
| Number of digits | 6 |
| Body color | Black |
| Installation type | On-panel |
| Terminal | Screw |
| Output type | Relay |
| Relay output | 2 |
| Transistor output | 0 |
| Inputs | DC voltage, No-voltage |
| Supply voltage AC | 100-240 V |
| Speed | 10000 Hz |
| Product Width (unpacked) | 48 mm |
| Product Height (unpacked) | 48 mm |
| Product Depth (unpacked) | 78 mm |
