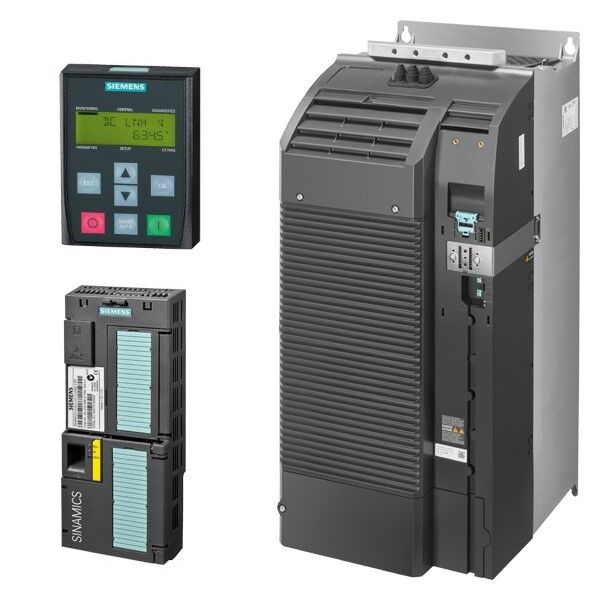

6SL3210-1PE31-5UL0| SIE-MENS |Power Module

• Model: PM240-2 Power Module (Part of the G120 modular system).
• Power Rating:
  • Low Overload (LO): 75 kW (100 HP).
  • High Overload (HO): 55 kW (75 HP).
• Input Voltage: 3-phase 380–480 V AC (+10/-20%), 47–63 Hz.
• Rated Output Current: 145 A (LO), 110 A (HO).
• Frame Size: FSF.
• Protection Rating: IP20.
• Filter: Without Integrated Line Filter.
• Braking: Built-in braking chopper (ideal for applications with dynamic braking requirements).
• Max Output Frequency: 550 Hz (V/f control), 200 Hz (vector control).
• Overload Capability (LO): 150% for 3s, 110% for 57s (within a 300s cycle).
• Overload Capability (HO): 200% for 3s, 150% for 57s (within a 300s cycle).
• Dimensions: 708 mm (H) x 305 mm (W) x 357 mm (D).
• Weight: 57.0 kg.
• Ambient Temperature: -20...+40 °C (LO), -20...+50 °C (HO).
• Max Motor Cable Length (Shielded): 300 m
