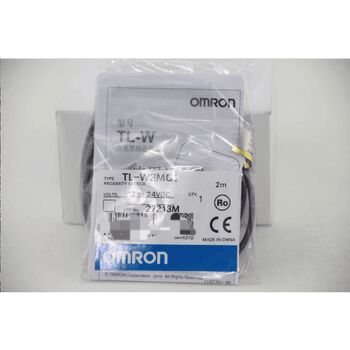

TL-W3MC1 2M BY OMC | Omron|  Flat Inductive Proximity Sensor

• Sensing Distance: 3 mm ((pm 10%))
• Output Configuration: NPN Open Collector
• Operation Mode: Normally Open (NO)
• Operating Voltage: 10 to 30 V DC
• Cable Length: 2 meters (pre-wired)
• Mounting Type: Non-shielded / Non-flush (Requires metal-free space around the sensing head)
• Target Object: Ferrous metals (e.g., iron, steel). Note: Detection range decreases for non-ferrous metals like copper or aluminum.
• Standard Sensing Object: Iron, 12 x 12 x 1 mm
• Switching Capacity / Max Current: 100 mA maximum load current
• Response Frequency: 600 Hz (average value)
• Enclosure Rating: IP67 (dustproof, waterproof, and oil-resistant)
• Housing Material: Durable ABS plastic
• Operating Temperature: -25°C to 70°C
• Protection Circuits: Reverse polarity protection and surge suppressor
