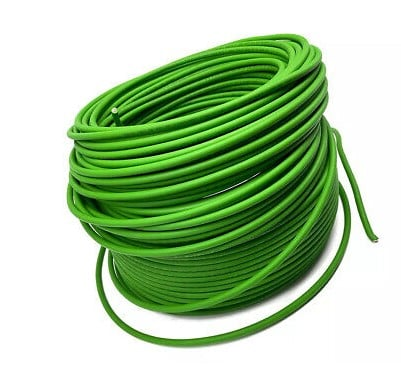

6XV1870-2E| Industrial Ethernet FC TP Standard Cable

• Cable Type: CAT6A, 8-wire (4x2xAWG22) twisted pair installation cable
• Conductor Material: Solid tin-plated copper (0.64mm diameter)
• Shielding: SF/UTP (Overlapped aluminum-clad foil + braided tin-plated copper wire screen)
• Outer Sheath: Green PVC, highly robust for industrial environments
• FastConnect (FC) Compatible: Yes, allowing for quick, tool-assisted stripping and termination
• Operating Temperature: -40°C to +80°C
• Maximum Loop Resistance: 118 Ω/km
• Impedance: 100 Ω (at 1 MHz to 100 MHz)
• Maximum Distance: 90 meters for 100BaseTX and 1000BaseT
• Minimum Bend Radius: 38 mm (single bend) / 80 mm (multiple bends)
